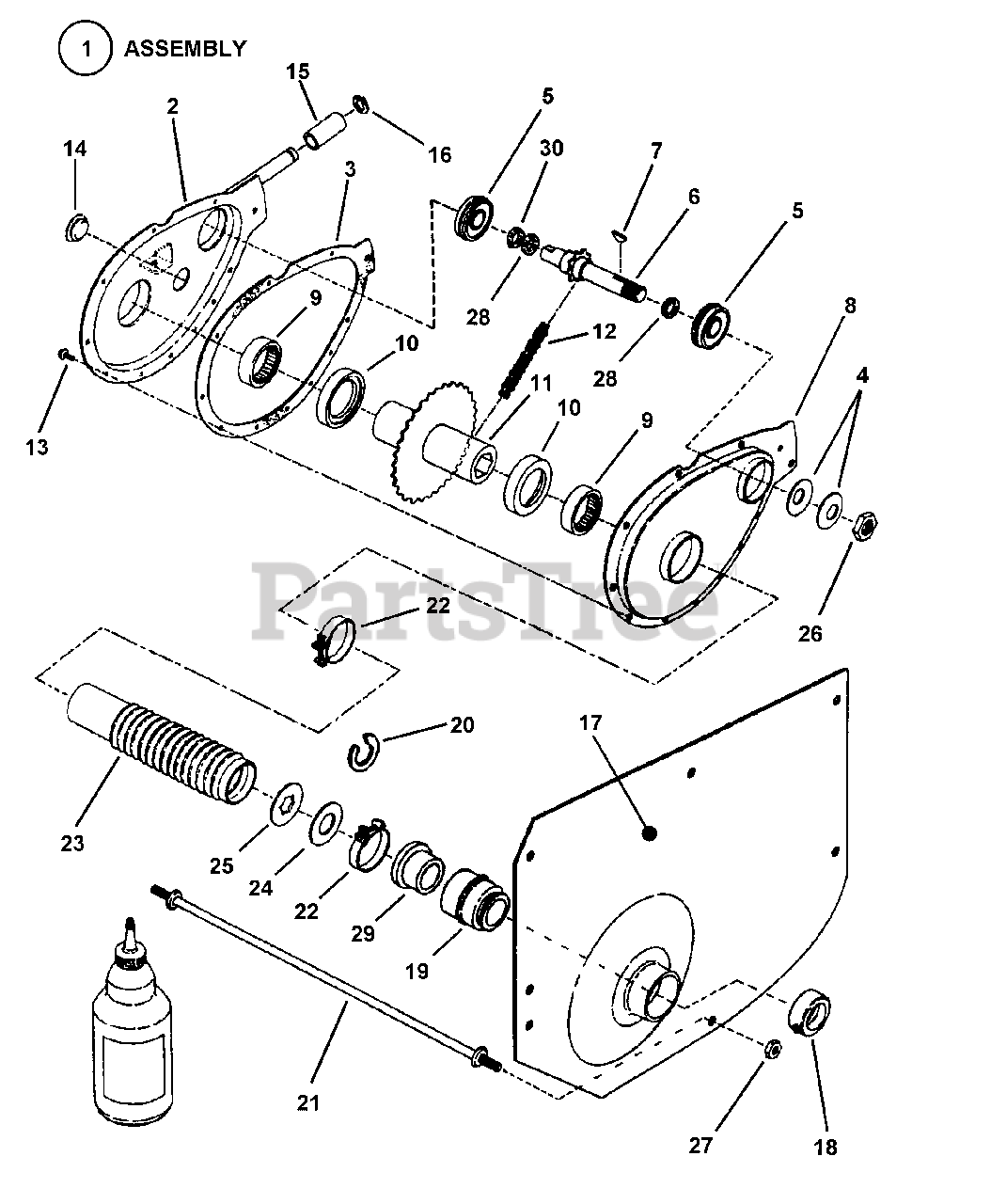

421620BVE (84586) - Snapper 42" Rear-Engine Riding Mower, 16hp Chain Case, L.H. Fender Parts Diagram

42" Rear-Engine Riding Mower, 16hp

Chain Case, L.H. Fender Parts Diagram

  • Title

1

Snapper 7052683

ASSEMBLY, Chain Case
(Superseded to 7052683YP)

Note: (Includes Items 2 Thru 13 & 15, 16, 31, 30)

$530.99

$

In Stock, only 1 left!

0

2

Snapper 7041136

CASE, Sprocket (Weldment)
(Superseded to 7041136YP)

$86.99

$

In Stock, only 1 left!

0

3

Snapper 7028761

GASKET, Case Cover
(Superseded to 7028761YP)

$24.99

$

In Stock, Qty 20+

0

4

Snapper 7011121

WASHER, Belleville
(Superseded to 7011121SM)

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7010756

BEARING, Ball
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

6

Snapper 7018963

SPROCKET & SHAFT
(Superseded to 7018963YP)

$96.99

$

In Stock, only 2 left!

0

7

Snapper 7010614

KEY, 1/8 x 5/8" Woodruff
(Superseded to 7010614YP)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7039778

COVER, Chain Case
(Superseded to 7039778YP)

$43.99

$

Usually ships in 2-12 days

0

9

Snapper 7010942

BEARING, Needle
(Superseded to 7010942YP)

$13.99

$

In Stock, Qty 20+

0

10

Snapper 7011086

WASHER, Nylon Thrust
(Superseded to 7011086YP)

$4.49

$

In Stock, Qty 14

0

11

Snapper 7040355

HUB & SPROCKET (Weldment)
(Superseded to 7040355YP)

$245.99

$

Usually ships in 2-12 days

0

12

Snapper 7010941

CHAIN, 46 Pitch (#35)
(Superseded to 7010941YP)

$14.99

$

In Stock, Qty 20+

0

13

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 11

0

14

Snapper 7011024

PLUG, Oil Fill & Check
(Superseded to 7011024YP)

$2.99

$

In Stock, Qty 20+

0

15

Snapper 7022785

ROLLER
(Superseded to 7022785YP)

$6.49

$

In Stock, only 1 left!

0

16

Snapper 7010776

RING, 1/2" External Retaining
(Superseded to 7010776YP)

$3.99

$

In Stock, only 1 left!

0

17

Snapper 7037958

FENDER, Left Hand (1.744" I.D. Hole)

$

$

Not available

17

Snapper 7051451

FENDER & BEARING ASSY, LH (Ball Bearing)

Note: (Includes Left Hand Fender P.N. 37958 & Bearing P.N. 14624)

$

$

Not available

18

Snapper 7014625

COLLAR, Lock
(Superseded to 7014625YP)

Note: (Includes P.N. 90776 Set Screw; 1/4-20 x 1 /4")

$11.99

$

In Stock, Qty 12

0

Snapper 7090776

Set Screw; 1/4-20 x 1/4" (Not shown but in lock collar)
(Superseded to 7090776YP)

$4.49

$

In Stock, Qty 15

0

19

Snapper 7014624

BEARING, Left Hand Fender
(Superseded to 7014624YP)

$

$

Not available

20

Snapper 7012271

WASHER, Shim
(Superseded to 7011071YP)

Note: (As required to achieve 5/16" gap)

$3.99

$

In Stock, Qty 20+

0

21

Snapper 7011070

ROD, Cross-Tie
(Superseded to 7011070YP)

$20.99

$

In Stock, only 3 left!

0

22

Snapper 7012332

CLAMP, Boot, 2"
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 15

0

23

Snapper 7075115

BOOT, Oil Seal
(Superseded to 7075115YP)

Note: Was 17084

$10.99

$

In Stock, Qty 20+

0

24

Snapper 7011071

WASHER, Thrust Nylon
(Superseded to 7011071YP)

$3.99

$

In Stock, Qty 20+

0

25

Snapper 7011072

WASHER, Thrust
(Superseded to 7011072YP)

$5.99

$

In Stock, Qty 20+

0

26

Snapper 7091505

NUT, 5/8-18 Hex Nyloc
(Superseded to 703432)

$

$

Not available

27

Snapper 7010969

NUT, 5/16-24 Hex Flange Lock
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

28

Snapper 7019260

O-RING
(Superseded to 7019260YP)

$3.49

$

In Stock, Qty 20+

0

29

Snapper 7023447

SPACER
(Superseded to 7023447YP)

$4.49

$

In Stock, Qty 20+

0

30

Snapper 7027981

WASHER, Wave
(Superseded to 7027981YP)

$4.49

$

In Stock, Qty 9

0

Snapper 7061017

GREASE, SNAPPER Transmission
(Superseded to 7061017YP)

Note: (Use 2 oz. maximum)

$

$

Not available
