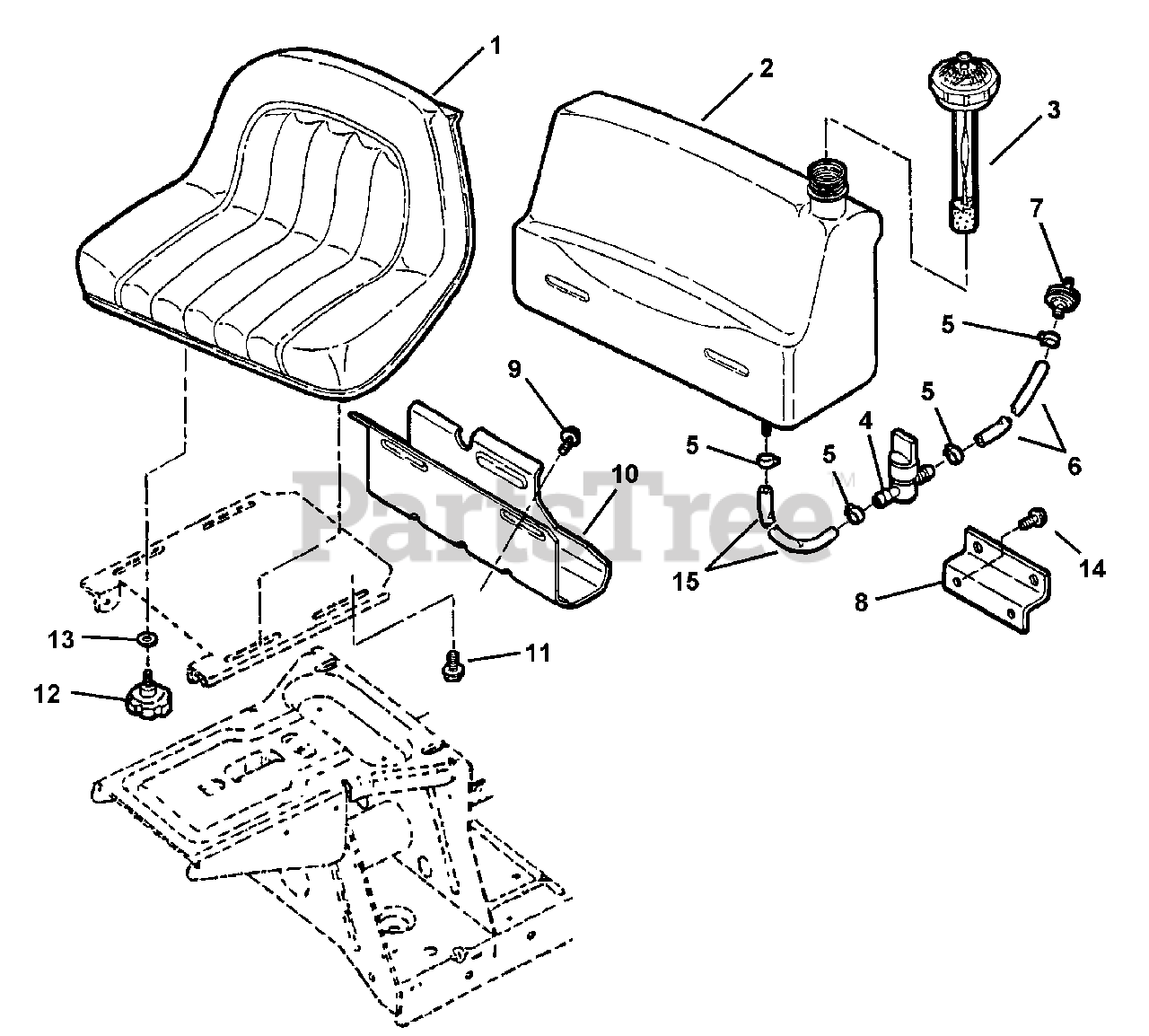

421618BVE (84385) - Snapper 42" Rear-Engine Riding Mower, 16hp Fuel Tank & Operator's Seat Parts Diagram

42" Rear-Engine Riding Mower, 16hp

Fuel Tank & Operator's Seat Parts Diagram

  • Title

1

Snapper 7028650

SEAT, Operator (DeLuxe Back)
(Superseded to 7028650YP)

Note: was 7028595

$262.99

$

Usually ships in 2-12 days

0

2

Snapper 7052435

ASSEMBLY, Fuel Tank
(Superseded to 7052435YP)

Note: (Incl item 3)

$234.99

$

Usually ships in 2-12 days

0

3

Snapper 7019377

CAP, Fuel Tank (With Gauge)
(Superseded to 7019377YP)

$34.99

$

Usually ships in 2-12 days

0

4

Snapper 7016325

VALVE, Fuel Shut-Off
(Superseded to 7016325SM)

$19.99

$

In Stock, Qty 11

0

5

Snapper 7029900

CLAMP, Fuel Line
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 20+

0

6

Snapper 7073240

HOSE, Fuel (5" Long)
(Superseded to 7073240SM)

Note: Was 32038

$24.99

$

Usually ships in 2-12 days

0

7

Snapper 7014359

FILTER, Fuel (In-Line)
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

8

Snapper 7036549

BRACKET, Tank
(Superseded to 7036549YP)

Note: (For Briggs 16 HP)

$35.99

$

Usually ships in 2-12 days

0

9

Snapper 7091542

SCREW, 5/16-18 x 5/8" Self-Tap
(Superseded to 703932)

$4.99

$

Usually ships in 2-12 days

0

10

Snapper 7033377

BRACKET, Fuel Tank (Rear)
(Superseded to 7033377BMYP)

$

$

Not available

11

Snapper 7091038

BOLT, 5/16-18 x 1/2" Hex Fl Lock
(Superseded to 7091038YP)

$4.49

$

In Stock, Qty 9

0

12

Snapper 7028659

KNOB, Seat Adjusting
(Superseded to 7028659YP)

$14.99

$

Usually ships in 2-12 days

0

13

Snapper 7013849

SPACER, 5/16"
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 7090858

SCREW, 5/16-18 x 1/2" Hex Washer Head, Self-Tap
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

15

Snapper 7024247

HOSE, Fuel (24-1/4" Long)
(Superseded to 841589)

$38.99

$

Usually ships in 2-12 days

0
