421618BVE (84264) - Snapper 42" Rear-Engine Riding Mower, 16hp Drive Disc Assembly Parts Diagram

42" Rear-Engine Riding Mower, 16hp

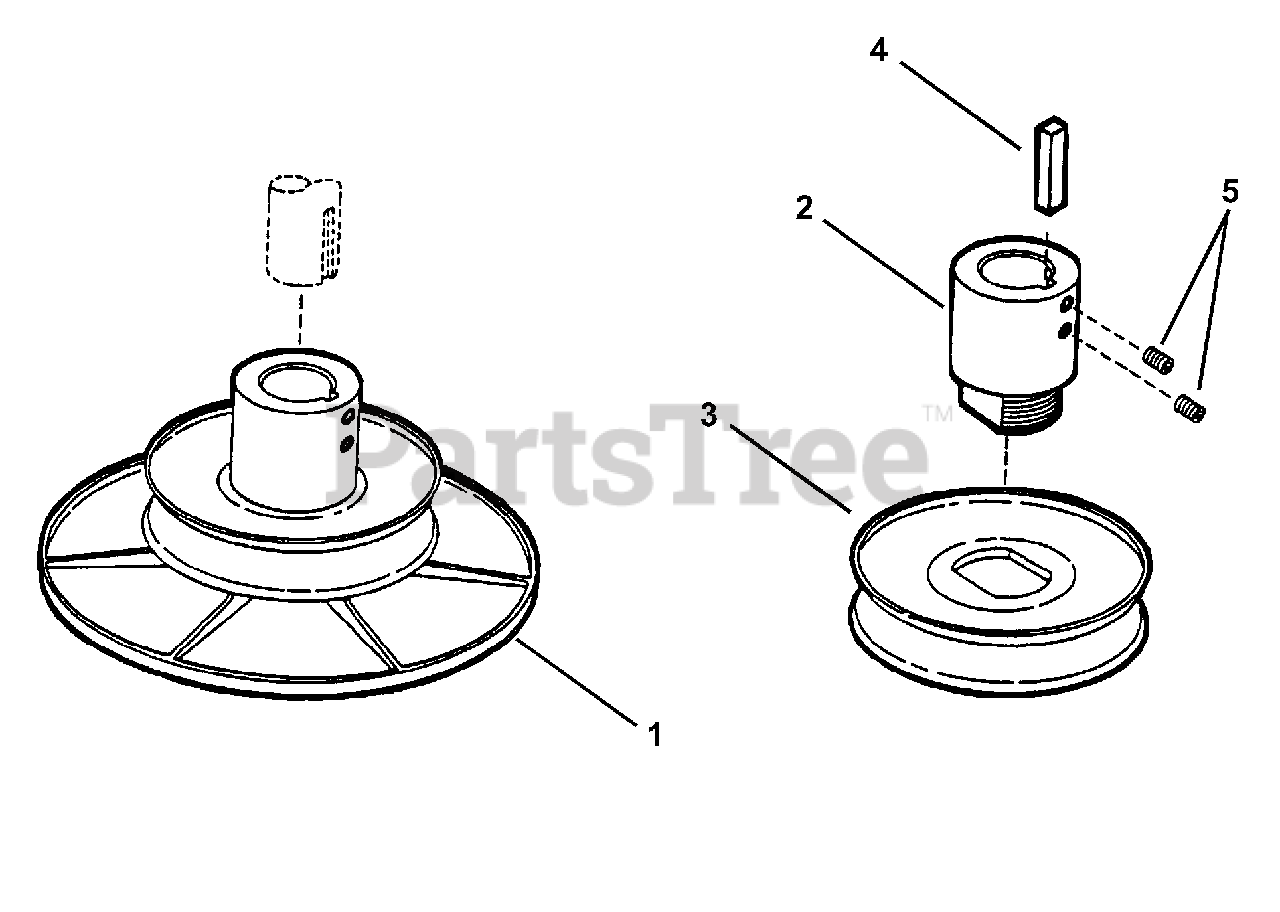

Drive Disc Assembly Parts Diagram

  • Title
1

Snapper 7072658

ASSEMBLY, Drive Disc - Steel (5.75" OD Pulley)
(Superseded to 7072658YP)

Note: Was 53709

$125.99

$

In Stock, only 2 left!

0

2

Snapper 7029112

HUB

Note: Was 11001

$

$

Not available

3

Snapper 7028779

PULLEY, Drive (5.75" O.D.)
(Superseded to 7028779YP)

$65.99

$

In Stock, only 3 left!

0

4

Snapper 7010210

KEY (1/4"sq. X 2")
(Superseded to 703890)

$4.99

$

In Stock, Qty 6

0

5

Snapper 7090132

SCREW, 3/8-16 x 3/8" Set
(Superseded to 7090132YP)

$3.49

$

In Stock, only 2 left!

0
