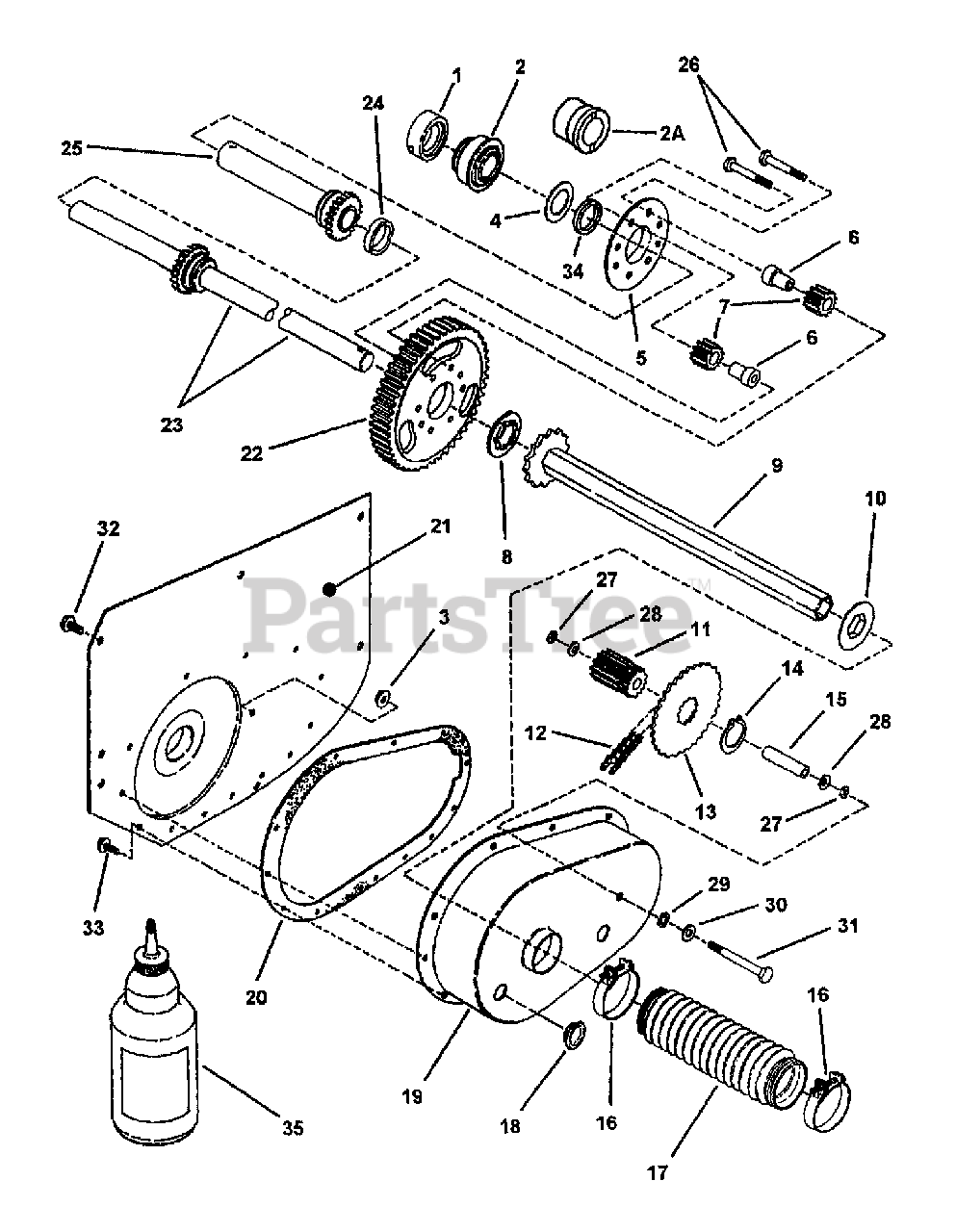

421618BVE (84264) - Snapper 42" Rear-Engine Riding Mower, 16hp Differential, R.H. Fender Parts Diagram

42" Rear-Engine Riding Mower, 16hp

Differential, R.H. Fender Parts Diagram

  • Title

1

Snapper 7014401

COLLAR, Lock (Includes P/N 90201, 5/16-18 x 5/16" Set Screw)
(Superseded to 7014401YP)

$26.99

$

Usually ships in 2-12 days

0

2

Snapper 7012296

BEARING-BALL, Axle (1.215" ID x 2.5" OD) (R. H. Fender)
(Superseded to 7012296YP)

$14.99

$

In Stock, only 4 left!

0

2A

Snapper 7054372

BEARING-DX, Axle (1.29" ID x 1.628" OD) (R. H. Fender)
(Superseded to 7054372YP)

Note: includes 1-1/8" I.D. (DX) bearing

$

$

Not available

3

Snapper 7010969

NUT, 5/16-24 Flange Lock (Large)
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

4

Snapper 7031079

WASHER, Thrust
(Superseded to 7031079YP)

$6.99

$

In Stock, Qty 20+

0

5

Snapper 7038067

PLATE, Differential (8 holes)
(Superseded to 7038067YP)

Note: Note: 4 holes offset - align properly to prevent binding.

$

$

Not available

6

Snapper 7022115

SPACER, Pinion
(Superseded to 7022115YP)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 7021127

GEAR, Differential Pinion (12T 12P)
(Superseded to 7021127YP)

$23.99

$

In Stock, only 3 left!

0

8

Snapper 7011072

WASHER, Thrust
(Superseded to 7011072YP)

$5.99

$

In Stock, Qty 20+

0

9

Snapper 7051584

* ASSEMBLY, Drive Hex Tube
(Superseded to 7051584YP)

$92.99

$

In Stock, only 4 left!

0

10

Snapper 7010988

WASHER, Nylon
(Superseded to 7010988YP)

$4.49

$

In Stock, Qty 15

0

11

Snapper 7010964

GEAR, 11 Tooth, 10 Pitch
(Superseded to 7200128YP)

$14.99

$

In Stock, only 1 left!

0

12

Snapper 7010941

CHAIN, 46 Pitch (#35 Endless)
(Superseded to 7010941YP)

$14.99

$

In Stock, Qty 20+

0

13

Snapper 7021129

SPROCKET, 34T, 3/8P
(Superseded to 7021129YP)

$20.99

$

In Stock, only 2 left!

0

14

Snapper 7010965

RING, 1-3/16" External Retaining
(Superseded to 7010965YP)

$4.49

$

In Stock, Qty 6

0

15

Snapper 7021128

SPACER, Differential Case
(Superseded to 7021128YP)

$7.49

$

In Stock, only 1 left!

0

16

Snapper 7012332

BOOT CLAMP, 2"
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 15

0

17

Snapper 7075115

BOOT, Axle
(Superseded to 7075115YP)

$10.99

$

In Stock, Qty 20+

0

18

Snapper 7011024

PLUG, 1/2" Cup Insert
(Superseded to 7011024YP)

$2.99

$

In Stock, Qty 20+

0

19

Snapper 7037279

CASE, Transmission
(Superseded to 7037279YP)

$79.99

$

In Stock, only 1 left!

0

20

Snapper 7028762

GASKET, Transmission Case
(Superseded to 7028762YP)

$24.99

$

In Stock, Qty 20+

0

21

Snapper 7037280

FENDER, Right Hand (1.62" Dia. Hole)
(Superseded to 7301301YP)

Note: use with 7054372 DX-Bearing

$149.99

$

In Stock, only 1 left!

0

21

Snapper 7037957

FENDER, Right Hand (2.498" Dia. Hole)

Note: use with 7012296 ball bearing

$

$

Not available

22

Snapper 7021158

GEAR, 63 Tooth 10 Pitch (4 Hole)
(Superseded to 7021158YP)

Note: depending on model

$109.99

$

In Stock, Qty 15

0

22

Snapper 7027644

GEAR, 63 Tooth 10 Pitch (8 Hole)
(Superseded to 7027644YP)

Note: depending on model

$

$

Not available

23

Snapper 7047763

ASSEMBLY, Long Axle (Includes Gear)
(Superseded to 7075479YP)

$136.99

$

In Stock, Qty 12

0

24

Snapper 7074431

SPACER, Differential Case
(Superseded to 7074431YP)

$4.49

$

In Stock, Qty 20+

0

25

Snapper 7057398

ASSEMBLY, Short Axle, 23T (Includes Gear)
(Superseded to 7600137YP)

$95.99

$

In Stock, only 2 left!

0

26

Snapper 7012333

BOLT, 5/16-24 x 1-5/8" Hex Special Lock (Vibresist)
(Superseded to 7012333YP)

Note: one time use only

$4.99

$

In Stock, only 3 left!

0

27

Snapper 7011156

5/16" O-RING
(Superseded to 7011156YP)

$4.49

$

In Stock, Qty 20+

0

28

Snapper 7011782

WASHER, 5/16" Belleville
(Superseded to 7011782YP)

$4.49

$

In Stock, Qty 20+

0

29

Snapper 7090395

WASHER, 5/16" External Tooth Lock
(Superseded to 703138)

$3.99

$

In Stock, Qty 7

0

30

Snapper 7090188

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

31

Snapper 7011042

SCREW, 5/16-24 x 2-5/8" Hex Head Cap
(Superseded to 7011042YP)

$4.49

$

In Stock, Qty 7

0

32

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

33

Snapper 7090362

SCREW, 1/4-20 x 5/8" Hex Washer Head Self-Tap
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

34

Snapper 7032107

SPACER, Short Axle (1.30" ID, .145" thick)

$10.99

$

In Stock, Qty 8

0

35

Snapper 7061017

GREASE, "00" Transmission (24 oz. Required)
(Superseded to 7061017YP)

$

$

Not available

--

Snapper 7060411

KIT, Differential (4 Pinion)
(Superseded to 7600229YP)

$1049.99

$

Usually ships in 2-12 days

0

--

Snapper 7060662

KIT, Differential (8 Pinion w/DX Bearing)
(Superseded to 7600229YP)

Note: Early versions contained ball bearing

$1049.99

$

Usually ships in 2-12 days

0

--

Snapper 7075479

KIT, Long & Short Axle (Includes items 23, 24, & 25)
(Superseded to 7075479YP)

$136.99

$

In Stock, Qty 12

0
