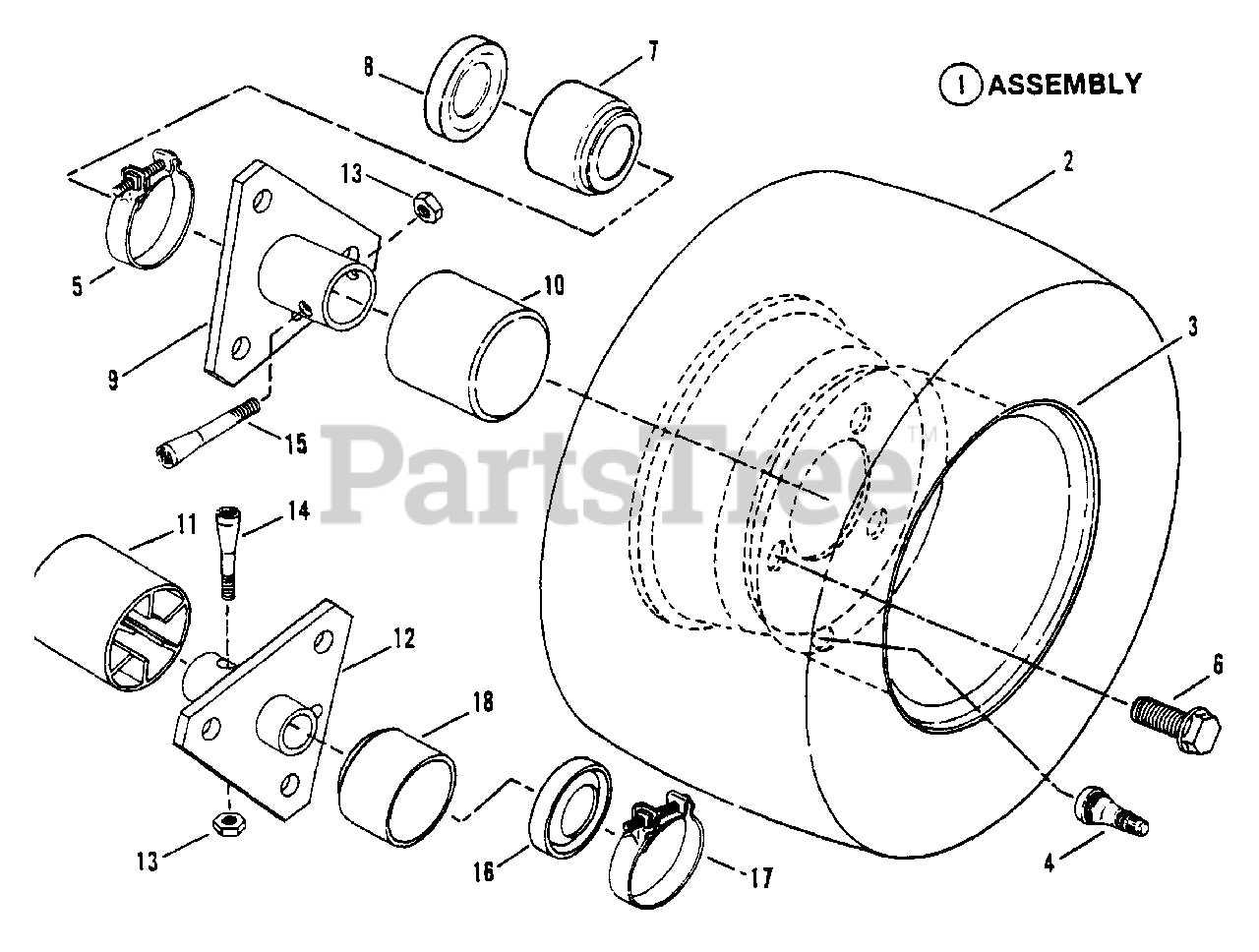

421615BVE (80872) - Snapper 42" Rear-Engine Riding Mower, 16hp Wheels-Rear Parts Diagram

42" Rear-Engine Riding Mower, 16hp

Wheels-Rear Parts Diagram

  • Title

1

Snapper 7022584

ASSEMBLY, Rear Tire 8 Rim
(Superseded to 7022584YP)

Note: Was 52671 (Now 22584 + 12163)(Includes 2, 3, & 4)(42" Models)

$110.99

$

In Stock, only 1 left!

0

2

Snapper 7022584

TIRE, Ext Wide, 16/7.50 x 8
(Superseded to 7022584YP)

$110.99

$

In Stock, only 1 left!

0

3

Snapper 7012163

RIM, Ext Wide,
(Superseded to 7012163YP)

Note: Was 17147 (For 16/7.50 x 8 Tire)

$121.99

$

Usually ships in 2-12 days

0

4

Snapper 7012234

VALVE, Air (Snap-in)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7014542

CLAMP, Right Hand

$

$

Not available

6

Snapper 7091502

BOLT, 1/2-20 x 3/4" Lug
(Superseded to 703431)

$4.99

$

In Stock, Qty 20+

0

7

Snapper 7014541

BOOT, Right Hand
(Superseded to 7014541YP)

$

$

Not available

8

Snapper 7011817

SEAL, Oil
(Superseded to 7011817YP)

$5.49

$

In Stock, Qty 20+

0

9

Snapper 7040433

HUB, Rear Wheel (Right Hand)
(Superseded to 7040433YP)

$37.99

$

In Stock, Qty 14

0

10

Snapper 7023895

CAP, Hub
(Superseded to 7023895YP)

$6.99

$

In Stock, Qty 8

0

11

Snapper 7023522

CAP, Hub (Left Hand)
(Superseded to 7023522YP)

$6.49

$

In Stock, only 2 left!

0

12

Snapper 7040434

HUB, Rear Wheel
(Superseded to 7040434YP)

$

$

Not available

13

Snapper 7092062

NUT, 5/16-24 Hex Center Lock
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

14

Snapper 7011035

BOLT, 5/16-24 x 1-5/8" Tapered (Left Hand)
(Superseded to 7011035YP)

$4.99

$

In Stock, Qty 20+

0

15

Snapper 7011013

BOLT, 5/16-24 x 2" Tapered (Right Hand)
(Superseded to 7011013YP)

$6.49

$

In Stock, Qty 20+

0

16

Snapper 7014662

SEAL, Oil (Left Hand)
(Superseded to 7014662YP)

$9.49

$

In Stock, only 1 left!

0

17

Snapper 7012332

CLAMP, (Left Hand)
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 15

0

18

Snapper 7014658

BOOT, (Left Hand)
(Superseded to 7014658YP)

$7.99

$

In Stock, Qty 20+

0
