421615BVE (80872) - Snapper 42" Rear-Engine Riding Mower, 16hp Throttle Control Parts Diagram

42" Rear-Engine Riding Mower, 16hp

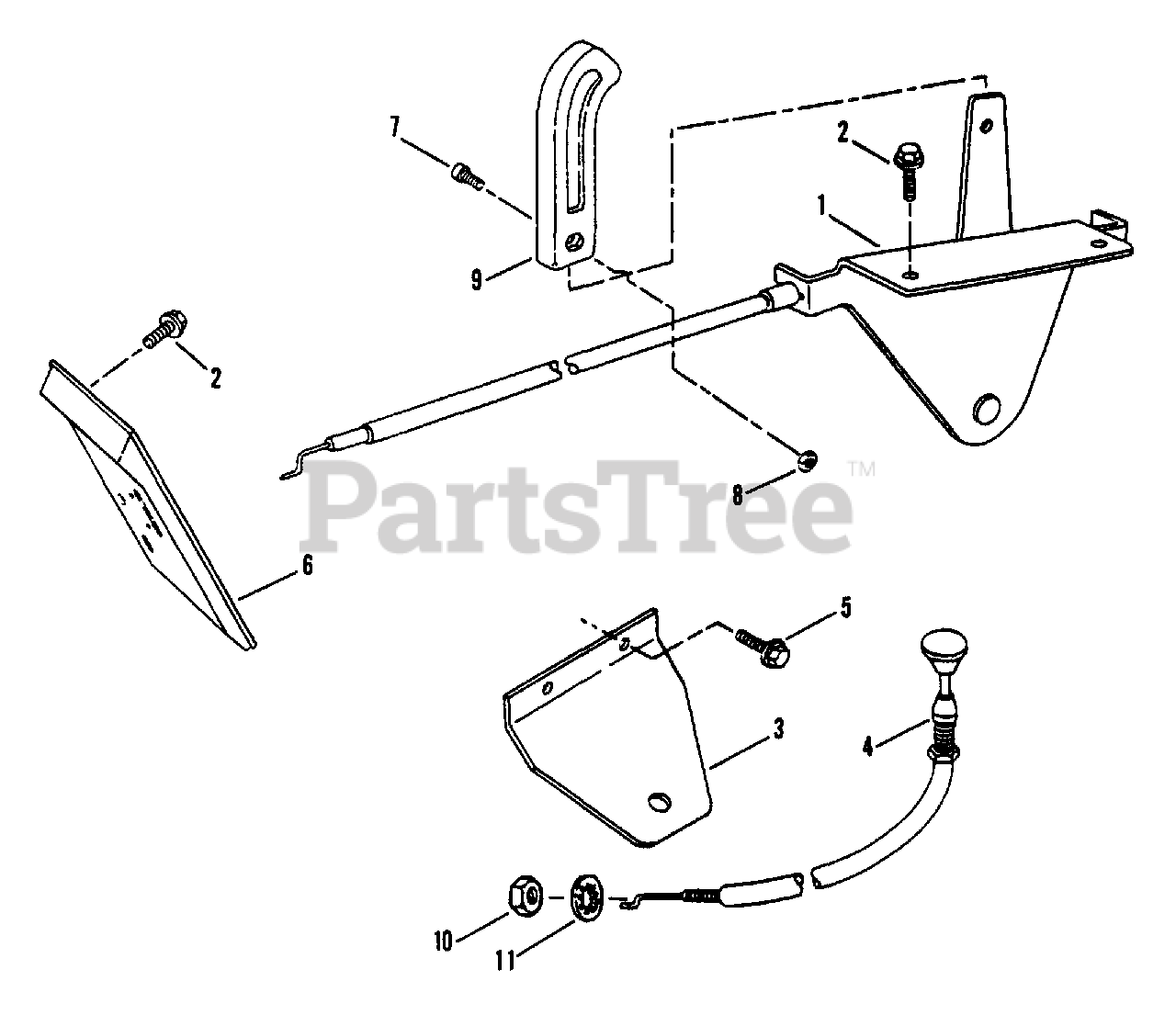

Throttle Control Parts Diagram

  • Title

1

Snapper 7024242

CONTROL, Throttle (Briggs Engines)
(Superseded to 7024242YP)

$

$

Not available

Snapper 7022483

CONTROL, Throttle (Tecumseh)
(Superseded to 7022483YP)

$35.99

$

In Stock, only 2 left!

0

2

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 11

0

3

Snapper 7034855

PLATE, Throttle Control

$

$

Currently unavailable

4

Snapper 7024185

CONTROL, Choke 36"
(Superseded to 7024185YP)

$31.99

$

In Stock, only 1 left!

0

5

Snapper 7091122

SCREW, 1/4-20 x 5/8" Self-Tapping
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 11

0

6

Snapper 7024233

COVER, Dash Panel (Briggs 16)
(Superseded to 7024233YP)

$16.99

$

Usually ships in 2-12 days

0

Snapper 7023665

COVER, Dash Panel (Tecumseh 16)

$

$

Not available

7

Snapper 7091017

SCREW, #8-32 x 3/8" Cross-Recess, Fillister Head
(Superseded to 7091017YP)

$3.99

$

In Stock, only 4 left!

0

8

Snapper 7091018

NUT, #8-32 Hex
(Superseded to 7091018YP)

$3.99

$

In Stock, Qty 9

0

9

Snapper 7023655

KNOB, Throttle Control
(Superseded to 7023655YP)

$

$

Not available

10

Snapper 7091630

NUT, 3/8-24 Hex
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, only 2 left!

0

11

Snapper 7090390

WASHER, 3/8 Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0
