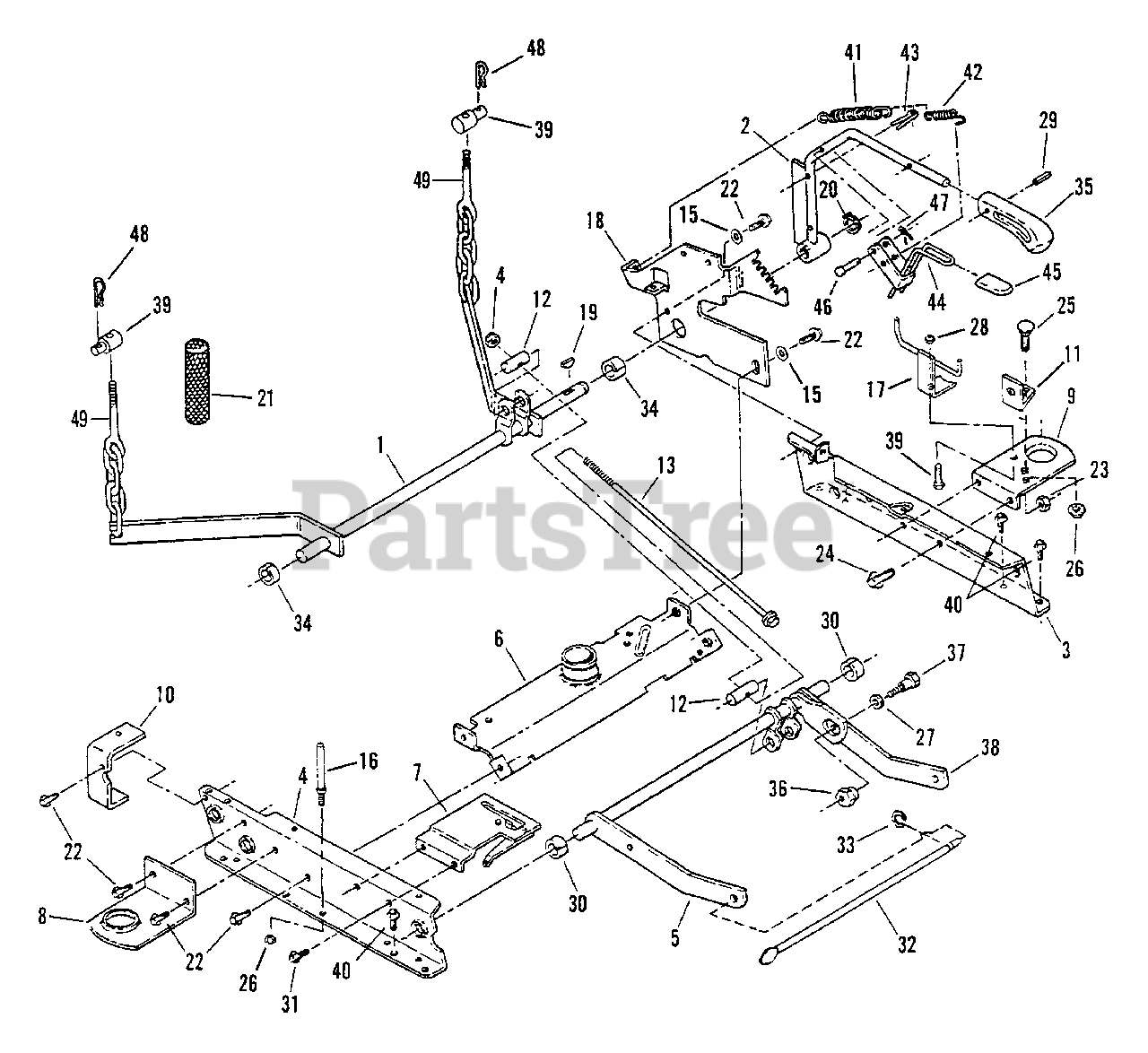

421614BVE (80663) - Snapper 42" Rear-Engine Riding Mower, 16hp 42" Rails, Lift Arms, Cam Lift Parts Diagram

42" Rear-Engine Riding Mower, 16hp

42" Rails, Lift Arms, Cam Lift Parts Diagram

  • Title

1

Snapper 7041248

ASSEMBLY, Rear Lift Arm
(Superseded to 7041248YP)

$188.99

$

Usually ships in 2-12 days

0

2

Snapper 7053300

LEVER, Height Adjustment Lift
(Superseded to 7053300YP)

$219.99

$

Usually ships in 2-12 days

0

3

Snapper 7034339

RAIL, Left Half
(Superseded to 7063062YP)

$83.99

$

Usually ships in 2-12 days

0

4

Snapper 7036430

RAIL, Right Half
(Superseded to 7036430YP)

Note: Was 33766

$54.99

$

In Stock, only 1 left!

0

5

Snapper 7041578

STRUCTURE, Front Lift Arm

$

$

Not available

6

Snapper 7040502

BRACE, Weldment
(Superseded to 7040502YP)

$81.99

$

Usually ships in 2-12 days

0

7

Snapper 7058969

ASSEMBLY, Clutch Plate
(Superseded to 7600140YP)

Note: Was 51310

$41.99

$

In Stock, only 2 left!

0

8

Snapper 7034071

SPINDLE, Brace (Right)
(Superseded to 7034071YP)

$39.99

$

Usually ships in 2-12 days

0

9

Snapper 7038096

SPINDLE, Brace (Left)
(Superseded to 7038096YP)

$16.99

$

Usually ships in 2-12 days

0

10

Snapper 7034089

BRACKET, Cover
(Superseded to 7034089YP)

$37.99

$

Usually ships in 2-12 days

0

11

Snapper 7032334

ANCHOR
(Superseded to 7032334YP)

$29.99

$

Usually ships in 2-12 days

0

12

Snapper 7022082

CLEVIS, Timing Rod
(Superseded to 7022082YP)

$18.99

$

Usually ships in 2-12 days

0

13

Snapper 7027944

ROD, Leveling (3/8-24 thread)

$4.99

$

In Stock, only 1 left!

0

14

Snapper 7090499

NUT, 3/8-24 Hex Top Lock
(Superseded to 7090499YP)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7090390

WASHER, 3/8 Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

16

Snapper 7028252

GUIDE, Belt (Rod)
(Superseded to 7028252YP)

$45.99

$

Usually ships in 2-12 days

0

17

Snapper 7041637

GUIDE, Belt (Structure)
(Superseded to 7041637YP)

$119.99

$

Usually ships in 2-12 days

0

18

Snapper 7034069

QUADRANT, Lift Lever

$

$

Not available

19

Snapper 7013861

KEY, 3/16 x 7/8" Woodruff
(Superseded to 7013861YP)

$3.49

$

In Stock, Qty 6

0

20

Snapper 7010746

RING, 3/4 Retaining
(Superseded to 703975)

Note: Was 27920

$3.99

$

In Stock, Qty 20+

0

21

Snapper 7028021

COVER, Chain

$

$

Not available

22

Snapper 7090815

SCREW, 3/8-16 x 3/4" Self-Tapping
(Superseded to 703950)

$5.49

$

In Stock, only 3 left!

0

23

Snapper 7091585

NUT, 3/8-24 Hex Lock
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 4 left!

0

24

Snapper 7090134

SCREW, 3/8-24 x 3/4" Hex Cap
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

25

Snapper 7090316

BOLT, 5/16-18 x 3/4" Carriage
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

26

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

27

Snapper 7090390

WASHER, 3/8 Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

28

Snapper 7091619

NUT, 3/8-24 Hex Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

29

Snapper 7090844

PIN, 3/16 x 3/4" Roll
(Superseded to 2816169SM)

$4.49

$

Usually ships in 2-12 days

0

30

Snapper 7012067

RING, Red
(Superseded to 7012067YP)

$4.49

$

In Stock, only 2 left!

0

31

Snapper 7090858

SCREW, 5/16-18 x 1/2" Self-Tapping
(Superseded to 703985)

$4.49

$

In Stock, only 4 left!

0

32

Snapper 7022717

SUPPORT, Rod 7/16"
(Superseded to 7022717YP)

$48.99

$

Usually ships in 2-12 days

0

33

Snapper 7017847

RING, Retaining
(Superseded to 7017847YP)

$4.49

$

Usually ships in 2-12 days

0

34

Snapper 7012068

RING, Blue
(Superseded to 7012068YP)

$5.99

$

Usually ships in 2-12 days

0

35

Snapper 7023658

GRIP, Height Adjustment Lever
(Superseded to 7023658YP)

$5.49

$

In Stock, only 1 left!

0

36

Snapper 7015447

ECCENTRIC, Leveling
(Superseded to 7015447YP)

$22.99

$

Usually ships in 2-12 days

0

37

Snapper 7015495

BOLT, 3/8-24 x 3/4" Shoulder
(Superseded to 7015495YP)

$

$

Not available

38

Snapper 7032997

ARM, Front Lift (Left Side)
(Superseded to 7032997YP)

$16.99

$

In Stock, only 1 left!

0

39

Snapper 7028200

SWIVEL, 3/8-16
(Superseded to 7028200SM)

$13.99

$

In Stock, Qty 5

0

40

Snapper 7090606

BOLT, 5/16-18 x 5/8" Hex Flange Lock
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

41

Snapper 7024914

SPRING, Extension
(Superseded to 7024914YP)

$14.99

$

In Stock, only 1 left!

0

42

Snapper 7026292

SPRING, Latch
(Superseded to 7026292YP)

$11.99

$

In Stock, only 4 left!

0

43

Snapper 7091515

PIN, 3/16 x 1-1/2" Cotter
(Superseded to 703983)

Note: Was 90753

$4.49

$

In Stock, Qty 13

0

44

Snapper 7041581

LATCH
(Superseded to 7041581YP)

$40.99

$

In Stock, only 1 left!

0

45

Snapper 7026286

GRIP, Lift Latch
(Superseded to 7026286YP)

$2.99

$

Usually ships in 2-12 days

0

46

Snapper 7011021

PIN, 1/4 x 1-1/4" Clevis
(Superseded to 7023914YP)

$

$

Not available

47

Snapper 7090360

PIN, 1/16 x 3/4" Cotter

$3.99

$

Usually ships in 2-12 days

0

48

Snapper 7091503

PIN, 3/32 x 1-1/2" Hair Cotter
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

49

Snapper 7028728

EYE BOLT
(Superseded to 703827)

Note: Was 28502

$10.99

$

Usually ships in 2-12 days

0
