421613BVE1 (80556) - Snapper 42" Rear-Engine Riding Mower, 16hp 42" Deck Cover, Blade Brake Parts Diagram

42" Rear-Engine Riding Mower, 16hp

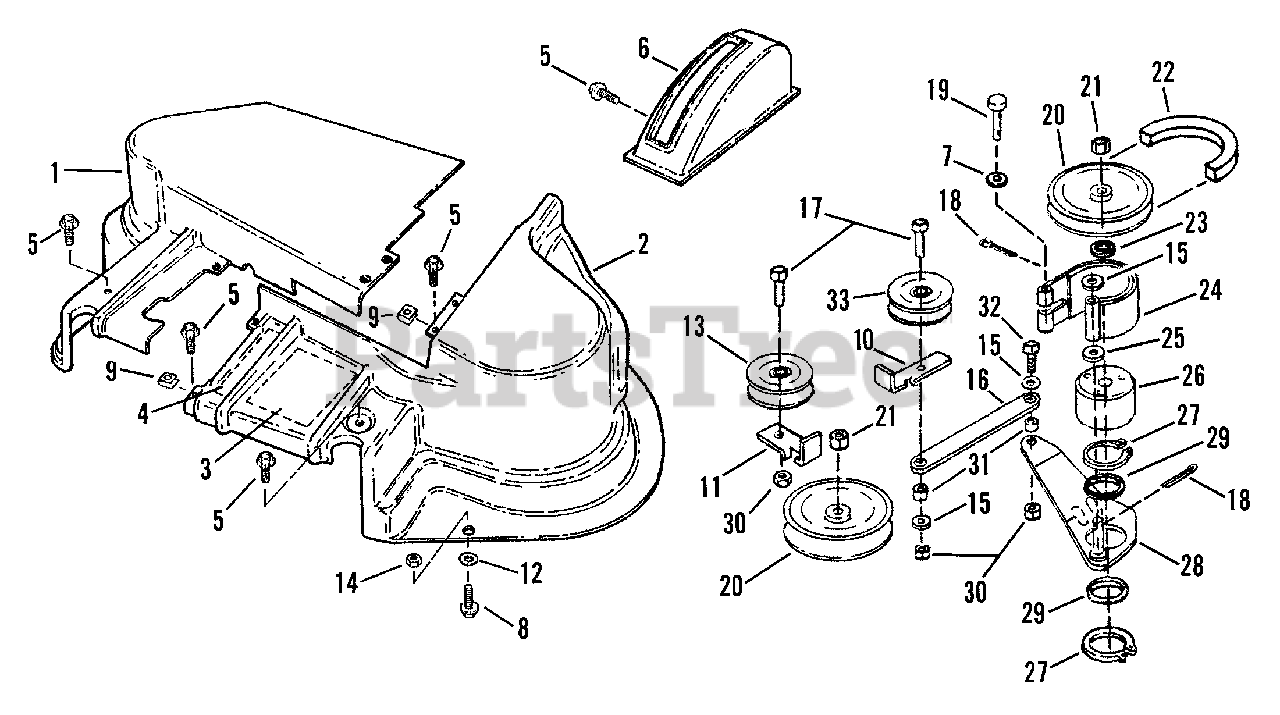

42" Deck Cover, Blade Brake Parts Diagram

  • Title

1

Snapper 7027951

ASSEMBLY, 42" Cover (Right Half)
(Superseded to 7027951YP)

$240.99

$

In Stock, only 1 left!

0

2

Snapper 7053309

ASSEMBLY, 42" Cover (Left Half)
(Superseded to 7053309YP)

Note: (Includes Items 3 & 4)

$239.99

$

Usually ships in 2-12 days

0

3

Snapper 7017876

DECAL, Brake Operation

$

$

Not available

4

Snapper 7014731

DECAL, Blade (ON-OFF)
(Superseded to 7014731YP)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7090741

SCREW, 1/4-20 x 5/8" Self-Tapping
(Superseded to 703054)

Note: Was 91016

$4.49

$

In Stock, Qty 5

0

6

Snapper 7027921

COVER, Lift Quadrant

$

$

Not available

7

Snapper 7091294

WASHER, 1/4 Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7091547

BOLT, 3/8-16 x 3/4" Short Neck Carriage
(Superseded to 703448)

Note: Was 90850

$4.49

$

In Stock, Qty 20+

0

9

Snapper 7091261

NUT, 1/4-20 Tinnerman

$

$

Not available

10

Snapper 7032111

RESTRICTOR
(Superseded to 7032111YP)

$6.99

$

In Stock, Qty 11

0

11

Snapper 7032368

GUIDE, Belt

$

$

Not available

12

Snapper 7013847

RETAINER, 3/8 Bolt
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

13

Snapper 7018651

PULLEY, Idler
(Superseded to 7018651YP)

$42.99

$

In Stock, only 1 left!

0

14

Snapper 7091619

NUT, 3/8-16 Hex Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

15

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7032333

LINK

$

$

Not available

17

Snapper 7090161

SCREW, 3/8-24 x 1-3/4" Hex Head Cap
(Superseded to 703866)

$4.49

$

In Stock, only 1 left!

0

18

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

19

Snapper 7014304

PIN, 1/4 x 1-5/8" Clevis
(Superseded to 7014304YP)

$4.49

$

Usually ships in 2-12 days

0

20

Snapper 7014532

PULLEY, 5" O.D.
(Superseded to 7014532YP)

$53.99

$

In Stock, only 3 left!

0

21

Snapper 7090820

NUT, 3/4-16 Hex Jam Lock
(Superseded to 7090820YP)

$5.99

$

In Stock, only 1 left!

0

22

Snapper 7024497

BELT, AA105
(Superseded to 7024497YP)

$56.99

$

In Stock, only 1 left!

0

23

Snapper 7010935

WASHER, 3/4 Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

24

Snapper 7052886

ASSEMBLY, Brake Band
(Superseded to 7503086YP)

$35.99

$

In Stock, only 1 left!

0

25

Snapper 7014314

SPACER
(Superseded to 7014314YP)

$4.99

$

In Stock, only 1 left!

0

26

Snapper 7032169

BRAKE DRUM
(Superseded to 7035378YP)

$11.99

$

In Stock, only 2 left!

0

27

Snapper 7010740

RING, 2" External Retaining
(Superseded to 7010740YP)

$5.49

$

In Stock, only 3 left!

0

28

Snapper 7047862

ASSEMBLY, Brake Arm
(Superseded to 7047862YP)

$82.99

$

Usually ships in 2-12 days

0

29

Snapper 7014795

WASHER, 2" I.D.

$

$

Not available

30

Snapper 7090289

NUT, 3/8-24 Hex Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

31

Snapper 7014527

SPACER
(Superseded to 7014527YP)

$4.49

$

Usually ships in 2-12 days

0

32

Snapper 7090292

SCREW, 3/8-24 x 3/4" Hex Head Cap

$2.99

$

In Stock, only 3 left!

0

33

Snapper 7011029

PULLEY, Idler
(Superseded to 7011029YP)

$23.99

$

In Stock, Qty 5

0
