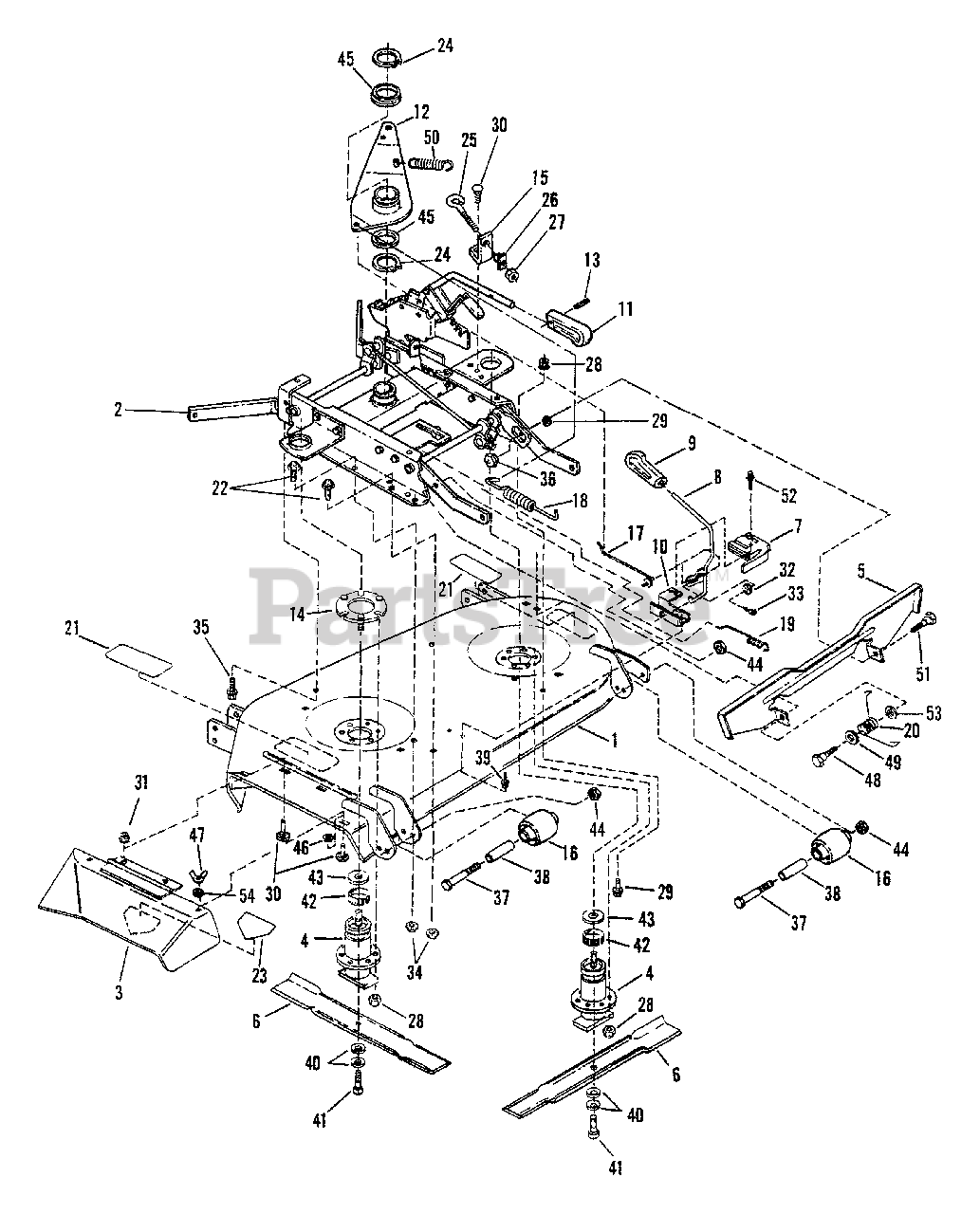

421613BVE1 (80556) - Snapper 42" Rear-Engine Riding Mower, 16hp 42" Cutting Decks, Deflectors Parts Diagram

42" Rear-Engine Riding Mower, 16hp

42" Cutting Decks, Deflectors Parts Diagram

  • Title

1

Snapper 7051916

ASSEMBLY, Deck

Note: Was 41582 (See Note Below For Complete Cutter Unit)

$

$

Not available

2

ASSEMBLY, Rail

Note: (See "42" Rails, Lift Arms, Cam Lift" illustration and parts list for Parts Breakdown)

$

$

Not available

3

Snapper 7051401

ASSEMBLY, Side Chute
(Superseded to 7051401YP)

Note: (Includes Item 23 Decal)

$159.99

$

Usually ships in 2-12 days

0

4

Snapper 7059628

ASSEMBLY, Spindle
(Superseded to 7059628BMYP)

$341.99

$

Usually ships in 2-12 days

0

5

Snapper 7033601

ASSEMBLY, Pedal

$34.99

$

In Stock, only 1 left!

0

6

Snapper 7026691

21" BLADE
(Superseded to 7026691BZYP)

$23.99

$

In Stock, Qty 20+

0

7

Snapper 7018524

SWITCH, Deck Interlock
(Superseded to 7018524YP)

$19.99

$

In Stock, Qty 9

0

8

Snapper 7041324

LEVER, Blade Engagement
(Superseded to 7041324YP)

$74.99

$

In Stock, only 1 left!

0

9

Snapper 7023657

GRIP, Handle
(Superseded to 7023657YP)

$4.99

$

In Stock, Qty 5

0

10

Snapper 7038021

MOUNT, Handle
(Superseded to 7038021YP)

$13.99

$

Usually ships in 2-12 days

0

11

Snapper 7023658

GRIP, Height Adjustment Lever
(Superseded to 7023658YP)

$5.49

$

Usually ships in 2-12 days

0

12

Snapper 7034758

ARM, Idler
(Superseded to 7034758YP)

Note: Was 37713

$13.99

$

Usually ships in 2-12 days

0

13

Snapper 7090844

PIN, 3/16 x 3/4" Roll
(Superseded to 2816169SM)

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 7053034

ASSEMBLY, Spindle Ring
(Superseded to 7053034YP)

$27.99

$

Usually ships in 2-12 days

0

15

Snapper 7032334

ANCHOR
(Superseded to 7032334YP)

$29.99

$

Usually ships in 2-12 days

0

16

Snapper 7019190

ROLLER
(Superseded to 7019190YP)

$11.99

$

Usually ships in 2-12 days

0

17

Snapper 7012055

ROD, Idler
(Superseded to 7012055YP)

$15.99

$

In Stock, only 3 left!

0

18

Snapper 7014168

SPRING, Belt
(Superseded to 7014168YP)

$6.49

$

In Stock, Qty 9

0

19

Snapper 7028192

SPRING, Latch
(Superseded to 7028192YP)

$16.99

$

Usually ships in 2-12 days

0

20

Snapper 7015448

SPRING, Pedal
(Superseded to 7015448YP)

$6.49

$

In Stock, only 1 left!

0

21

Snapper 7014852

DECAL, Caution
(Superseded to 7101665YP)

$14.99

$

In Stock, Qty 5

0

22

Snapper 7090606

BOLT, 5/16-18 x 5/8" Hex Flange Lock
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

23

Snapper 7013010

DECAL, Danger
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 10

0

24

Snapper 7010740

RING, 2" External Retaining
(Superseded to 7010740YP)

$5.49

$

In Stock, only 3 left!

0

25

Snapper 7014302

BOLT, 1/4-20 Eye
(Superseded to 7014302YP)

$4.99

$

In Stock, Qty 6

0

26

Snapper 7014303

T-NUT, 1/4-20
(Superseded to 7014303YP)

$15.99

$

Usually ships in 2-12 days

0

27

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

28

Snapper 7091619

NUT, 3/8-16 Hex Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

29

Snapper 7090390

WASHER, 3/8 Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

30

Snapper 7091508

BOLT, 5/16-18 x 3/4" Carriage
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 12

0

31

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

32

Snapper 7091294

WASHER, 1/4 Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

33

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

34

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

35

Snapper 7090361

SCREW, 5/16-18 x 5/8" Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

36

Snapper 7015447

ECCENTRIC, Leveling
(Superseded to 7015447YP)

$22.99

$

Usually ships in 2-12 days

0

37

Snapper 7091532

SCREW, 3/8-24 x 3-3/4" Hex Head Cap
(Superseded to 703876)

Note: Was 90859

$6.99

$

In Stock, Qty 10

0

38

Snapper 7015272

SPACER
(Superseded to 7015272YP)

$7.49

$

Usually ships in 2-12 days

0

39

Snapper 7091819

SCREW, 1/4-20 x 5/8" Self-Tapping
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0

40

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

41

Snapper 7090824

SCREW, 3/8-24 x 1" Hex Head Cap
(Superseded to 7090824YP)

$4.99

$

In Stock, Qty 9

0

42

Snapper 7012670

RING, Tolerance
(Superseded to 7012670YP)

$8.49

$

In Stock, Qty 6

0

43

Snapper 7014526

SPACER

$

$

Not available

44

Snapper 7090289

NUT, 3/8-24 Hex Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

45

Snapper 7014795

WASHER, 2" I.D. Nylon

$

$

Not available

46

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

47

Snapper 7091537

NUT, 5/16-18 Wing
(Superseded to 7091537YP)

Note: Was 90492

$4.49

$

In Stock, only 3 left!

0

48

Snapper 7015446

BOLT, 3/8-24 x 9/16" Shoulder
(Superseded to 7015446YP)

$5.49

$

Usually ships in 2-12 days

0

49

Snapper 7090250

WASHER, 1/2 Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

50

Snapper 7024341

SPRING, Return
(Superseded to 7024341YP)

$

$

Not available

51

Snapper 7015495

BOLT, 3/8-24 x 3/4" Shoulder
(Superseded to 7015495YP)

$

$

Not available

52

Snapper 7090299

SCREW, #10-32 x 1" Self-Tapping
(Superseded to 7090299YP)

$4.49

$

Usually ships in 2-12 days

0

53

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

54

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

Snapper 7061323

42" Replacement Deck-Complete Cutter Unit

$

$

Currently unavailable
