4212 G (1691269) - Simplicity Lawn Tractor, 12hp Steering & Front Wheel Group Parts Diagram

Lawn Tractor, 12hp

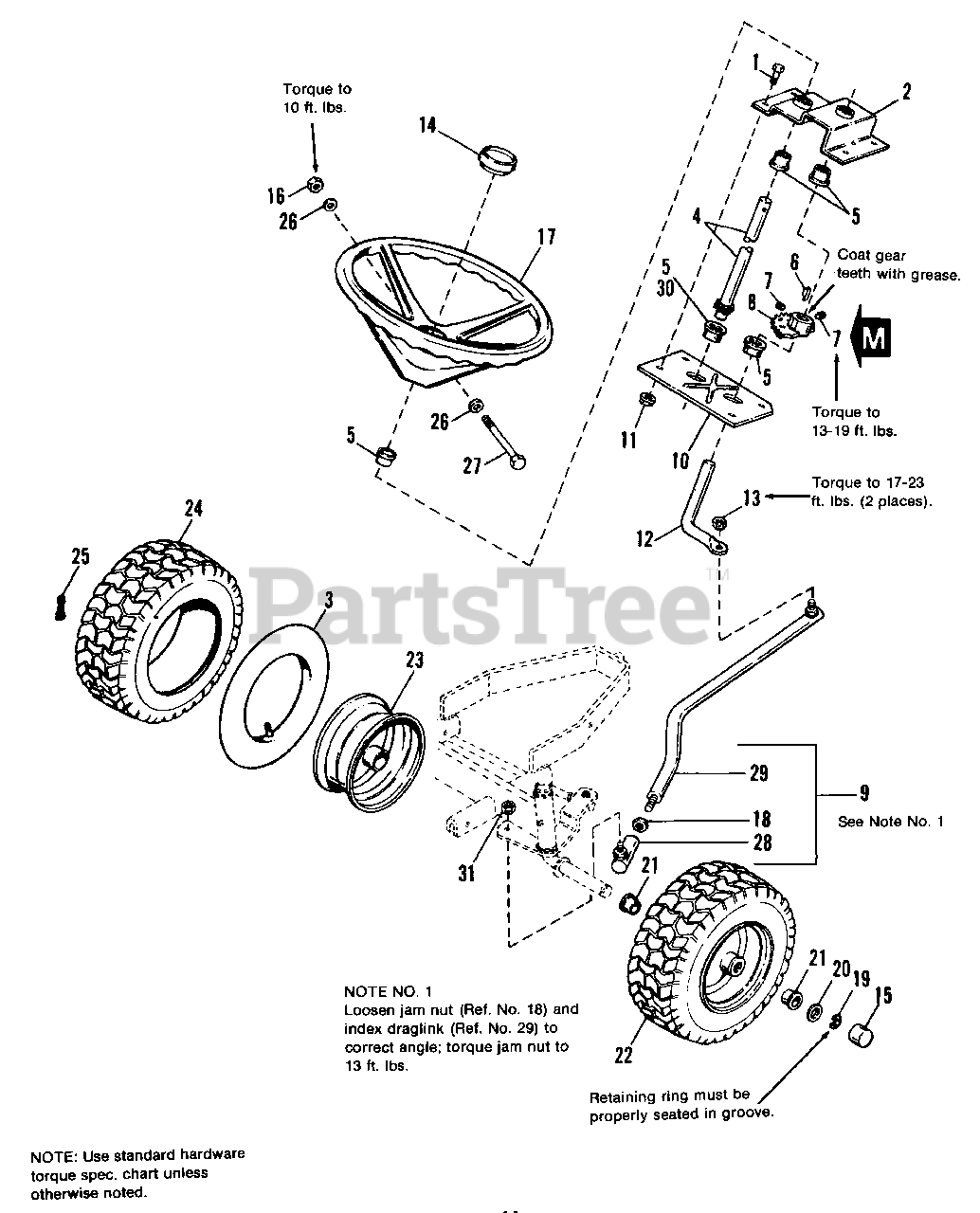

Steering & Front Wheel Group Parts Diagram

  • Title

1

Simplicity 1921332SM

CAPSCREW, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

2

Simplicity 1667513SM

TOP PLATE, Steering
(Superseded to 1667513ASM)

$102.99

$

Usually ships in 2-12 days

0

3

Simplicity 1664090SM

TUBE (For Service Only)

$26.99

$

In Stock, only 3 left!

0

4

Simplicity 1701266SM

SHAFT ASSY., Steering

$108.99

$

Usually ships in 2-12 days

0

5

Simplicity 2176440SM

BUSHING (Qty. 4 on 1691427, 1691541)

$4.99

$

In Stock, Qty 20+

0

6

Simplicity 1667622SM

KEY

$8.49

$

Usually ships in 2-12 days

0

7

Simplicity 1928721SM

SETSCREW, 5/16-18 x 1/2

$4.99

$

In Stock, only 2 left!

0

8

Simplicity 1675388SM

GEAR, Steering
(Superseded to 1685168SM)

$

$

Not available

9

Simplicity 1686663SM

LINK ASSY., Drag (Incl. Ref. Nos. 18, 28 & 29)

Note: Early Models ball joint assembly (Ref. No. 29) has 3/8-24 threaded stock. Order correct service parts(Ref. Nos. 18, 28 and 31) with 3/8-24 thread.

$

$

Not available

10

Simplicity 1652743SM

BASE PLATE, Steering
(Superseded to 1652743ASM)

$

$

Not available

11

Simplicity 1935048SM

LOCKNUT, Flange, Whiz, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 1674076SM

ROD, Steering

$

$

Not available

13

Simplicity 1668927SM

LOCKNUT, Center, 3/8-24

$6.49

$

In Stock, only 1 left!

0

14

Simplicity 1657017SM

CAP, Steering Wheel

$

$

Not available

15

Simplicity 1673333SM

CAP, Hub, Threaded

$5.49

$

In Stock, Qty 5

0

16

Simplicity 1923362SM

LOCKNUT, Hex, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

17

Simplicity 1686651SM

WHEEL, steering

$190.99

$

In Stock, only 1 left!

0

18

Simplicity 1918403SM

NUT, Jam, 3/8-24
(Superseded to 7090482SM)

Note: Early Models ball joint assembly (Ref. No. 29) has 3/8-24 threaded stock. Order correct service parts(Ref. Nos. 18, 28 and 31) with 3/8-24 thread.

$4.49

$

In Stock, only 1 left!

0

Simplicity 1919262SM

NUT, Jam, 1/2-20
(Superseded to 703903)

Note: Later Models bail joint assembly (Ref. No. 29) has 1/2-20 threaded stock. Order correct service parts(Ref. Nos. 18, 28 and 31) with 1/2-20 thread.

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1611710SM

KLIPRING, Ext., 3/4

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 2860202SM

WASHER

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 2156316SM

BEARING, 1.13 O.D.

Note: Smaller bearing, .75 I.D. x 1.13 O.D. x 1".

$11.99

$

In Stock, only 4 left!

0

21

Simplicity 1713167SM

BEARING, 1.38 O.D.
(Superseded to 1752171YP)

Note: Larger bearing, .75 I.D. x 1.38 O.D. x 1".

$11.99

$

In Stock, Qty 20+

0

22

Simplicity 1611891

WHEEL & TIRE ASSY., 13 x 5.00-6 (Turf-Mate)

Note: Smaller bearing, .75 I.D. x 1.13 O.D. x 1".

$

$

Not available

22

Simplicity 1651787

WHEEL & TIRE ASSY., 13 x 6.00-6 (Turf Saver)

Note: Smaller bearing, .75 I.D. x 1.13 O.D. x 1".

$

$

Not available

22

Simplicity 1709856SM

WHEEL & TIRE ASSY., 15 x 6.00-6 (Turf Mate)

Note: Smaller bearing, .75 I.D. x 1.13 O.D. x 1".

$137.99

$

Usually ships in 2-12 days

0

22

Simplicity 1709856SM

WHEEL & TIRE ASSY., 15 x 6.00-6 (Turf-Saver)

Note: Larger bearing, .75 I.D. x 1.38 O.D. x 1".

$137.99

$

Usually ships in 2-12 days

0

23

Simplicity 1651774SM

WHEEL, w/Bearings, 13 x 5.00

Note: Smaller bearing, .75 I.D. x 1.13 O.D. x 1".

$

$

Not available

23

Simplicity 1715032

WHEEL, w/Bearings, 15 x 6.00
(Superseded to 1726301SM)

Note: Larger bearing, .75 I.D. x 1.38 O.D. x 1".

$82.99

$

In Stock, only 1 left!

0

24

Simplicity 1713166SM

TIRE (Carlisle) 15 x 6.00-6(12 HP) Turf-Saver

$113.99

$

Usually ships in 2-12 days

0

24

Simplicity 1713166SM

TIRE (Carlisle) 15 x 6.00-6(12 HP) Turf Mate

$113.99

$

Usually ships in 2-12 days

0

24

Simplicity 1709376SM

TIRE (Carlisle) 13 x 5.00-6(10 HP) Turf-Saver

$88.99

$

In Stock, only 1 left!

0

24

Simplicity 1709376SM

TIRE (Carlisle) 13 x 5.00-6(10 HP) Turf Mate

$88.99

$

In Stock, only 1 left!

0

25

Simplicity 2172353SM

STEM, Valve
(Superseded to 024373MA)

$

$

Not available

26

Simplicity 1919326SM

WASHER, Plain, 5/16

$4.49

$

In Stock, Qty 6

0

27

Simplicity 1925690SM

BOLT, Hex, 5/16-18 x 3-1/2

$4.99

$

Usually ships in 2-12 days

0

28

Simplicity 1669567SM

BALL JOINT ASSY., 3/8-24 Thrd. Stud.

Note: Early Models ball joint assembly (Ref. No. 29) has 3/8-24 threaded stock. Order correct service parts(Ref. Nos. 18, 28 and 31) with 3/8-24 thread.

$15.99

$

In Stock, Qty 10

0

28

Simplicity 1705437SM

BALL JOINT ASSY., 1/2-20 Thrd. Stud.

Note: Later Models bail joint assembly (Ref. No. 29) has 1/2-20 threaded stock. Order correct service parts(Ref. Nos. 18, 28 and 31) with 1/2-20 thread.

$60.99

$

Usually ships in 2-12 days

0

29

LINK, Drag (See Ref. No. 9)

$

$

Not available

30

Simplicity 1671737SM

BUSHING (Mfg. No. 1691427, 1691541 only)

$4.99

$

In Stock, only 1 left!

0

31

Simplicity 1668927SM

LOCKNUT, Center, 3/8-24 (Early Models)

Note: Early Models ball joint assembly (Ref. No. 29) has 3/8-24 threaded stock. Order correct service parts(Ref. Nos. 18, 28 and 31) with 3/8-24 thread.

$6.49

$

In Stock, only 1 left!

0

31

Simplicity 1930245SM

LOCKNUT, Center, 1/2-20 (Later Models)

Note: Later Models bail joint assembly (Ref. No. 29) has 1/2-20 threaded stock. Order correct service parts(Ref. Nos. 18, 28 and 31) with 1/2-20 thread.

$3.99

$

Usually ships in 2-12 days

0
