4212/12 LT (1691427) - Simplicity Lawn Tractor, 12hp Frame Group - Later Models Parts Diagram

Lawn Tractor, 12hp

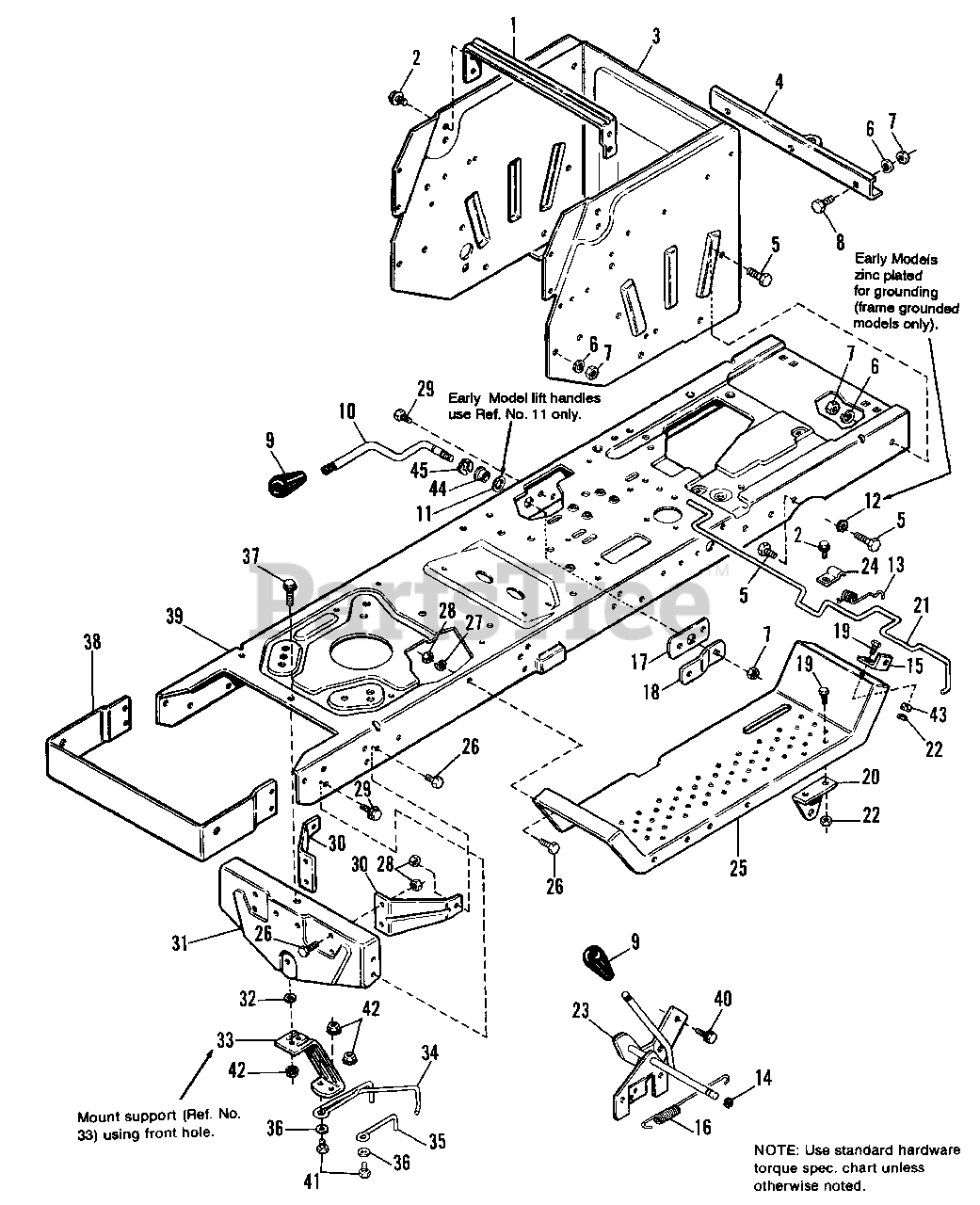

Frame Group - Later Models Parts Diagram

  • Title

1

Simplicity 1654707

BRACE, Seat

$

$

Not available

2

Simplicity 1924856SM

SCREW, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

3

Simplicity 1702627

SUPPORT, Axle Wrapper

$

$

Not available

4

Simplicity 1655591SM

BAR, Draw
(Superseded to 1655591ASM)

$33.99

$

Usually ships in 2-12 days

0

5

Simplicity 1921210SM

CAPSCREW, Hex, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

6

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

7

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 2821965

CAPSCREW, Hex, 3/8-16 x 3/4

$

$

Not available

9

Simplicity 2172038SM

KNOB, Handle
(Superseded to 1732470SM)

$19.99

$

In Stock, Qty 8

0

10

Simplicity 1686647SM

HANDLE, Lift

$198.99

$

Usually ships in 2-12 days

0

11

Simplicity 2860171SM

WASHER

$4.49

$

In Stock, Qty 11

0

12

Simplicity 2820427SM

LOCKWASHER, Ext. Tooth, 3/8, Zinc Pltd.
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

13

Simplicity 1701314

SPRING, Torsion

$

$

Not available

14

Simplicity 2158399SM

RING, Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

15

Simplicity 1700670

BRACKET, Seat Latch

$

$

Not available

16

Simplicity 1673911SM

SPRING, Extension

$21.99

$

Usually ships in 2-12 days

0

17

Simplicity 1656754SM

BAR, Support
(Superseded to 1656754ASM)

$7.49

$

In Stock, only 1 left!

0

18

Simplicity 1656755SM

ARM, Support
(Superseded to 1656755ASM)

$6.99

$

Usually ships in 2-12 days

0

19

Simplicity 1921959SM

CAPSCREW, Hex, 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

20

Simplicity 1654783

SUPPORT, Clutch

$

$

Not available

21

Simplicity 1701268

ROD, Latch

$

$

Not available

22

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 1702452

HANDLE ASSY., PTO Clutch

$

$

Not available

24

Simplicity 1678388

CLIP

$

$

Not available

25

Simplicity 1679938

FOOTREST

$

$

Not available

26

Simplicity 1921332SM

CAPSCREW, Hex, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

27

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

28

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18 (Qty. 18 on 8 HP)
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

29

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 1655076

BRACE, Axle Support

$

$

Not available

31

Simplicity 1664034

SUPPORT, Axle

$

$

Not available

32

Simplicity 1919381SM

WASHER, Plain, 11/32-1 x 10 Ga.
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

33

Simplicity 1665803SM

SUPPORT

$

$

Not available

34

Simplicity 1672118SM

STOP, Belt

$9.99

$

Usually ships in 2-12 days

0

35

Simplicity 1665812SM

STOP, Belt

$20.99

$

In Stock, only 1 left!

0

36

Simplicity 1919326SM

WASHER, 11/32

$4.49

$

In Stock, Qty 8

0

37

Simplicity 1930595SM

CAPSCREW, Hex Hd., Flange, 5/16-18 x 1-1/4

$3.99

$

In Stock, Qty 5

0

38

Simplicity 1656791

SUPPORT

$

$

Not available

39

Simplicity 1702626

FRAME

$

$

Not available

40

Simplicity 1925003SM

SCREW, Taptite, 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

41

Simplicity 1923325SM

CAPSCREW, Hex, 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 14

0

42

Simplicity 1927557SM

LOCKNUT, Hex, Flange Whiz, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

43

Simplicity 1921319SM

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

44

Simplicity 1704505SM

BUSHING

$

$

Not available

45

Simplicity 1703805SM

KLIPRING, 1/2

$3.49

$

In Stock, Qty 12

0
