42113S (89884) - Snapper 42" Rear-Engine Riding Mower, 11hp Rear Wheels, Transmission And Variable Speed Drive (Part 2) Parts Diagram

42" Rear-Engine Riding Mower, 11hp

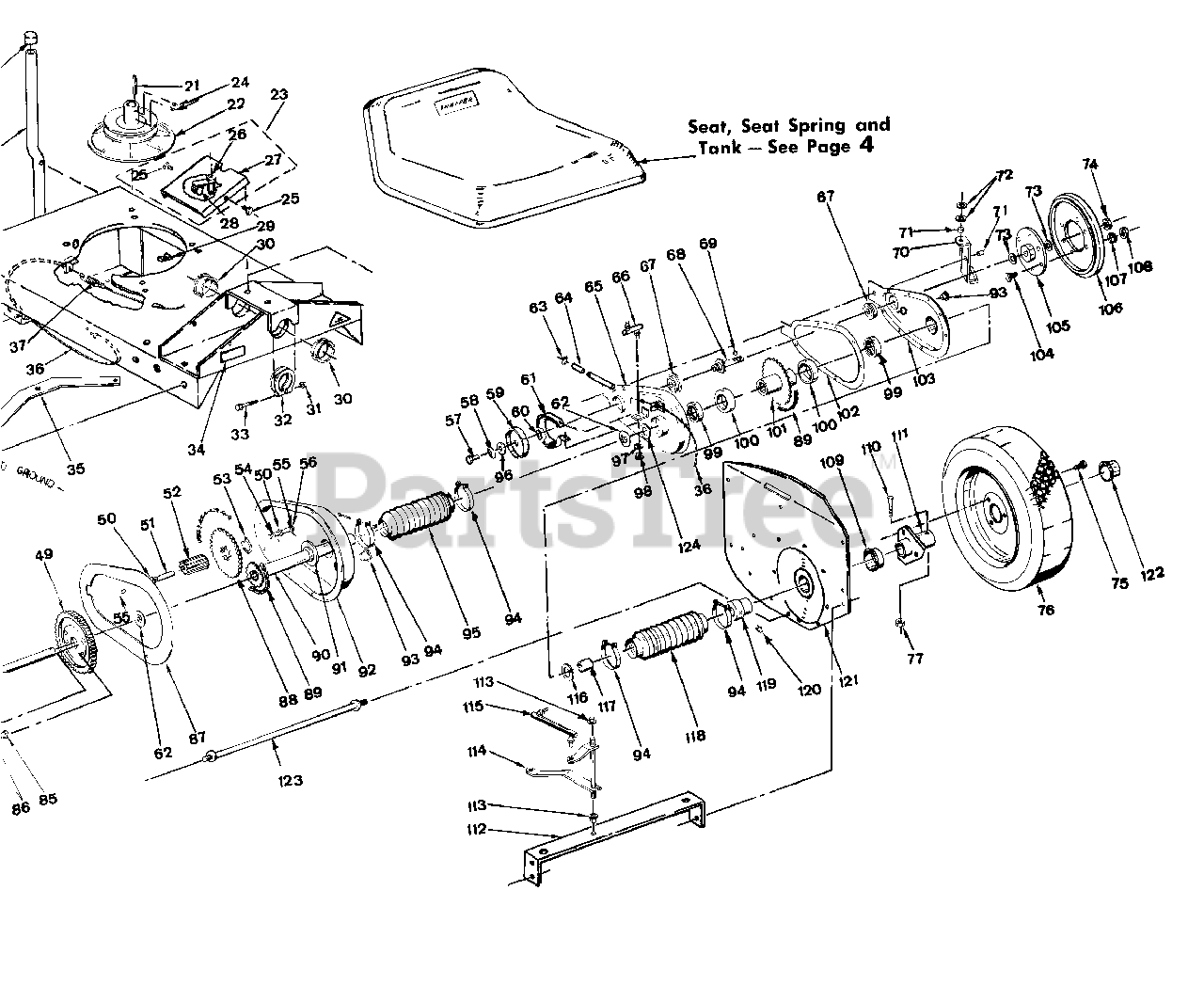

Rear Wheels, Transmission And Variable Speed Drive (Part 2) Parts Diagram

  • Title
21

Snapper 7010210

Key
(Superseded to 703890)

$4.99

$

In Stock, Qty 7

0

22

Snapper 7050843

Drive Disc Assembly
(Superseded to 7050843YP)

$136.99

$

Usually ships in 2-12 days

0

Snapper 7011000

Drive Disc
(Superseded to 7011000YP)

$58.99

$

In Stock, only 2 left!

0

Snapper 7029112

HUB

Note: Was 11001

$

$

Not available

$

$

Not available

23

Snapper 7050901

Switch Panel Assembly

$

$

Currently unavailable

24

Snapper 7090132

3/8-16 x 3/8 Set Screw
(Superseded to 7090132YP)

$3.49

$

In Stock, Qty 5

0

25

Snapper 7091084

1/4-20 x 3/8 HWST
(Superseded to 703583)

Note: Was 90302

$4.99

$

In Stock, Qty 20+

0

26

Snapper 7012623

Pushbutton Start Switch
(Superseded to 7012623YP)

$33.99

$

In Stock, only 1 left!

0

27

Snapper 7037768

PANEL, Switch (NLA, use 38240 and drill .641" switch hole)

$

$

Not available

28

Snapper 7063064

INTERLOCK, B & S
(Superseded to 7063064YP)

Note: Was 12632

$

$

Not available

29

Snapper 31087

Washer

$

$

Currently unavailable

30

Snapper 7011033

Grommet
(Superseded to 7011033YP)

$

$

Not available

31

Snapper 7090480

5/16-24 Flange Lock Nut
(Superseded to 704279)

$3.49

$

In Stock, only 4 left!

0

32

Snapper 7031100

Tube Clamp
(Superseded to 7031100YP)

$10.99

$

Usually ships in 2-12 days

0

33

Snapper 7090358

5/16-24 x 2 1/2 Hex Hd Cap Screw
(Superseded to 7090358YP)

$4.49

$

In Stock, only 1 left!

0

34

Snapper 10898

Name Plate

$

$

Currently unavailable

35

Snapper 7031063

Hitch Plate
(Superseded to 7031063YP)

$13.99

$

Usually ships in 2-12 days

0

36

Snapper 7011855

Brake Cable Housing

$

$

Not available

37

Snapper 7011867

Brake Spring
(Superseded to 7011867YP)

$4.49

$

In Stock, only 1 left!

0

49

Snapper 7021158

Gear, 63T, 10P
(Superseded to 7021158YP)

$109.99

$

In Stock, Qty 16

0

50

Snapper 7011782

5/16 Belleville Washer
(Superseded to 7011782YP)

$4.49

$

In Stock, Qty 20+

0

51

Snapper 7021128

Spacer
(Superseded to 7021128YP)

$7.49

$

In Stock, only 1 left!

0

52

Snapper 7010964

Gear, 11T, 10P
(Superseded to 7200128YP)

$14.99

$

Usually ships in 2-12 days

0

53

Snapper 7010965

Retaining Ring
(Superseded to 7010965YP)

$4.49

$

In Stock, Qty 6

0

54

Snapper 7011042

Idler Bolt
(Superseded to 7011042YP)

$4.49

$

In Stock, Qty 7

0

55

Snapper 7011156

O-RING, 5/16"
(Superseded to 7011156YP)

$4.49

$

In Stock, Qty 20+

0

56

Snapper 7090395

5/16 Internal Tooth Lock Washer
(Superseded to 703138)

$3.99

$

In Stock, Qty 7

0

57

Snapper 7090493

3/8-24 x 1/2 Hex Hd Cap Screw

$4.99

$

In Stock, only 1 left!

0

58

Snapper 7011132

Clutch Washer
(Superseded to 7011132YP)

$4.49

$

In Stock, only 1 left!

0

59

Snapper 7031748

Brake Drum
(Superseded to 7031748YP)

$25.99

$

Usually ships in 2-12 days

0

60

Snapper 7011121

Belleville Washer
(Superseded to 7011121SM)

$3.49

$

In Stock, Qty 20+

0

61

Snapper 7050628

Auxiliary Brake Band
(Superseded to 7050628YP)

$68.99

$

In Stock, only 1 left!

0

62

Snapper 7011072

Flange Washer
(Superseded to 7011072YP)

$5.99

$

In Stock, Qty 20+

0

63

Snapper 7010776

Retaining Ring
(Superseded to 7010776YP)

$3.99

$

In Stock, only 1 left!

0

64

Snapper 7020908

Roller
(Superseded to 7020908YP)

$4.49

$

In Stock, only 3 left!

0

65

Snapper 7047313

Cover - Right Hand
(Superseded to 7047313YP)

$46.99

$

Usually ships in 2-12 days

0

66

Snapper 7011018

Shift Link, Short
(Superseded to 7011018YP)

$18.99

$

In Stock, Qty 16

0

67

Snapper 7010756

Bearing
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

68

Snapper 7010940

Sprocket and Shaft
(Superseded to 7010940YP)

$93.99

$

Usually ships in 2-12 days

0

69

Snapper 7010614

Woodruff Key
(Superseded to 7010614YP)

$4.49

$

In Stock, Qty 20+

0

70

Snapper 7050253

Brake Lever Assembly
(Superseded to 7050253YP)

$23.99

$

Usually ships in 2-12 days

0

71

Snapper 7010916

Split Spacer
(Superseded to 7010916YP)

$5.49

$

In Stock, Qty 9

0

72

Snapper 7020984

Washer
(Superseded to 7021746YP)

$3.99

$

In Stock, Qty 11

0

73

Snapper 7011121

Belleville Washer
(Superseded to 7011121SM)

$3.49

$

In Stock, Qty 20+

0

74

Snapper 7090356

5/8-18 Hex Lock Nut
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 20+

0

75

Snapper 7091502

Lug Bolt
(Superseded to 703431)

Note: Was 90367

$4.99

$

In Stock, Qty 20+

0

76

Snapper 57270

Wheel and Tire Assembly

Note: Was 50713

$

$

Currently unavailable

Snapper 7012163

Rim
(Superseded to 7012163YP)

$121.99

$

Usually ships in 2-12 days

0

Snapper 7046245

Tire
(Superseded to 7073584YP)

Note: Was 11097

$170.99

$

Usually ships in 2-12 days

0

Snapper 7012134

Valve Stem

$3.49

$

Usually ships in 2-12 days

0

77

Snapper 7092062

5/16-24 Lock Nut, GR. 5
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

85

Snapper 7022115

Pinion Spacer
(Superseded to 7022115YP)

Note: Was 21126

$4.49

$

In Stock, Qty 20+

0

86

Snapper 7021127

Gear, 12 Tooth, 12 Pitch
(Superseded to 7021127YP)

$23.99

$

In Stock, only 2 left!

0

87

Snapper 7028762

Gasket
(Superseded to 7028762YP)

Note: Was 18060

$24.99

$

In Stock, Qty 20+

0

88

Snapper 7021129

Sprocket
(Superseded to 7021129YP)

$20.99

$

In Stock, only 4 left!

0

89

Snapper 7010941

Chain
(Superseded to 7010941YP)

$14.99

$

In Stock, Qty 20+

0

90

Snapper 7051584

ASSEMBLY, Drive Hex Tube
(Superseded to 7051584YP)

Note: Was 50685

$92.99

$

In Stock, Qty 5

0

91

Snapper 7010988

Washer
(Superseded to 7010988YP)

$4.49

$

In Stock, Qty 19

0

92

Snapper 7037279

Case
(Superseded to 7037279YP)

$79.99

$

In Stock, only 1 left!

0

93

Snapper 7011024

Plastic Plug
(Superseded to 7011024YP)

$2.99

$

In Stock, Qty 20+

0

94

Snapper 7011037

Boot Clamp
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 15

0

95

Snapper 7075115

BOOT, Oil Seal
(Superseded to 7075115YP)

Note: Was 11011

$10.99

$

In Stock, Qty 20+

0

96

Snapper 11751

Brake Drum Washer

$

$

Currently unavailable

97

Snapper 90182

5/16 Lock Washer

$

$

Currently unavailable

98

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

99

Snapper 7010942

Needle Bearing
(Superseded to 7010942YP)

$13.99

$

In Stock, Qty 20+

0

100

Snapper 7011086

Nylon Thrust washer
(Superseded to 7011086YP)

$4.49

$

In Stock, Qty 12

0

101

Snapper 7040355

Hub & Sprocket Structure
(Superseded to 7040355YP)

$245.99

$

Usually ships in 2-12 days

0

102

Snapper 7028761

Gasket
(Superseded to 7028761YP)

Note: Was 18059

$24.99

$

In Stock, Qty 20+

0

103

Snapper 7039778

Cover, L.H.
(Superseded to 7039778YP)

$43.99

$

Usually ships in 2-12 days

0

104

Snapper 7090316

5/16-18 x 3/4 Carr. Bolt
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

105

Snapper 7020911

Hub
(Superseded to 7020911YP)

$73.99

$

Usually ships in 2-12 days

0

106

Snapper 7010765

Driven Disc (R/B 7018782)
(Superseded to 7018782SM)

$

$

Not available

107

Snapper 90182

5/16 Lock Washer

$

$

Currently unavailable

109

Snapper 7014658

CAP, Seal L.H. 3/4"
(Superseded to 7014658YP)

Note: Was 10967 (Now 14658 + 14662 + 12332)

$7.99

$

In Stock, Qty 20+

0

110

Snapper 7011035

Axle Bolt, L.H.
(Superseded to 7011035YP)

$4.99

$

In Stock, Qty 20+

0

111

Snapper 7040434

Hub, L.H.
(Superseded to 7040434YP)

$

$

Not available

112

Snapper 7037291

Cross Brace
(Superseded to 7037291YP)

$35.99

$

Usually ships in 2-12 days

0

113

Snapper 7011016

Nylon Bearing
(Superseded to 7011016YP)

$4.49

$

In Stock, only 1 left!

0

114

Snapper 7040340

Shift Arm
(Superseded to 7040340YP)

$74.99

$

Usually ships in 2-12 days

0

115

Snapper 7011017

Shift Link, Long
(Superseded to 7011017YP)

$39.99

$

In Stock, only 3 left!

0

116

Snapper 7012271

Shim Washer
(Superseded to 7011071YP)

$3.99

$

In Stock, Qty 20+

0

117

Snapper 12272

Bearing Spacer

$

$

Currently unavailable

118

Snapper 7075115

Boot
(Superseded to 7075115YP)

Note: Was 10922 & 61275

$10.99

$

In Stock, Qty 20+

0

119

Snapper 7010989

Bearing

$

$

Not available

120

Snapper 7010909

Grease Fitting
(Superseded to 7010909YP)

$5.49

$

Usually ships in 2-12 days

0

121

Snapper 7037285

Fender, L.H.
(Superseded to 7301302YP)

$0.00

$

Usually ships in 2-12 days

0

122

Snapper 7011052

Hub Cap
(Superseded to 7011052YP)

$4.49

$

In Stock, Qty 7

0

123

Snapper 7011070

Tie Rod
(Superseded to 7011070YP)

$20.99

$

In Stock, only 3 left!

0

124

Snapper 7011071

Nylon Washer
(Superseded to 7011071YP)

$3.99

$

In Stock, Qty 20+

0

?125

Snapper 7050274

ASSEMBLY, L.H. Fender

Note: (Incl. items 119, 120 & 121)

$

$

Currently unavailable

?126

Snapper 50875

ASSEMBLY, Main Case

$

$

Currently unavailable

?127

Snapper 7060411

ASSEMBLY, Replacement Differential
(Superseded to 7600229YP)

$1049.99

$

Usually ships in 2-12 days

0
