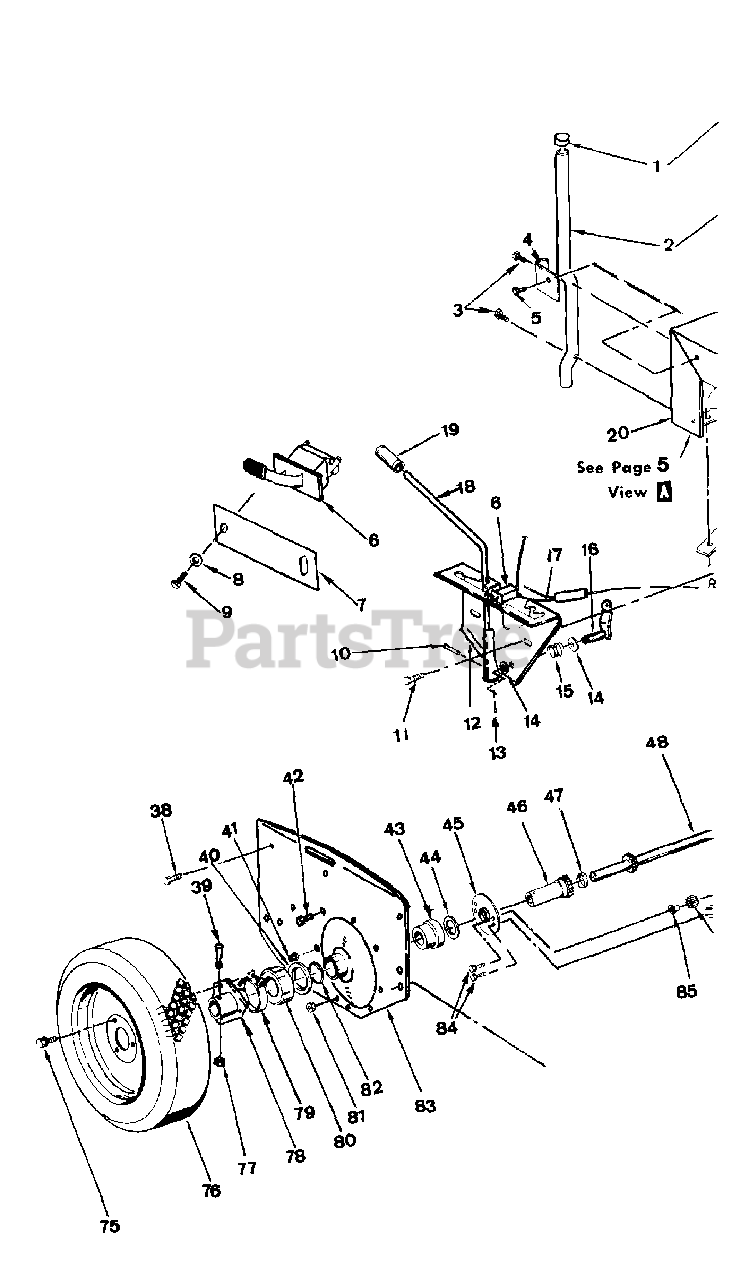

42113S (89884) - Snapper 42" Rear-Engine Riding Mower, 11hp Rear Wheels, Transmission And Variable Speed Drive (Part 1) Parts Diagram

42" Rear-Engine Riding Mower, 11hp

Rear Wheels, Transmission And Variable Speed Drive (Part 1) Parts Diagram

  • Title

1

Snapper 7010153

Cap
(Superseded to 7010153YP)

$4.49

$

In Stock, only 3 left!

0

2

Snapper 7030798

Bumper
(Superseded to 7030798BMYP)

$32.99

$

Usually ships in 2-12 days

0

3

Snapper 7091506

Bumper Bolt
(Superseded to 704318)

Note: Was 90484

$4.49

$

In Stock, only 4 left!

0

5

Snapper 7090361

5/16-18 x 5/8 HWST
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

6

Snapper 7050681

M. P. E. Switch Assembly
(Superseded to 7050681YP)

$

$

Not available

7

Snapper 7031861

Switch Protector

$8.99

$

Usually ships in 2-12 days

0

8

Snapper 7090010

No. 10 SAE Washer
(Superseded to 7091552SM)

$3.99

$

In Stock, Qty 14

0

9

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 9

0

10

Snapper 7011021

Clevis Pin
(Superseded to 7023914YP)

$

$

Not available

11

Snapper 7090361

5/16-18 x 5/8 HWST
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

12

Snapper 7061002

Shift Detent
(Superseded to 7061002YP)

Note: Was 40410

$98.99

$

Usually ships in 2-12 days

0

13

Snapper 7091597

3/32 x 3/4 Cotter Pin
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7031036

Thrust Washer
(Superseded to 7031036YP)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 7010754

Spring
(Superseded to 7010754YP)

$6.99

$

Usually ships in 2-12 days

0

16

Snapper 7040341

Shift Handle Arm
(Superseded to 7040341YP)

$65.99

$

Usually ships in 2-12 days

0

17

Snapper 7012033

Mower Clutch Wire

$

$

Not available

18

Snapper 7040284

Shift Handle
(Superseded to 7059212DYP)

$56.99

$

In Stock, Qty 20+

0

19

Snapper 7010838

Grip
(Superseded to 7010838YP)

$7.49

$

Usually ships in 2-12 days

0

20

Snapper 49578

Main Case

$

$

Currently unavailable

38

Snapper 7090361

5/16-18 x 5/8 HWST
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

39

Snapper 7011013

Wheel Bolt, R. H. Axle
(Superseded to 7011013YP)

$6.49

$

In Stock, Qty 20+

0

40

Snapper 7011817

Oil Seal
(Superseded to 7011817YP)

$5.49

$

In Stock, Qty 20+

0

41

Snapper 7010969

5/16 Flange Lock Nut
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

42

Snapper 7091819

1/4-20 x 5/8 Self Tapping Screw
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0

43

Snapper 7012296

Bearing
(Superseded to 7012296YP)

$14.99

$

In Stock, only 4 left!

0

44

Snapper 7031079

Thrust Washer
(Superseded to 7031079YP)

$6.99

$

In Stock, Qty 20+

0

45

Snapper 7038067

Differential Plate
(Superseded to 7038067YP)

Note: Was 31104

$

$

Not available

46

Snapper 7060412

Short Axle Assembly
(Superseded to 7060412YP)

Note: Was 50278 (60412 includes long axle)

$237.99

$

Usually ships in 2-12 days

0

47

Snapper 7074431

SPACER, Differential (1.25" ID x .425 Wide)
(Superseded to 7074431YP)

Note: Was 11026

$4.49

$

In Stock, Qty 20+

0

48

Snapper 7060412

Long Axle Assembly
(Superseded to 7060412YP)

Note: Was 50277 (60412 includes short axle)

$237.99

$

Usually ships in 2-12 days

0

75

Snapper 7091502

Lug Bolt
(Superseded to 703431)

Note: Was 90367

$4.99

$

In Stock, Qty 20+

0

76

Snapper 57270

Wheel and Tire Assembly

Note: Was 50713

$

$

Currently unavailable

Snapper 7012163

Rim
(Superseded to 7012163YP)

$121.99

$

Usually ships in 2-12 days

0

Snapper 7046245

Tire
(Superseded to 7073584YP)

Note: Was 11097

$170.99

$

Usually ships in 2-12 days

0

Snapper 7012134

Valve Stem

$3.49

$

Usually ships in 2-12 days

0

77

Snapper 7092062

5/16-24 Lock Nut, GR. 5
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

78

Snapper 7040433

Wheel Hub, Right Hand
(Superseded to 7040433YP)

$37.99

$

In Stock, Qty 12

0

79

Snapper 7011037

Boot Clamp
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 15

0

80

Snapper 7031732

Seal Cap, Right Hand
(Superseded to 7031732YP)

$6.49

$

In Stock, Qty 20+

0

81

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

82

Snapper 7011037

Clamp Ring
(Superseded to 7012332YP)

Note: Was 18082

$6.99

$

In Stock, Qty 15

0

83

Snapper 7037280

Fender, Right Hand
(Superseded to 7301301YP)

$149.99

$

In Stock, only 1 left!

0

84

Snapper 7012333

5/16-24 x 1-5/8 Hex Head Lock Cap Screw
(Superseded to 7012333YP)

Note: (Use one time only. Replace if disassembled)

$4.99

$

In Stock, only 3 left!

0

85

Snapper 7022115

Pinion Spacer
(Superseded to 7022115YP)

Note: Was 21126

$4.49

$

In Stock, Qty 20+

0

?125

Snapper 7050274

ASSEMBLY, L.H. Fender

Note: (Incl. items 119, 120 & 121)

$

$

Currently unavailable

?126

Snapper 50875

ASSEMBLY, Main Case

$

$

Currently unavailable

?127

Snapper 7060411

ASSEMBLY, Replacement Differential
(Superseded to 7600229YP)

$1049.99

$

Usually ships in 2-12 days

0
