42113S (89884) - Snapper 42" Rear-Engine Riding Mower, 11hp Main Case - View "A" Parts Diagram

42" Rear-Engine Riding Mower, 11hp

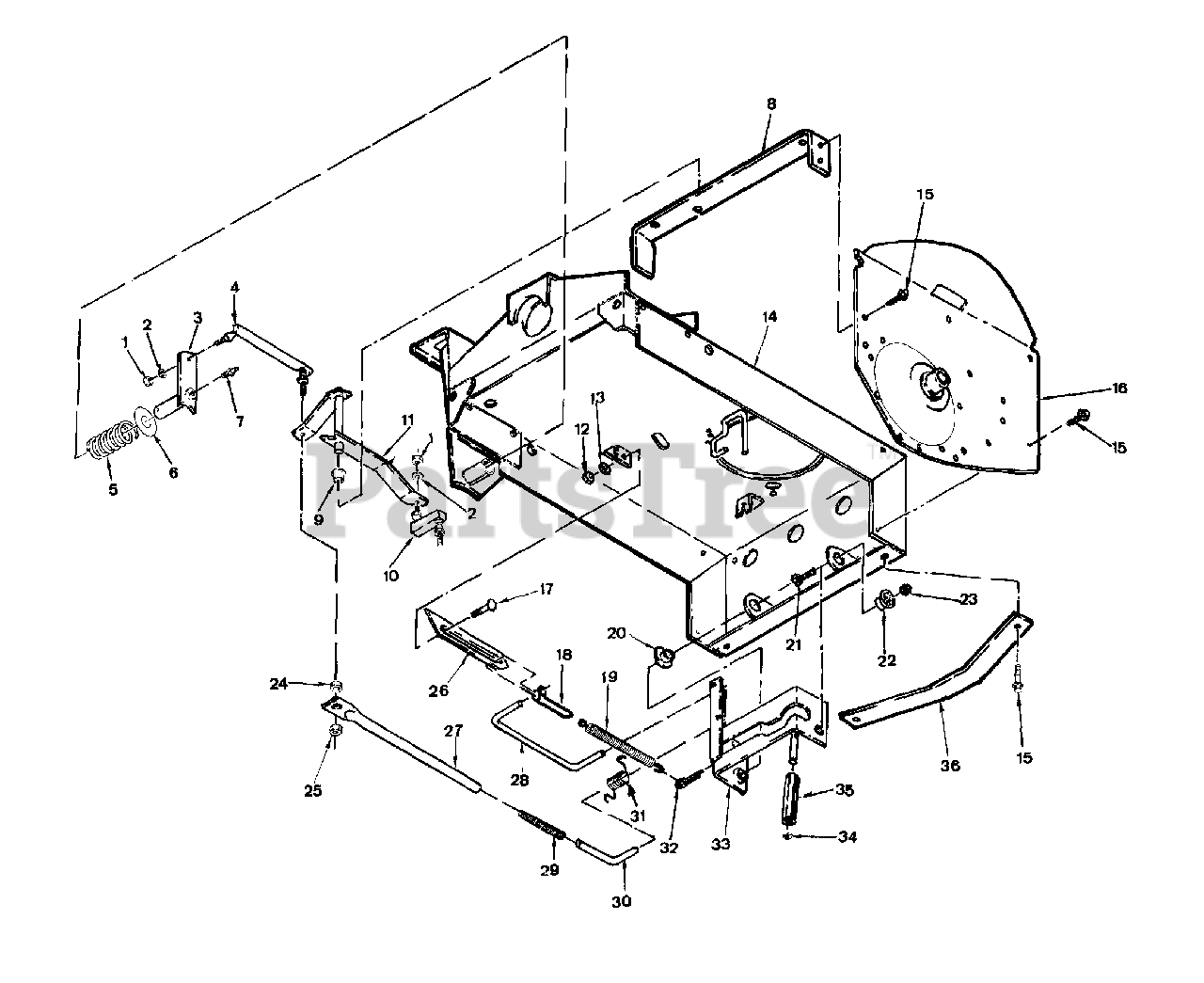

Main Case - View "A" Parts Diagram

  • Title

1

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

2

Snapper 90182

5/16 Lock Washer

$

$

Currently unavailable

3

Snapper 7040341

Shift Handle Arm
(Superseded to 7040341YP)

$65.99

$

Usually ships in 2-12 days

0

4

Snapper 7011017

Shift Link, Long
(Superseded to 7011017YP)

$39.99

$

In Stock, only 3 left!

0

5

Snapper 7010754

Spring
(Superseded to 7010754YP)

$6.99

$

Usually ships in 2-12 days

0

6

Snapper 7031036

Thrust Washer
(Superseded to 7031036YP)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 7010817

FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7037291

Cross Brace
(Superseded to 7037291YP)

$35.99

$

Usually ships in 2-12 days

0

9

Snapper 7011016

Nylon Bushing
(Superseded to 7011016YP)

$4.49

$

In Stock, only 3 left!

0

10

Snapper 7011018

Shift Link, Short
(Superseded to 7011018YP)

$18.99

$

In Stock, Qty 16

0

11

Snapper 7040340

Shift Arm
(Superseded to 7040340YP)

$74.99

$

Usually ships in 2-12 days

0

12

Snapper 7091302

3/8-16 Hex Nut
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

13

Snapper 7090118

3/8 Lock Washer
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

14

Snapper 49578

Main Case

$

$

Currently unavailable

15

Snapper 7090361

5/16-18 x 5/8 HW ST Screw
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

16

Snapper 7037285

Fender, Left Hand
(Superseded to 7301302YP)

$0.00

$

Usually ships in 2-12 days

0

17

Snapper 7091923

3/8-16 x 3/4 Carriage Bolt
(Superseded to 7091923SM)

Note: Was 90136

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 7011090

Clutch Clevis
(Superseded to 7011090YP)

$6.99

$

Usually ships in 2-12 days

0

19

Snapper 7012264

Spring
(Superseded to 7012264YP)

$6.99

$

In Stock, Qty 16

0

20

Snapper 7010925

Thrust Washer
(Superseded to 7010925YP)

$4.49

$

In Stock, Qty 7

0

21

Snapper 7090369

5/16-18 x 1 ST Screw
(Superseded to 7091841SM)

$3.49

$

Usually ships in 2-12 days

0

22

Snapper 7011048

Yoke Bearing, Right Hand
(Superseded to 7011048YP)

$4.49

$

In Stock, Qty 20+

0

23

Snapper 7091511

5/16-18 Hex Nut
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

24

Snapper 7011968

Roller
(Superseded to 7011968YP)

$4.49

$

Usually ships in 2-12 days

0

25

Snapper 7090222

5/16-24 Hex Lock Nut
(Superseded to 703896)

$3.49

$

In Stock, Qty 20+

0

26

Snapper 7031080

Rod Guide
(Superseded to 7031080YP)

$23.99

$

In Stock, only 1 left!

0

27

Snapper 7021706

Tube

$

$

Not available

28

Snapper 7031050

Clutch Rod

$

$

Not available

29

Snapper 7011820

Spring
(Superseded to 7011820YP)

$5.99

$

In Stock, only 3 left!

0

30

Snapper 7031729

Rod
(Superseded to 7031729YP)

$9.49

$

Usually ships in 2-12 days

0

31

Snapper 7011821

Spring
(Superseded to 7011821YP)

$14.99

$

Usually ships in 2-12 days

0

32

Snapper 7090357

3/16 x 3/4 Cotter Pin
(Superseded to 7090357YP)

$3.49

$

Usually ships in 2-12 days

0

33

Snapper 7047843

LIFT, Yoke
(Superseded to 7047843YP)

Note: Was 47347

$186.99

$

Usually ships in 2-12 days

0

34

Snapper 7010776

Retaining Ring
(Superseded to 7010776YP)

$3.99

$

In Stock, only 1 left!

0

35

Snapper 7012086

Roller

$

$

Not available

36

Snapper 7031063

Hitch Plate
(Superseded to 7031063YP)

$13.99

$

Usually ships in 2-12 days

0
