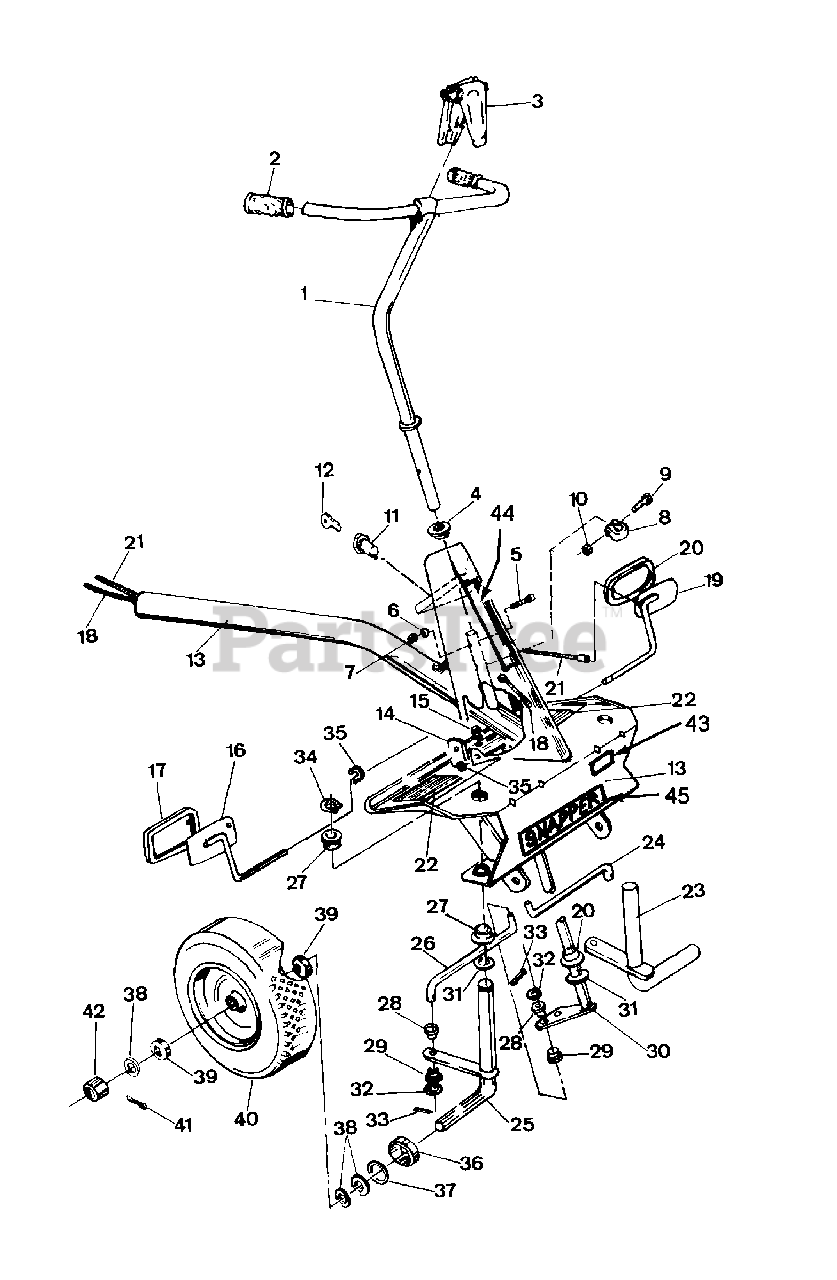

42113S (89884) - Snapper 42" Rear-Engine Riding Mower, 11hp Front Wheels, Front End And Steering Parts Diagram

42" Rear-Engine Riding Mower, 11hp

Front Wheels, Front End And Steering Parts Diagram

  • Title

1

Snapper 7022757

HANDLE, Steering

Note: Was 19669

$

$

Not available

2

Snapper 7012031

GRIP, Steering Handle
(Superseded to 7012031YP)

$9.49

$

Usually ships in 2-12 days

0

3

Snapper 7019517

COVER, Handle Center
(Superseded to 7019517YP)

$

$

Not available

4

Snapper 7010694

BUSHING, Nylon
(Superseded to 7010694YP)

$4.49

$

In Stock, only 2 left!

0

5

Snapper 7012175

BOLT, Tapered Head

$7.99

$

In Stock, Qty 5

0

6

Snapper 7090053

LOCKWASHER, 1/4 Int. Tooth
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

7

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 7032009

CLAMP, (Handle Retaining)
(Superseded to 7032009YP)

$27.99

$

Usually ships in 2-12 days

0

9

Snapper 7091612

CARRIAGE BOLT, 5/16-18 x 1-1/2"
(Superseded to 704210)

Note: Was 90582

$4.99

$

In Stock, Qty 12

0

10

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

11

Snapper 7011853

SWITCH, Ignition
(Superseded to 7011853YP)

$27.99

$

In Stock, only 3 left!

0

12

Snapper 7011138

KEY, Ignition Switch (Pair)
(Superseded to 7011138YP)

$7.49

$

In Stock, Qty 7

0

13

Snapper 7049814

AXLE, Front (Structure)
(Superseded to 7049814YP)

$512.99

$

Usually ships in 2-12 days

0

14

Snapper 7031191

MOUNT, Auxiliary Brake Pedal

$

$

Not available

15

Snapper 7090361

SELF-TAP SCREW, 5/16-18 x 5/8"
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

16

Snapper 7047772

PEDAL, Auxiliary Brake

$

$

Currently unavailable

17

Snapper 7011747

PAD, Auxiliary Brake Pedal

$7.49

$

Usually ships in 2-12 days

0

18

Snapper 7012426

CABLE, Auxiliary Brake (Orange w/13314 Belt)
(Superseded to 7012426YP)

$23.99

$

In Stock, only 3 left!

0

Snapper 7012425

(Yellow w/12525 Belt)
(Superseded to 7012425YP)

$21.99

$

In Stock, Qty 12

0

19

Snapper 7047773

PEDAL, Clutch/Brake
(Superseded to 7047773YP)

$54.99

$

In Stock, only 1 left!

0

20

Snapper 7011815

PAD, Clutch/Brake Pedal
(Superseded to 7011815YP)

$11.99

$

In Stock, only 4 left!

0

21

Snapper 7013325

CABLE, Clutch/Brake
(Superseded to 7013325YP)

$12.99

$

Usually ships in 2-12 days

0

22

Snapper 7014048

PAD, Foot
(Superseded to 7104571YP)

Note: Was 12903

$17.99

$

In Stock, Qty 5

0

23

Snapper 7041731

King Pin, L.H.

Note: Was 40362

$

$

Not available

24

Snapper 7012541

TIE-Rod, Left hand
(Superseded to 7012541BMYP)

$14.99

$

In Stock, only 1 left!

0

25

Snapper 7041730

King Pin, R.H.

Note: Was 40361

$

$

Not available

26

Snapper 7012540

TIE-ROD, Right Hand
(Superseded to 7012540YP)

$14.99

$

In Stock, only 1 left!

0

27

Snapper 7010986

BEARING
(Superseded to 7010986YP)

$4.49

$

In Stock, Qty 20+

0

28

Snapper 7013321

BEARING, Half
(Superseded to 7013321YP)

Note: Was 11100

$4.49

$

In Stock, Qty 20+

0

29

Snapper 7013321

BEARING, Half
(Superseded to 7013321YP)

Note: Was 11099

$4.49

$

In Stock, Qty 20+

0

30

Snapper 7040457

SHAFT, Steering

$

$

Not available

31

Snapper 7090183

WASHER, 5/8 Flat
(Superseded to 7090183YP)

$4.49

$

In Stock, only 3 left!

0

32

Snapper 7090122

WASHER, 3/8 SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

33

Snapper 7091516

COTTER-PIN, 5-32 x 3/4"
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 14

0

34

Snapper 7010746

RING, Retaining
(Superseded to 703975)

$3.99

$

In Stock, Qty 20+

0

35

Snapper 7010776

RING, Retaining
(Superseded to 7010776YP)

$3.99

$

Usually ships in 2-12 days

0

36

Snapper 7031038

CAP, Dust
(Superseded to 7031038YP)

$4.99

$

In Stock, Qty 12

0

37

Snapper 7011032

WASHER, Felt
(Superseded to 7011032YP)

Note: Was 31179

$4.99

$

In Stock, Qty 20+

0

38

Snapper 7010935

WASHER, Spacer
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

39

Snapper 7011807

BEARING, Ball
(Superseded to 7011807YP)

$7.99

$

In Stock, Qty 20+

0

40

Snapper 7052268

ASSEMBLY, Tire & Rim
(Superseded to 7052268YP)

Note: Was 50618

$107.99

$

In Stock, Qty 7

0

Snapper 7017146

RIM, (For 4.10/3.50x4 Tire)
(Superseded to 7058943YP)

Note: Was 10819 (w/o Bearings, Item 39)

$102.99

$

In Stock, only 2 left!

0

Snapper 7023828

TIRE, 4.10/3.50 x 4
(Superseded to 7023828YP)

Note: Was 10820

$59.99

$

Usually ships in 2-12 days

0

Snapper 7010821

TUBE, Inner
(Superseded to 7010821YP)

Note: (Optional)

$18.99

$

In Stock, Qty 5

0

Snapper 7014247

FITTING, Grease
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

Snapper 7012234

STEM, Valve
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

41

Snapper 7091516

COTTER-PIN, 5/32 x 1"
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 14

0

42

Snapper 7011022

HUB-CAP
(Superseded to 7011022YP)

$4.49

$

In Stock, Qty 20+

0

43

Snapper 12550

DECAL, Battery Warning

$21.99

$

Usually ships in 2-12 days

0

44

Snapper 18077

DECAL, Comet

$

$

Currently unavailable

45

Snapper 18447

DECAL, Snapper

$

$

Currently unavailable

Snapper 7013314

BELT
(Superseded to 7013314YP)

$52.99

$

Usually ships in 2-12 days

0

Snapper 7013314

BELT
(Superseded to 7013314YP)

Note: Was 12525

$52.99

$

Usually ships in 2-12 days

0
