42113S (89884) - Snapper 42" Rear-Engine Riding Mower, 11hp Cutting Deck - View "A" Parts Diagram

42" Rear-Engine Riding Mower, 11hp

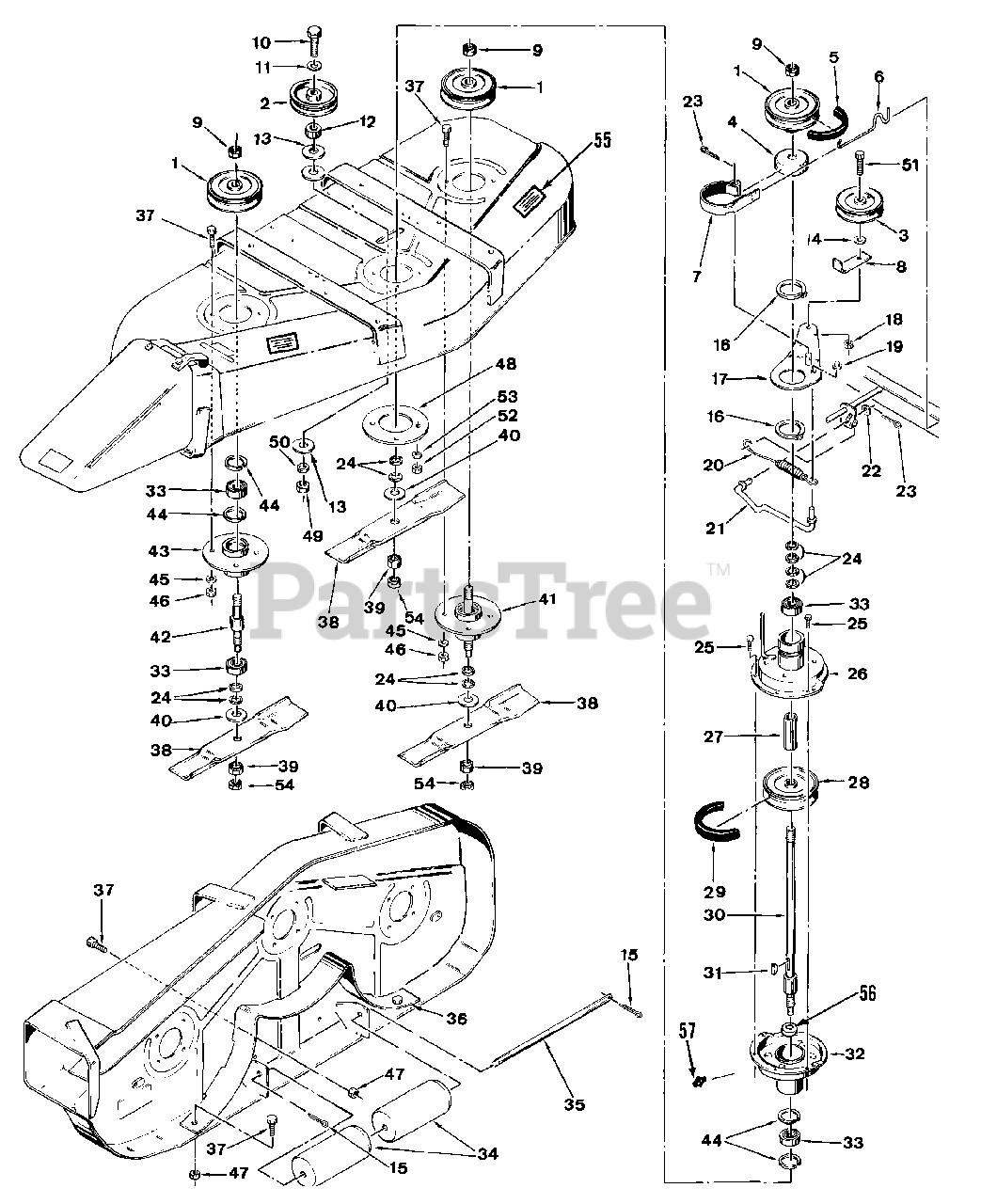

Cutting Deck - View "A" Parts Diagram

  • Title

1

Snapper 7012528

Pulley
(Superseded to 7012528YP)

Note: Was 12529

$69.99

$

Usually ships in 2-12 days

0

2

Snapper 7012520

Pulley Deck Idler
(Superseded to 7012520YP)

$37.99

$

Usually ships in 2-12 days

0

3

Snapper 7011029

Pulley - Idler
(Superseded to 7011029YP)

$23.99

$

In Stock, only 1 left!

0

4

Snapper 7031981

Brake Drum

$

$

Not available

5

Snapper 7013314

Drive Belt
(Superseded to 7013314YP)

$52.99

$

Usually ships in 2-12 days

0

6

Snapper 7012593

Brake Link
(Superseded to 7012593YP)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 7050627

Brake Band
(Superseded to 7050627YP)

$

$

Not available

8

Snapper 31982

Belt Restrictor

$

$

Currently unavailable

9

Snapper 7074467

NUT, 3/4-16 Hex Jam
(Superseded to 7074467SM)

Note: Was 10027

$4.49

$

In Stock, Qty 10

0

10

Snapper 90567

5/8-11 x 21 Hex Hd. Mach. Bolt

$

$

Currently unavailable

11

Snapper 7021768

Bolt Ferrule

$

$

Not available

12

Snapper 7021771

Idler Ferrule

$

$

Not available

13

Snapper 7090183

5/8 SAE Flat Washer
(Superseded to 7090183YP)

$4.49

$

In Stock, only 2 left!

0

14

Snapper 7090122

3/8 SAE Washer
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

15

Snapper 7091516

Cotter Pin - 5/32 x 1
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 11

0

16

Snapper 7010740

RING, 2" External Retaining
(Superseded to 7010740YP)

$5.49

$

In Stock, only 3 left!

0

17

Snapper 7040456

Idler Structure
(Superseded to 7040456YP)

$33.99

$

Usually ships in 2-12 days

0

18

Snapper 7090289

3/8-24 Lock Nut
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

19

Snapper 7012542

Push Nut
(Superseded to 704028)

$5.49

$

In Stock, only 4 left!

0

20

Snapper 7012518

Spring
(Superseded to 7012518YP)

$13.99

$

Usually ships in 2-12 days

0

21

Snapper 7012523

Control Rod
(Superseded to 7012523YP)

$20.99

$

Usually ships in 2-12 days

0

22

Snapper 7090188

5/16 Flat Washer
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

23

Snapper 7091597

Cotter Pin - 3/32 x 3/4
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

24

Snapper 7010935

Washer
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

25

Snapper 7091819

1/4-5/8 Self Topping Screw
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0

26

Snapper 7040453

Center Housing Structure
(Superseded to 7040453YP)

$193.99

$

Usually ships in 2-12 days

0

27

Snapper 7021776

Top Ferrule

$

$

Not available

28

Snapper 7012528

Pulley
(Superseded to 7012528YP)

$69.99

$

Usually ships in 2-12 days

0

29

Snapper 7012524

Deck Belt
(Superseded to 7012524YP)

$56.99

$

Usually ships in 2-12 days

0

30

Snapper 7021773

Center Shaft

$

$

Not available

31

Snapper 7013861

Woodruff Key
(Superseded to 7013861YP)

Note: Was 12536

$3.49

$

In Stock, Qty 5

0

32

Snapper 7051342

Housing Structure

Note: Was 40454

$

$

Not available

33

Snapper 7013313

Bearing
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

34

Snapper 7013678

Roller

$

$

Currently unavailable

35

Snapper 7021777

Roller Shaft
(Superseded to 7021777YP)

$26.99

$

Usually ships in 2-12 days

0

36

Snapper 12530

Baffle

$

$

Currently unavailable

37

Snapper 7090233

5/16-24 x 3/4 Hx Hd Capscrew
(Superseded to 703336)

$4.49

$

In Stock, Qty 5

0

38

Snapper 7018223

Blade
(Superseded to 7018223YP)

$26.99

$

Usually ships in 2-12 days

0

39

Snapper 7021001

Shoulder Nut

$

$

Not available

40

Snapper 7031969

Washer

$

$

Not available

41

Snapper 50836

Outside Spindle Assembly - in

Note: Incl. Item #33 (2), 42, 43, 44 (2).

$

$

Currently unavailable

42

Snapper 7021774

Spindle
(Superseded to 7021774YP)

$49.99

$

Usually ships in 2-12 days

0

43

Snapper 7040455

Housing Structure

$

$

Currently unavailable

44

Snapper 7012491

Retaining Ring
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

45

Snapper 7090187

5/16 Lock Washer
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

46

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

47

Snapper 7090227

5/16-24 Lock Nut

$

$

Not available

48

Snapper 31980

Flange

$

$

Currently unavailable

49

Snapper 7090537

5/8-11 Hex Nut
(Superseded to 703912)

Note: Was 90566

$3.49

$

In Stock, Qty 5

0

50

Snapper 7090333

5/8-11 Straight Lock Washer
(Superseded to 7090333YP)

$3.99

$

In Stock, only 1 left!

0

51

Snapper 7090161

3/8-24 x 1-3/4 Cap Screw
(Superseded to 703866)

$4.49

$

In Stock, only 1 left!

0

52

Snapper 7091511

5/16-18 Hex Nut
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

53

Snapper 7090187

5/16 Lock Washer
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

54

Snapper 7090356

5/8-18 Hex Lock Nut
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 19

0

55

Snapper 7014048

Long Foot Pad
(Superseded to 7104571YP)

$17.99

$

In Stock, Qty 5

0

56

Snapper 7014248

Seal

$

$

Currently unavailable

57

Snapper 7014247

1/4-28 Grease Fitting
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

?58

Snapper 50833

42" Deck Assembly

$

$

Currently unavailable

?59

Snapper 12910

Hinge

$

$

Currently unavailable

?60

Snapper 12582

1-3/4" Leveling Block

$

$

Currently unavailable

?61

Snapper 12583

1-1/2" Leveling Block

$

$

Currently unavailable
