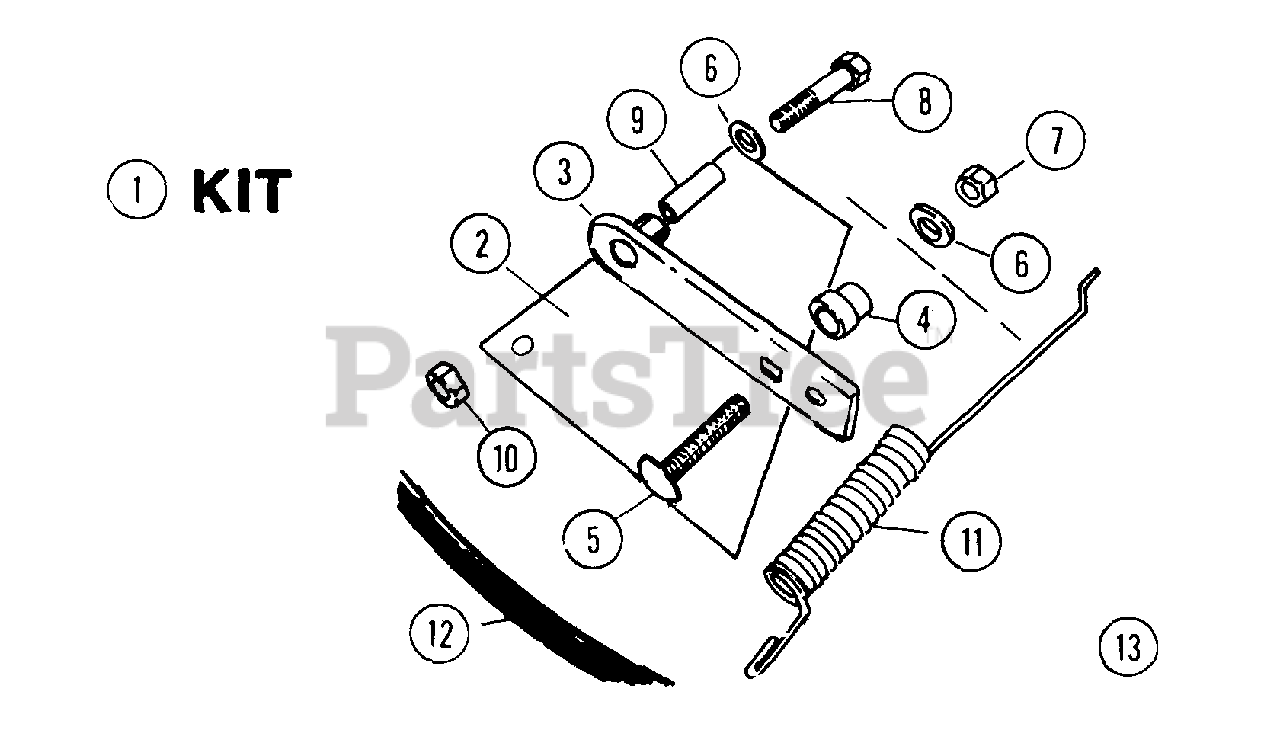

42113S (89884) - Snapper 42" Rear-Engine Riding Mower, 11hp Belt Idler Kit Parts Diagram

42" Rear-Engine Riding Mower, 11hp

Belt Idler Kit Parts Diagram

  • Title

1

Snapper 60462

KIT, Deck Belt Idler Spring

Note: (Includes following items)

$

$

Currently unavailable

2

Snapper 32136

SHIELD, Adjusting Slot Cover

$

$

Currently unavailable

3

Snapper 40469

ARM, Idler

$

$

Currently unavailable

4

Snapper 7021832

SPACER

$

$

Not available

5

Snapper 7090497

BOLT, 3/8Cx1-1/2 Carriage

$

$

Not available

6

Snapper 7090122

WASHER, 3/8 SAE (Flat)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7091302

NUT, 3/8C Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 7090167

CAPSCREW, 3/8Fx2 Hex Head
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper 21834

BUSHING

$

$

Currently unavailable

10

Snapper 7090289

LOCKNUT, 3/8F Hex
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

11

Snapper 7013942

SPRING

$

$

Not available

12

Snapper 7012524

BELT, Deck
(Superseded to 7012524YP)

$56.99

$

Usually ships in 2-12 days

0

13

Snapper 13987

INSTRUCTION, Kit Installation

$

$

Currently unavailable
