4211 H (1691051) - Simplicity Lawn Tractor, 11hp Front Axle Group - Early Models Parts Diagram

Lawn Tractor, 11hp

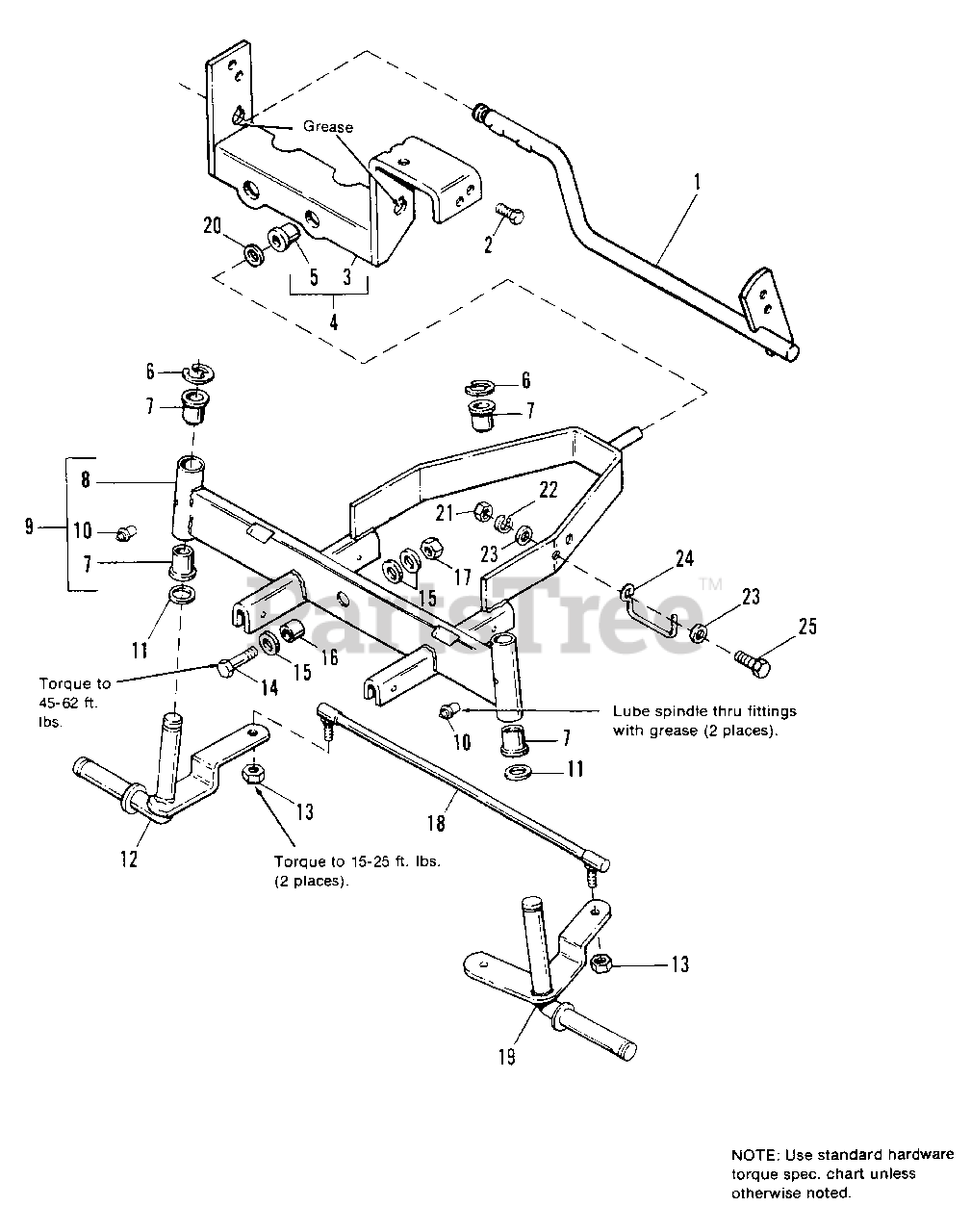

Front Axle Group - Early Models Parts Diagram

  • Title
1

Simplicity 1672012

LEVER ASSY., Brake

$

$

Not available

2

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

3

SUPPORT ASSY., Axle, Rear (See Ref. No. 4)

$

$

Not available

4

Simplicity 1665601

SUPPORT ASSY., Rear w/Bushing (Includes Ref. No. 3 & 5)

$

$

Not available

$4.49

$

In Stock, only 3 left!

0

6

Simplicity 2827794SM

"E" RING, Ext. 3/4

$3.49

$

In Stock, Qty 16

0

$4.99

$

In Stock, Qty 20+

0

8

AXLE SUB ASSY., (See Ref. No. 9)

$

$

Not available

9

Simplicity 1685226

AXLE ASSY., Front (Includes Ref. No. 7, 8 & 10)

$

$

Not available

10

Simplicity 2821133SM

FITTING, Lube, Drive Type
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

11

Simplicity 1960114SM

WASHER
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1673325SM

SPINDLE ASSY. R.H.
(Superseded to 1673325ASM)

$170.99

$

Usually ships in 2-12 days

0

13

Simplicity 1668927SM

LOCKNUT, Hex, 3/8-24, Gr. 8

$6.49

$

In Stock, only 1 left!

0

14

Simplicity 1921525SM

CAPSCREW, Hex, 1/2-13 x 1-3/4, Gr. 8

$7.49

$

Usually ships in 2-12 days

0

15

Simplicity 1926192SM

WASHER, 9/16

$19.99

$

Usually ships in 2-12 days

0

16

Simplicity 1671260SM

SPACER
(Superseded to 703450)

$8.49

$

Usually ships in 2-12 days

0

17

Simplicity 1930648SM

LOCKNUT, Hex, 1/2-13

$2.49

$

Usually ships in 2-12 days

0

18

Simplicity 1667247SM

TIE ROD ASSY.

$108.99

$

In Stock, only 1 left!

0

19

Simplicity 1673324SM

SPINDLE ASSY., L.H.

$93.99

$

In Stock, only 1 left!

0

20

Simplicity 1960020SM

WASHER, 5/8

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 6

0

24

Simplicity 1668147SM

GUIDE, Drag Link

$

$

Not available

25

Simplicity 1921333SM

CAPSCREW, Hex Hd., 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0
