4211 H (1690914) - Simplicity 36" Lawn Tractor, 11hp Steering & Front Wheel Group - 1690912 Parts Diagram

36" Lawn Tractor, 11hp

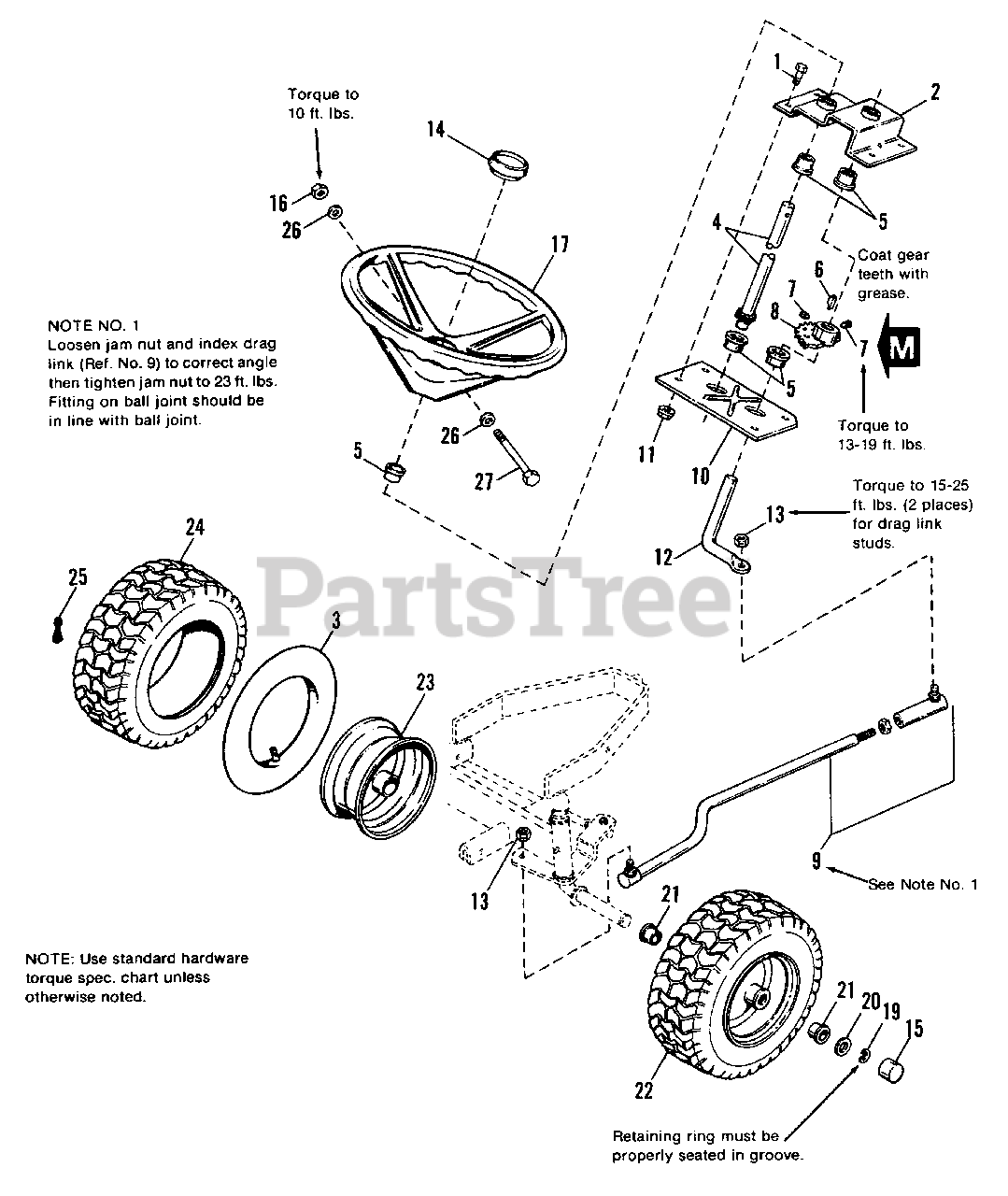

Steering & Front Wheel Group - 1690912 Parts Diagram

  • Title

1

Simplicity 2821332

CAPSCREW, 5/16-18 x 3/4

$

$

Not available

2

Simplicity 1667513SM

TOP PLATE, Steering
(Superseded to 1667513ASM)

$102.99

$

Usually ships in 2-12 days

0

3

Simplicity 1664090SM

TUBE (For Service Only)

$26.99

$

In Stock, only 3 left!

0

4

Simplicity 1701266SM

SHAFT ASSY., Steering

$108.99

$

Usually ships in 2-12 days

0

5

Simplicity 2176440SM

BUSHING

$4.99

$

In Stock, Qty 20+

0

6

Simplicity 1667622SM

KEY

$8.49

$

Usually ships in 2-12 days

0

7

Simplicity 2828721

SETSCREW, 5/16-18 x 1/2, Gr. 8
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 10

0

8

Simplicity 1675388SM

GEAR, Steering
(Superseded to 1685168SM)

$

$

Not available

9

Simplicity 1686663SM

LINK ASSY., Drag

$

$

Not available

10

Simplicity 1652743SM

BASE PLATE, Steering
(Superseded to 1652743ASM)

$

$

Not available

11

Simplicity 2835048

LOCKNUT, Flange, Whiz, 5/16-18

$

$

Not available

12

Simplicity 1674076SM

ROD, Steering

$

$

Not available

13

Simplicity 1668927SM

LOCKNUT, Center, 3/8-24

$6.49

$

In Stock, only 1 left!

0

14

Simplicity 1657017SM

CAP, Steering Wheel

$

$

Not available

15

Simplicity 1673333SM

CAP, Hub, Threaded

$5.49

$

In Stock, Qty 5

0

16

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

17

Simplicity 1686651SM

WHEEL, Steering

$190.99

$

In Stock, only 1 left!

0

18

Simplicity 2818403

NUT, Jam, 3/8-24

$

$

Not available

19

Simplicity 2827794SM

"E" RING, Ext., 3/4

$3.49

$

In Stock, Qty 16

0

20

Simplicity 2860202SM

WASHER

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 2156316SM

BEARING

$11.99

$

In Stock, only 4 left!

0

22

Simplicity 1709856SM

WHEEL & TIRE ASSY., 15 x 6.00-6

$137.99

$

Usually ships in 2-12 days

0

23

Simplicity 1715032

WHEEL, w/o Bearings
(Superseded to 1726301SM)

$82.99

$

In Stock, only 1 left!

0

24

Simplicity 1713166SM

TIRE (Carlisle)

$113.99

$

Usually ships in 2-12 days

0

25

Simplicity 2172353SM

STEM, Valve
(Superseded to 024373MA)

$

$

Not available

26

Simplicity 2819326

WASHER, Plain, 5/16

$

$

Not available

27

Simplicity 2825690

BOLT, Hex, 5/16-18 x 3-1/2

$

$

Not available
