4211 (1690910) - Simplicity Lawn Tractor, 11hp Electrical Group - Mfg. Nos. 1690909 & 1690944 Parts Diagram

Lawn Tractor, 11hp

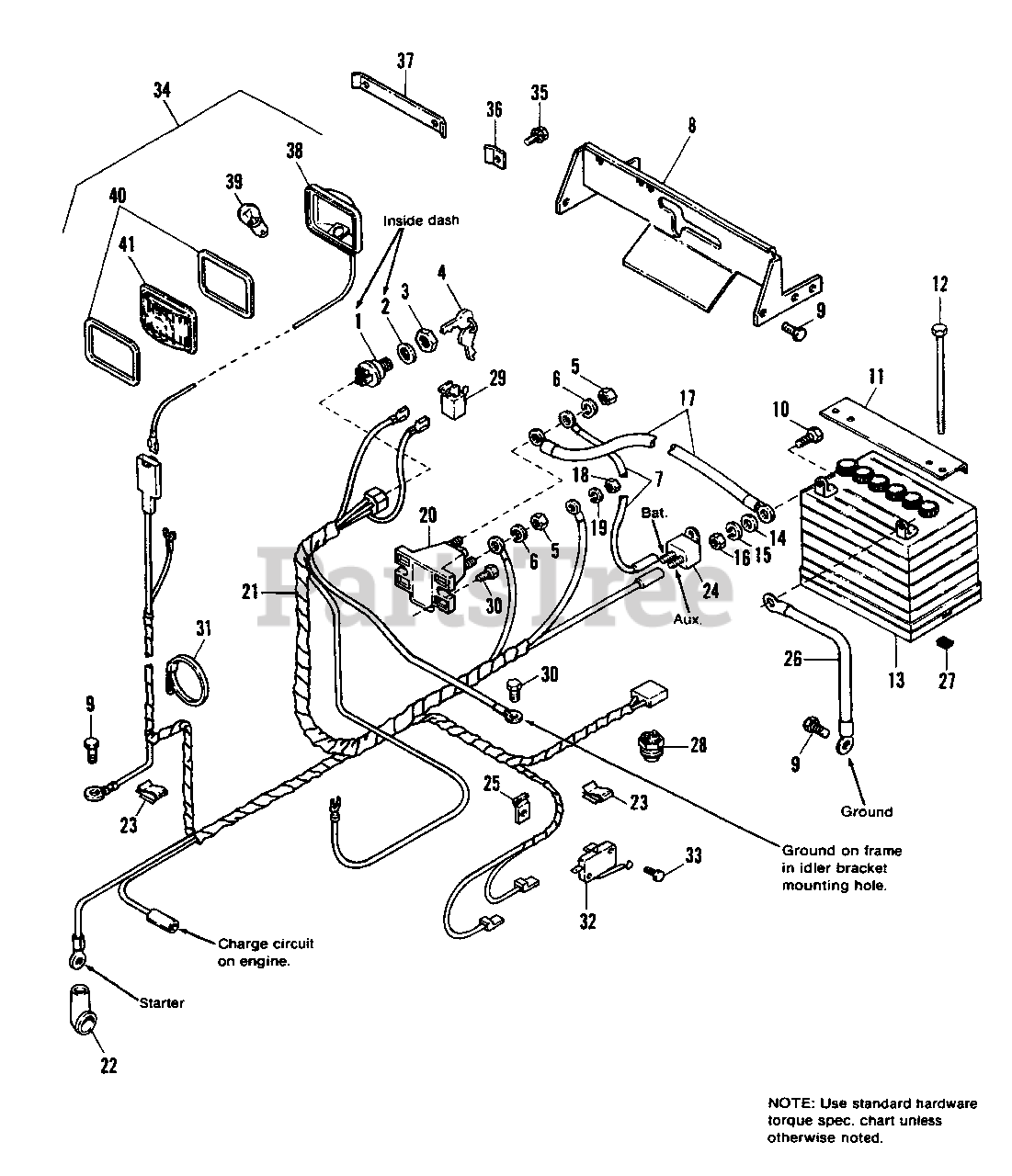

Electrical Group - Mfg. Nos. 1690909 & 1690944 Parts Diagram

  • Title

1

Simplicity 2178280SM

SWITCH, Ignition
(Superseded to 421064MA)

$32.99

$

In Stock, Qty 9

0

2

Simplicity 2818906

LOCKWASHER, Internal Tooth, 5/8

$

$

Not available

3

Simplicity 2122234SM

NUT, 5/8-32
(Superseded to 704229)

$3.49

$

In Stock, only 1 left!

0

4

Simplicity 1717163SM

KEYS, 2

$8.99

$

In Stock, Qty 20+

0

5

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1665237SM

WIRE ASSY.

$11.99

$

In Stock, Qty 7

0

8

Simplicity 1672238

QUADRANT, Shift

$

$

Not available

9

Simplicity 2827428

SCREW, Taptite, 1/4-20 x 3/8

$

$

Not available

10

Simplicity 2823341SM

CAPSCREW, Hex, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

11

Simplicity 1718596

CLAMP, Battery
(Superseded to 1718596ASM)

$36.99

$

Usually ships in 2-12 days

0

12

Simplicity 2828634

CAPSCREW, Hex, 1/4-20 x 7

$

$

Not available

13

Simplicity 1685215SM

BATTERY SERVICE KIT

$

$

Not available

14

Simplicity 2821319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

16

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1707056SM

CABLE

$10.99

$

Usually ships in 2-12 days

0

18

Simplicity 2817415

NUT, Hex, #10-32

$

$

Not available

19

Simplicity 2822711

LOCKWASHER, Ext., #10

$

$

Not available

20

Simplicity 1686981SM

SOLENOID
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 20+

0

21

Simplicity 1675528

HARNESS, Wiring

$

$

Not available

22

Simplicity 2122023SM

COVER, Terminal

$5.99

$

In Stock, Qty 12

0

23

Simplicity 2165073SM

CLIP, Speed

$2.99

$

Usually ships in 2-12 days

0

24

Simplicity 1665238SM

CIRCUIT BREAKER

$14.99

$

In Stock, Qty 20+

0

25

Simplicity 1932771SM

CLIP, Wire

$3.99

$

Usually ships in 2-12 days

0

26

Simplicity 1603618SM

CABLE

$11.99

$

In Stock, only 3 left!

0

27

Simplicity 2826022

NUT, Retainer, 1/4-20

$

$

Not available

28

Simplicity 1654634SM

SWITCH, PTO

$46.99

$

Usually ships in 2-12 days

0

29

Simplicity 2122184SM

SWITCH ASSY.

$22.99

$

Usually ships in 2-12 days

0

30

Simplicity 2825592SM

SCREW, Taptite, 1/4-20 x 3/4

$2.99

$

Usually ships in 2-12 days

0

31

Simplicity 2832747SM

TIE, Cable

$3.99

$

Usually ships in 2-12 days

0

32

Simplicity 1686951SM

SWITCH, Interlock

$

$

Not available

33

Simplicity 2835944

SCREW, Taptite, #5-40 x 3/4

$

$

Not available

34

Simplicity 1665934SM

LIGHT ASSY.

$

$

Not available

35

Simplicity 1960001SM

SCREW, Plastite, #10-14 x 1/2
(Superseded to 703062)

$4.49

$

Usually ships in 2-12 days

0

36

Simplicity 1654636

CLIP, Headlight, Side

$

$

Not available

37

Simplicity 1657553

CLIP, Headlight, Center

$

$

Not available

38

Simplicity 1665934SM

REFLECTOR ASSY.

$

$

Not available

39

BULB #199

$

$

Not available

40

Simplicity 1654662SM

GASKET

$

$

Not available

41

Simplicity 1665934SM

LENS, Plastic, Clear

$

$

Not available
