4211 (1690858) - Simplicity Lawn Tractor, 11hp Frame Group Parts Diagram

Lawn Tractor, 11hp

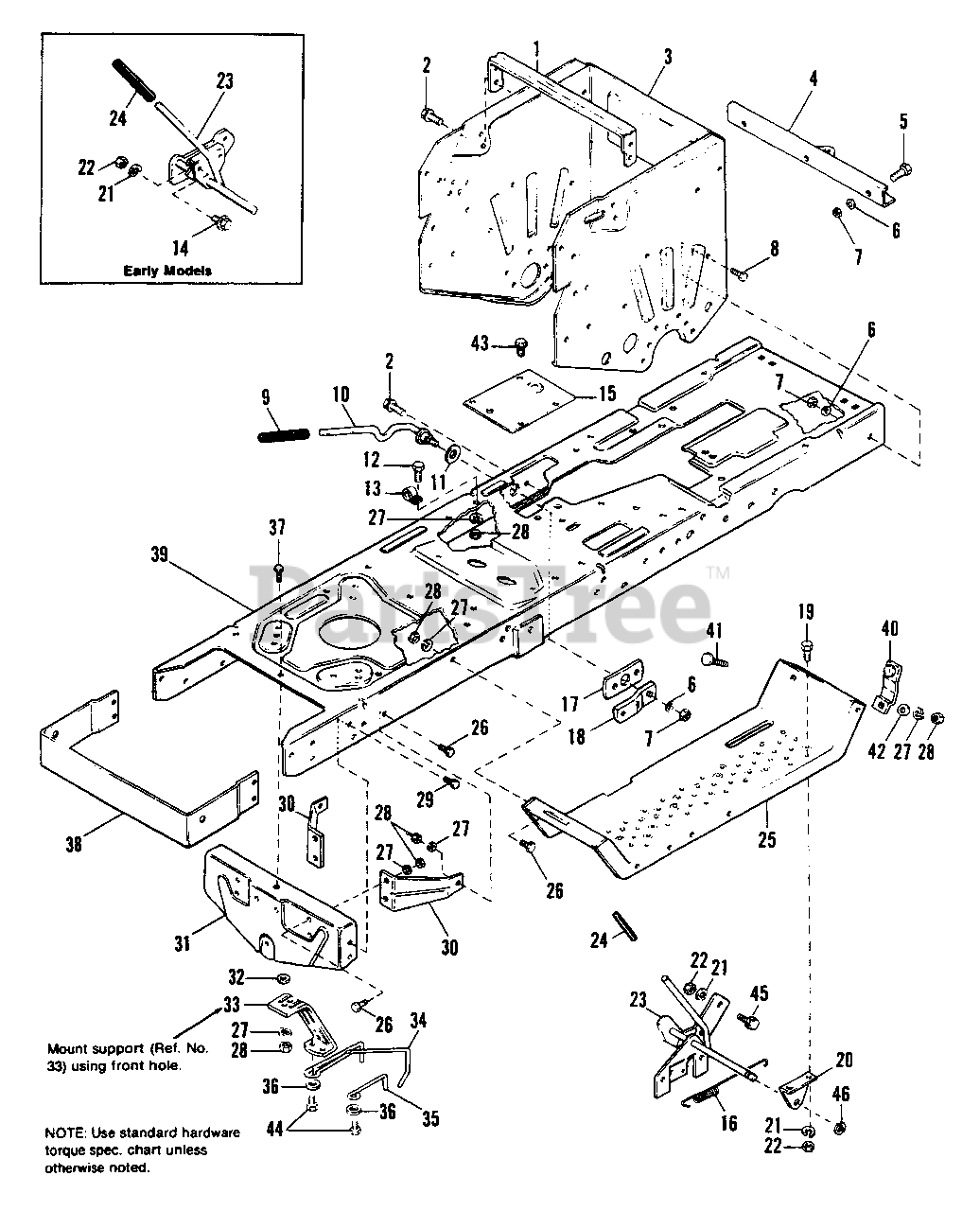

Frame Group Parts Diagram

  • Title

1

Simplicity 1654707

BRACE, Seat

$

$

Not available

2

Simplicity 2824856

SCREW, Taptite, 5/16-18 x 1/2

$

$

Not available

3

Simplicity 1671749

SUPPORT, Axle Wrapper

$

$

Not available

4

Simplicity 1655591SM

BAR, Draw
(Superseded to 1655591ASM)

$33.99

$

Usually ships in 2-12 days

0

5

Simplicity 2821210

CAPSCREW, Hex, 3/8-16 x 1

$

$

Not available

6

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

7

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

8

Simplicity 2821965

CAPSCREW, Hex, 3/8-16 x 3/4

$

$

Not available

9

Simplicity 2172038SM

GRIP, Handle
(Superseded to 1732470SM)

$19.99

$

In Stock, Qty 8

0

10

Simplicity 1686647SM

HANDLE, Lift

$198.99

$

Usually ships in 2-12 days

0

11

Simplicity 2156116

WASHER

$

$

Not available

12

Simplicity 2821977

CAPSCREW, Hex, 5/16-18 x 1-1/4

$

$

Not available

13

Simplicity 122186

CLAMP

$

$

Not available

14

Simplicity 936517

CAPSCREW, Hex Washer Hd., 1/4 20 x 5/8

$

$

Not available

15

Simplicity 1668970

PLATE, Adaptor

$

$

Not available

16

Simplicity 1673911SM

SPRING, Extension (Used on 1690840 after serial no. 3329 and 1690909 after serial no. 2607.)

$21.99

$

Usually ships in 2-12 days

0

17

Simplicity 1656754SM

BAR, Support
(Superseded to 1656754ASM)

$7.49

$

In Stock, only 1 left!

0

18

Simplicity 1656755SM

ARM, Support
(Superseded to 1656755ASM)

$6.99

$

Usually ships in 2-12 days

0

19

Simplicity 2821959

CAPSCREW, Hex, 1/4-20 x 5/8

$

$

Not available

20

Simplicity 1654783

SUPPORT, Clutch

$

$

Not available

21

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

22

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 1667885

LEVER ASSY., Clutch PTO (Used on 1690840 before serial no. 3330 and on 1690909 before serial no. 2608 and on all 1690843.)

$

$

Not available

23

Simplicity 1673910

LEVER ASSY., Clutch, PTO (Used on 1690840 after serial no. 3329 and on 1690909 after serial no. 2607.)

$

$

Not available

24

Simplicity 2176934SM

GRIP, Handle

$3.99

$

Usually ships in 2-12 days

0

25

Simplicity 1674141

FOOTREST

$

$

Not available

26

Simplicity 2821332

CAPSCREW, Hex, 5/16-18 x 3/4

$

$

Not available

27

Simplicity 1917356SM

LOCKWASHER. 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

28

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

29

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 1655076

BRACE, Axle Support

$

$

Not available

31

Simplicity 1664034

SUPPORT, Axle

$

$

Not available

32

Simplicity 2819381

WASHER, Plain, 11/32-1 x 10 Ga.

$

$

Not available

33

Simplicity 1665803SM

SUPPORT

$

$

Not available

34

Simplicity 1672118SM

STOP, Belt

$9.99

$

Usually ships in 2-12 days

0

35

Simplicity 1665812SM

STOP, Belt

$20.99

$

In Stock, only 1 left!

0

36

Simplicity 2817377

WASHER, 1/4

$

$

Not available

37

Simplicity 2821333

CAPSCREW, Hex Hd., 5/16-18 x 1

$

$

Not available

38

Simplicity 1656791

SUPPORT

$

$

Not available

39

Simplicity 1674420

FRAME

$

$

Not available

40

Simplicity 1672075

LATCH ASSY.

$

$

Not available

41

Simplicity 2820562

CARRIAGE BOLT, 5/16-18 x 3/4

$

$

Not available

42

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

43

Simplicity 2825003

SCREW, Taptite, 1/4-20 x 1/2

$

$

Not available

44

Simplicity 2823325

CAPSCREW, Hex, 5/16-18 x 7/8

$

$

Not available

45

Simplicity 2827429

SCREW, Taptite, 1/4-20 x 5/8 (Used on 1690840 after serial no. 3329 and 1690909 after serial no. 2607.)

$

$

Not available

46

Simplicity 2158399SM

RING, Retaining (Used on 1690840 after serial no. 3329 and 1690909 after serial no. 2607.)
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0
