4211 (1690762) - Simplicity Lawn Tractor, 11hp Linkage & Control Group - 1690759 S/N 3827 & Below Parts Diagram

Lawn Tractor, 11hp

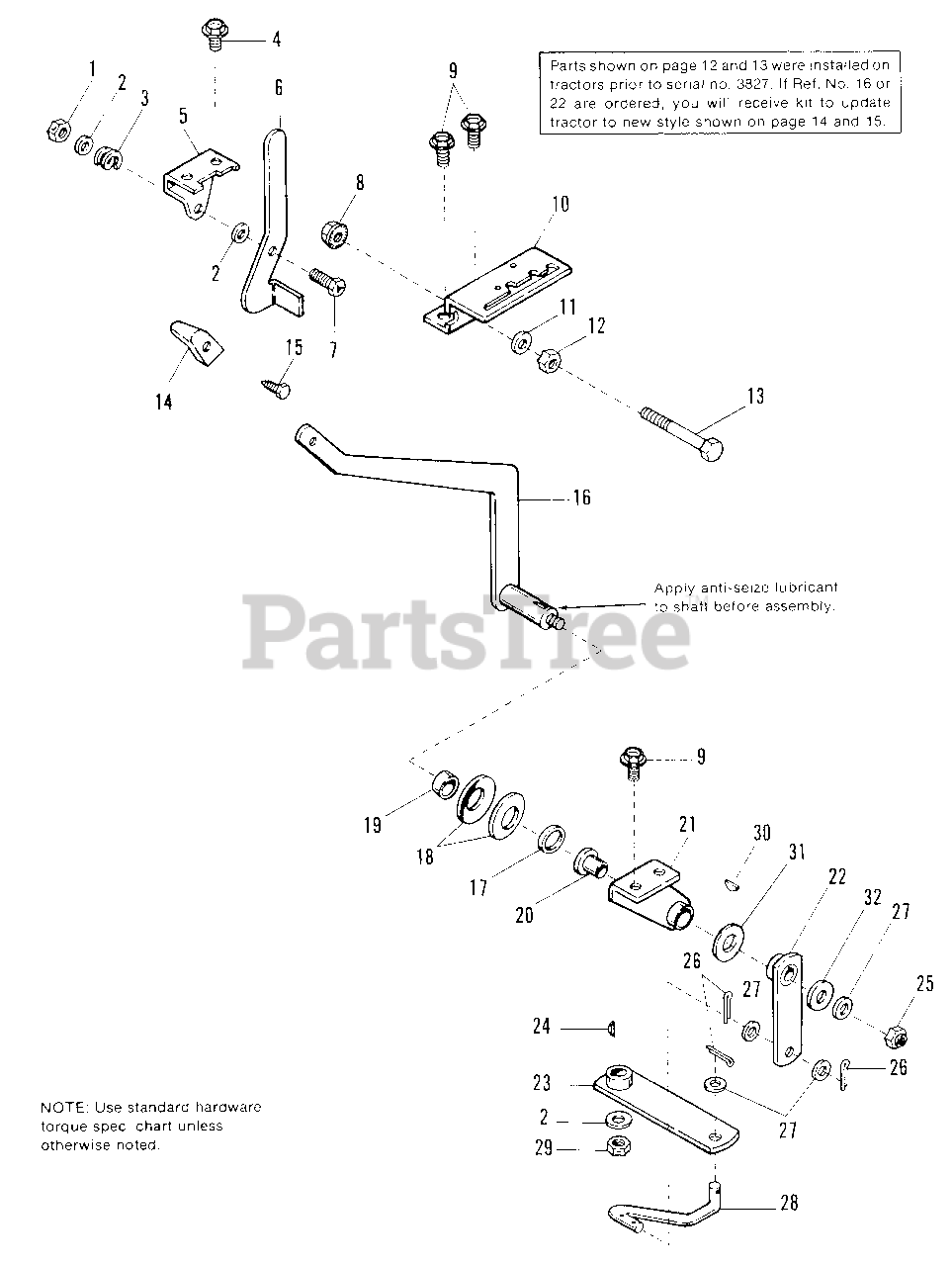

Linkage & Control Group - 1690759 S/N 3827 & Below Parts Diagram

  • Title

1

Simplicity 2823362

NUT, Hex, Lock, 5/16-18

$

$

Not available

2

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

3

Simplicity 930667

WASHER, Spring, Double, 3/8

$

$

Not available

4

Simplicity 2825003

SCREW, Taptite, 1/4-20 x 1/2

$

$

Not available

5

Simplicity 1671021

SUPPORT, Handle, Neutral

$

$

Not available

6

Simplicity 1671020

HANDLE, Neutral

$

$

Not available

7

Simplicity 2821977

CAPSCREW, Hex, 5/16-18 x 1-1/4

$

$

Not available

8

Simplicity 2830642

NUT, Hex, Flange Lock, 1/4-20

$

$

Not available

9

Simplicity 2824856

SCREW, Taptite, 5/16-18 x 3/4

$

$

Not available

10

Simplicity 1671009

QUADRANT

$

$

Not available

11

Simplicity 2821319SM

WASHER, Plain
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 2821159

CAPSCREW, Hex, 1/4-20 x 2-1/4

$

$

Not available

14

Simplicity 2171165

KNOB

$

$

Not available

15

Simplicity 2829783

SCREW, Taptite, 1/4-20 x 1

$

$

Not available

16

Simplicity 1671890

LEVER ASSY., Control

Note: See serial no. information in box on page 12.

$

$

Not available

17

Simplicity 2173668SM

WASHER, Special

$9.49

$

In Stock, only 2 left!

0

18

Simplicity 1671024

WASHER, Spring

$

$

Not available

19

Simplicity 1671896

SPACER

$

$

Not available

20

Simplicity 1663114SM

BUSHING

$4.49

$

In Stock, only 3 left!

0

21

Simplicity 1671897

SUPPORT ASSY., Control

Note: Ref. No. 21 includes Ref. No. 20

$

$

Not available

22

Simplicity 1671893

ARM ASSY., Control, Upper

Note: See serial no. information in box on page 12.

$

$

Not available

23

Simplicity 1670673

ARM ASSY., Control

$

$

Not available

24

Simplicity 2805119SM

KEY, Woodruff, #3, 1/8 x 1/2

$3.99

$

Usually ships in 2-12 days

0

25

Simplicity 2822694

NUT, Hex, Lock ESNA

$

$

Not available

26

Simplicity 2818447

PIN, Cotter

$

$

Not available

27

Simplicity 2822755

WASHER, Plain, 13/32 x 1
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

28

Simplicity 1671002

LINK, Control

$

$

Not available

29

Simplicity 1930645SM

NUT, Hex. Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

30

Simplicity 2805119SM

KEY, Woodruff, #3, 1/8 x 1/2

$3.99

$

Usually ships in 2-12 days

0

31

Simplicity 1671937

WASHER, Thrust, 16 ga. 5/8 x 1

$

$

Not available

32

Simplicity 173141

WASHER

$

$

Not available
