4210WS (89284) - Snapper 42" Rear-Engine Riding Mower, 10hp Seat, Seat Spring, Fuel Tank Parts Diagram

42" Rear-Engine Riding Mower, 10hp

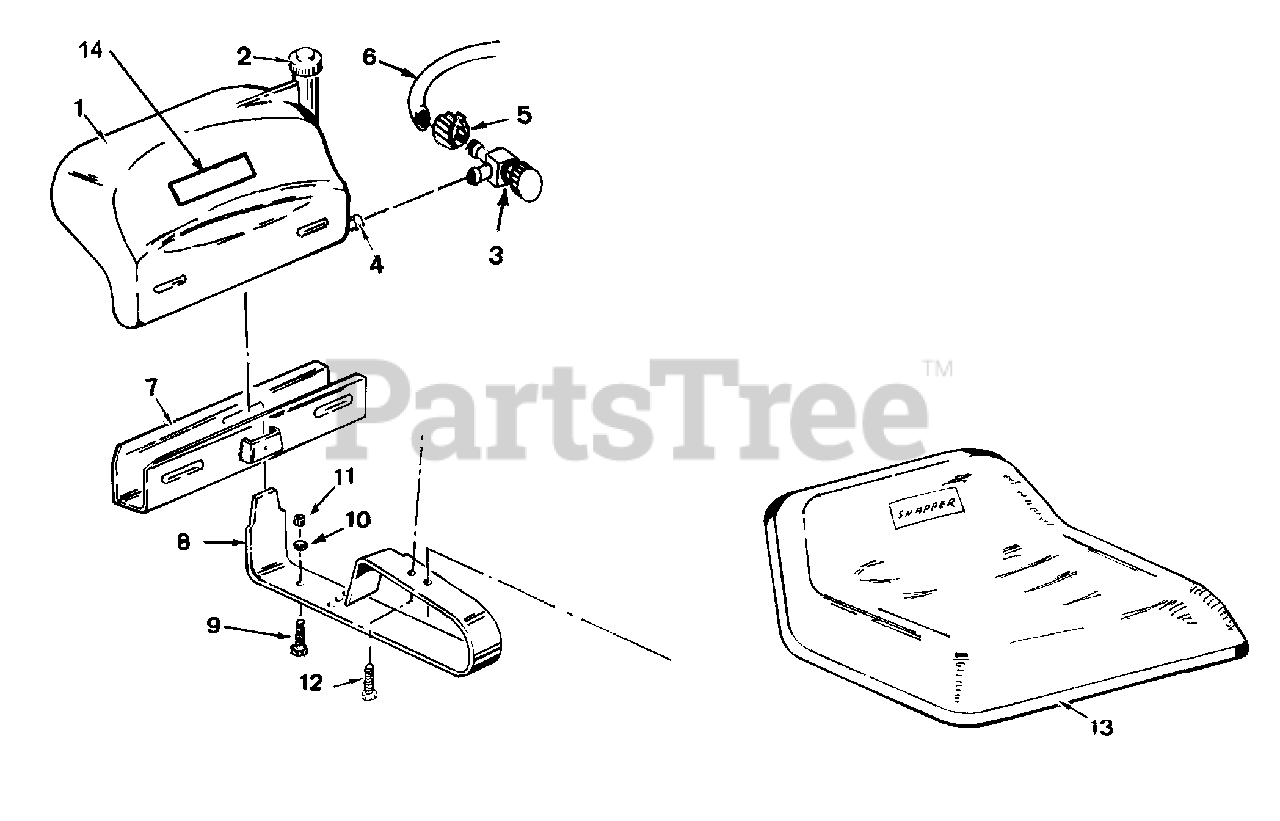

Seat, Seat Spring, Fuel Tank Parts Diagram

  • Title

Snapper 60347

KIT, Seat & Tank Box

$

$

Currently unavailable

Snapper 7060341

KIT, Inboard Tank
(Superseded to 7060341YP)

$199.99

$

Usually ships in 2-12 days

0

1

Snapper 7057243

TANK, Fuel
(Superseded to 7057243YP)

Note: Was 19808

$186.99

$

In Stock, only 1 left!

0

2

Snapper 7012515

CAP, Gas Filler
(Superseded to 7012515YP)

$19.99

$

In Stock, only 4 left!

0

3

Snapper 7012503

VALVE, Fuel Shut-Off
(Superseded to 7012503YP)

$19.99

$

In Stock, only 1 left!

0

4

Snapper 7012337

GROMMET, Fuel Valve
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

5

Snapper 7029900

CLAMP, Fuel Line
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 20+

0

6

Snapper 7012638

HOSE, Fuel
(Superseded to 791766)

Note: Was 12912

$7.99

$

In Stock, Qty 20+

0

7

Snapper 7039607

BRACKET, Tank
(Superseded to 7039607YP)

$51.99

$

Usually ships in 2-12 days

0

8

Snapper 7038333

SPRING, Seat
(Superseded to 7038333YP)

Note: Was 37750

$74.99

$

In Stock, only 1 left!

0

9

Snapper 7091304

CAPSCREW, 3/8-16 x 1
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

10

Snapper 7090390

LOCKWASHER, 3/8 Int. Tooth
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

11

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 7090680

CAPSCREW, 1/2-13 x 7/8 Special Grade 5

Note: Was 90573

$3.49

$

In Stock, only 4 left!

0

13

Snapper 7019978

SEAT, Operator's
(Superseded to 7019978YP)

Note: Was 19519

$243.99

$

In Stock, only 1 left!

0

14

Snapper 18226

DECAL, Fuel Tank

$

$

Currently unavailable
