4210WS (89284) - Snapper 42" Rear-Engine Riding Mower, 10hp Cutting Deck - View B Parts Parts Diagram

42" Rear-Engine Riding Mower, 10hp

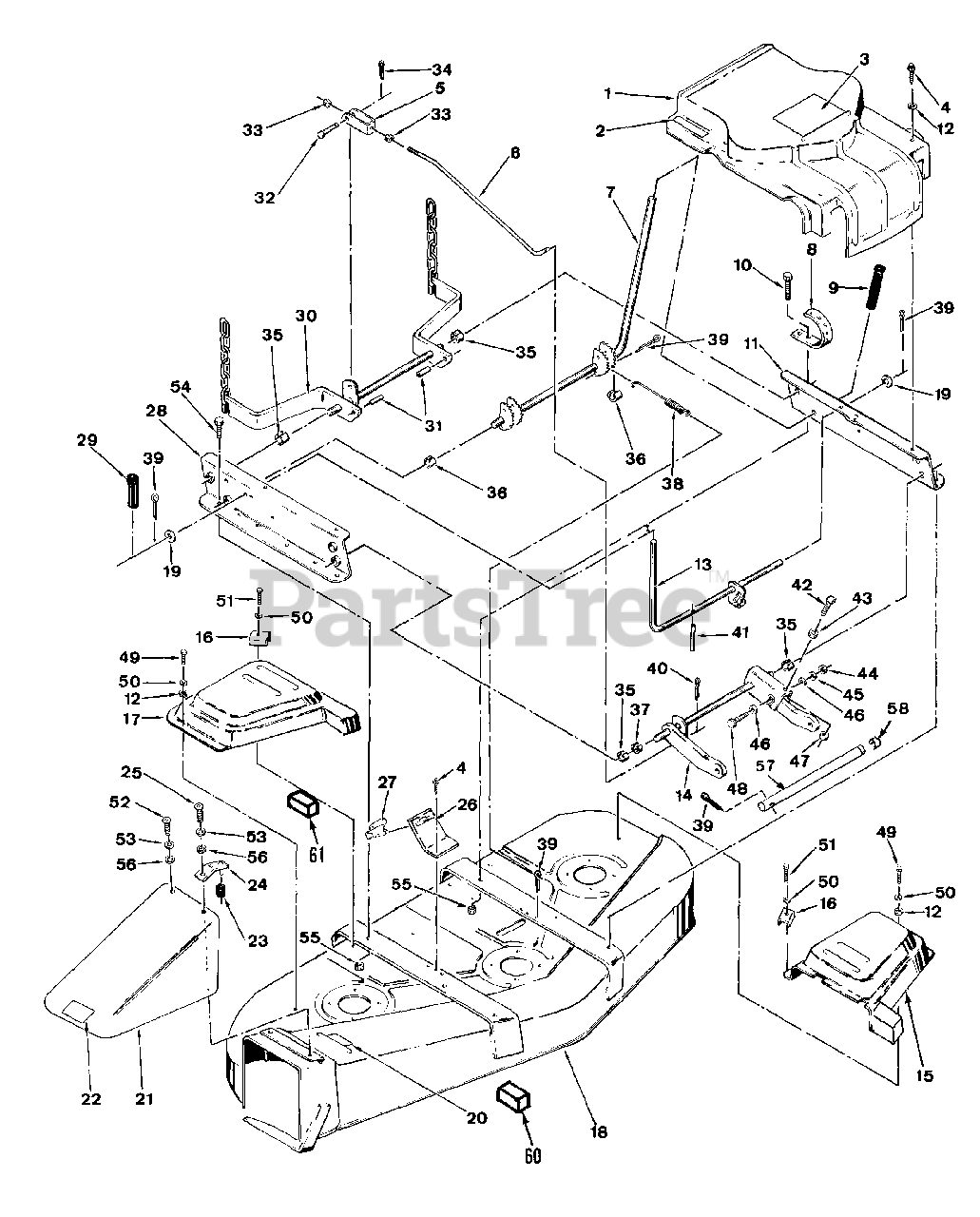

Cutting Deck - View B Parts Parts Diagram

  • Title

1

Snapper 19520

Center Cover

$21.99

$

Usually ships in 2-12 days

0

2

Snapper 7012539

Decal

$

$

Not available

3

Snapper 7012544

Decal - Safety

$

$

Not available

4

Snapper 7091084

1/4 C x 3/8 Self Tapping Screw
(Superseded to 703583)

Note: Was 90302

$4.99

$

In Stock, Qty 20+

0

5

Snapper 7031837

Clevis
(Superseded to 7031837YP)

$27.99

$

Usually ships in 2-12 days

0

6

Snapper 7012535

Timing Rod

$

$

Not available

7

Snapper 7047730

Cam Structure
(Superseded to 7047730YP)

Note: Was 47712

$75.99

$

Usually ships in 2-12 days

0

8

Snapper 7031975

Indicator Plate
(Superseded to 7031975YP)

$39.99

$

Usually ships in 2-12 days

0

9

Snapper 7010684

Handle Grip

$6.99

$

In Stock, Qty 8

0

10

Snapper 7090160

3/8 F x 1 Hex Hd. Capscrew
(Superseded to 7090160YP)

$3.49

$

In Stock, only 2 left!

0

11

Snapper 37754

L. H. Rail

$

$

Currently unavailable

12

Snapper 7091294

1/4 Flat Washer
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

13

Snapper 7040452

Handle Structure

$

$

Currently unavailable

14

Snapper 47729

Front Lift Arm Structure

$

$

Currently unavailable

15

Snapper 7018441

Spindle Cover - L. H.
(Superseded to 7018441YP)

$17.99

$

Usually ships in 2-12 days

0

16

Snapper 7031801

Clip
(Superseded to 7031801YP)

$36.99

$

Usually ships in 2-12 days

0

17

Snapper 7018440

Spindle Cover - R. H.
(Superseded to 7018440YP)

$17.99

$

Usually ships in 2-12 days

0

18

Snapper 49811

Deck Structure
(Superseded to 49811GS)

$1.99

$

Usually ships in 2-12 days

0

19

Snapper 7090250

1/2 SAE Washer
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

20

Snapper 12521

Cut Line Decal

$30.99

$

Usually ships in 2-12 days

0

21

Snapper 12532

Deflector

$

$

Currently unavailable

22

Snapper 12522

Decal

$

$

Currently unavailable

23

Snapper 7012533

Rubber Spacer

$

$

Currently unavailable

24

Snapper 7012534

Spring Arm Assembly

$

$

Currently unavailable

25

Snapper 7090568

5/16-18 x 3/4 Socket Hd Screw

$

$

Currently unavailable

26

Snapper 31987

Switch Plate

$

$

Currently unavailable

27

Snapper 7050810

Switch Assembly
(Superseded to 7050810YP)

$32.99

$

Usually ships in 2-12 days

0

28

Snapper 37755

R. H. Rail

$

$

Currently unavailable

29

Snapper 7012519

Handle Grip

$

$

Not available

30

Snapper 7047728

Rear Lift Arm Structure

$

$

Currently unavailable

31

Snapper 7010737

Roll Pin

$

$

Not available

32

Snapper 7029687

PIN, 3/8 x 1 1/16" Clevis
(Superseded to 7029687YP)

Note: Was 10736

$7.99

$

In Stock, only 1 left!

0

33

Snapper 7091630

3/8 24 Hex Nut
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, only 1 left!

0

34

Snapper 7091597

Cotter Pin - 3/32 x 3/4
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

35

Snapper 7012068

Blue Ring
(Superseded to 7012068YP)

$5.99

$

Usually ships in 2-12 days

0

36

Snapper 7010996

White Ring
(Superseded to 704009)

$3.99

$

Usually ships in 2-12 days

0

37

Snapper 7012067

Red Ring
(Superseded to 7012067YP)

$4.49

$

In Stock, only 2 left!

0

38

Snapper 7011074

Spring

$

$

Not available

39

Snapper 7091516

Cotter Pin - 5/32 x 1
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 11

0

40

Snapper 7091598

Cotter Pin
(Superseded to 703958)

Note: Was 90365

$4.49

$

In Stock, only 4 left!

0

41

Snapper 7010172

Roll Pin, 3/16 x 1 5/8

$1.99

$

In Stock, only 1 left!

0

42

Snapper 7090954

5/16-18 x 1-1/4 Sq Hd Setscrew
(Superseded to 7090954YP)

Note: Was 90210

$3.49

$

Usually ships in 2-12 days

0

43

Snapper 7090197

5/16 Jam Nut
(Superseded to 7090197YP)

$4.49

$

Usually ships in 2-12 days

0

44

Snapper 7091630

3/8 Hex Nut
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, only 1 left!

0

45

Snapper 7090118

3/8 Lock Washer
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

46

Snapper 7090122

3/8 Flat Washer
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

47

Snapper 7091511

5/16 Hex Nut
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

48

Snapper 7090163

3/8-24 x l-1 /4 Hex Hd Capscrew

$

$

Not available

49

Snapper 7090071

1/4 C x 1/2 Hex Hd Capscrew
(Superseded to 703818)

$3.49

$

In Stock, only 1 left!

0

50

Snapper 7090052

1/4 Lock Washer
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

51

Snapper 90512

1/4 C x 1 Hex Hd Capscrew

$

$

Currently unavailable

52

Snapper 7090569

5/16-18 x 1/2 Socket Hd Screw

$

$

Currently unavailable

53

Snapper 7090187

5/16 Lock Washer
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

54

Snapper 7090292

3/8 F x 3/4 Hex Hd Capscrew

$2.99

$

In Stock, only 3 left!

0

55

Snapper 7090289

3/4-24 Lock Nut
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

56

Snapper 7090188

5/16 Flat Washer
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

57

Snapper 7020882

Support Rod

$23.99

$

Usually ships in 2-12 days

0

58

Snapper 7010739

RING, 5/8" External Retaining
(Superseded to 7010739SM)

$3.49

$

In Stock, only 2 left!

0

?59

Snapper 12910

Hinge

$

$

Currently unavailable

60

Snapper 12582

1-3/4" Leveling Block

$

$

Currently unavailable

61

Snapper 12583

1-1/2" Leveling Block

$

$

Currently unavailable
