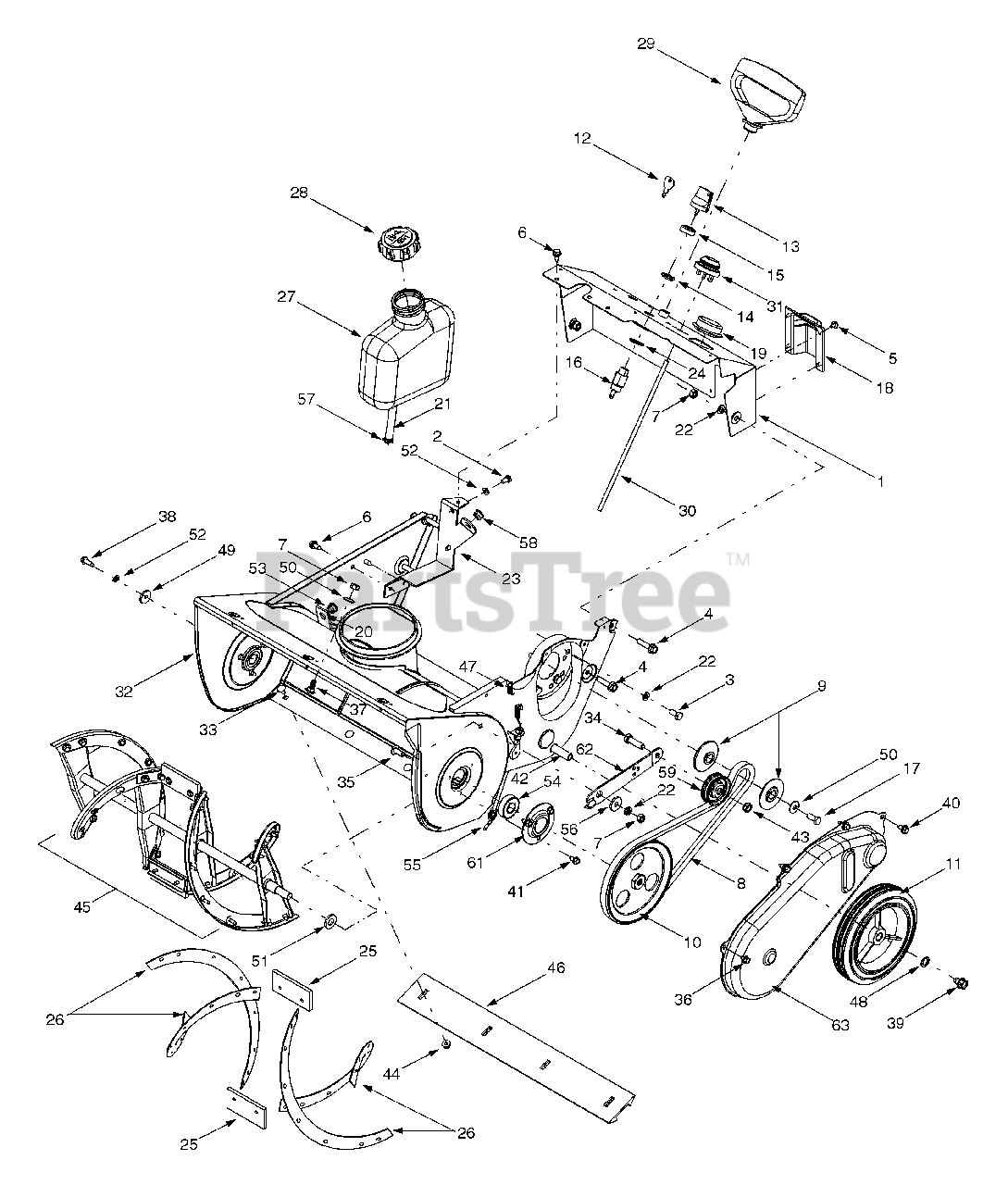

421 R (31A-152-100) - Cub Cadet 21" Snow Thrower (2002) General Assembly Parts Diagram

21" Snow Thrower

General Assembly Parts Diagram

  • Title

1

Cub Cadet 684-0054A

Dash Assembly

Note: (Includes Plastic Cup for Mitten Grip)

Variations

Cub Cadet 684-0054A-0650

DASH PANEL 21" SNT - RED METALLIC (0650)

$

$

Not available

Cub Cadet 684-0054A-0716

DASH PANEL 21" SNT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

2

Cub Cadet 710-3013

Hex Cap Screw, 1/4-20 x .50

$4.99

$

In Stock, Qty 11

0

3

Cub Cadet 710-3025

Hex Cap Screw, 5/16-24 x .625

$3.99

$

In Stock, Qty 8

0

4

Cub Cadet 710-1090

Hex Flange Screw, 5/16-18 x 1.25

$3.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-1268

Screw, #10-16 x .375

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1652

Self-tapping Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 754-0101A

Drive Belt
(Superseded to 954-0101A)

$28.99

$

In Stock, Qty 20+

0

9

Cub Cadet 756-0416B

Pulley Half-.625 x 2.25
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

10

Cub Cadet 756-0475

Auger Drive Pulley

$79.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 734-1176

Wheel Assembly, 7 x 1.5

$

$

Not available

12

Cub Cadet 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

13

Cub Cadet 725-1341B

Ignition Key w/ Plastic Cover

$10.99

$

In Stock, only 1 left!

0

14

Cub Cadet 725-1346

Ignition Nut, 5/8-32
(Superseded to 925-1346)

$

$

Not available

15

Cub Cadet 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0

16

Cub Cadet 725-1425

Ignition Switch
(Superseded to 925-1425)

$35.99

$

In Stock, Qty 6

0

17

Cub Cadet 710-0157

Hex Cap Screw, 5/16-24 x .75

$4.49

$

In Stock, Qty 18

0

18

Cub Cadet 731-1089A

Choke Cover

$

$

Not available

19

Cub Cadet 731-1133C

Spark Plug Cap

$

$

Not available

20

Cub Cadet 784-5720

Chute Crank Bracket
(Superseded to 784-5720-0637)

Variations

Cub Cadet 784-5720-0637

BRACKET CRANK - POWDER BLACK (0637)

$

$

Not available

$

$

21

Cub Cadet 751-0535

Fuel Line Hose

$

$

Currently unavailable

22

Cub Cadet 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 705-5139A

Fuel Tank Support Bracket
(Superseded to 705-5139A-0637)

Variations

Cub Cadet 705-5139A-0637

BRACKET-FUEL TANK - POWDER BLACK (0637)

$

$

Not available

$

$

24

Cub Cadet 736-0225

Internal Lock Washer, 5/8 x 1.058 x .046

$4.49

$

In Stock, only 2 left!

0

25

Cub Cadet 731-0782

Rubber Paddle
(Superseded to 931-0782A)

$6.99

$

In Stock, Qty 10

0

26

Cub Cadet 731-0780A

Rubber Paddle/Spiral
(Superseded to 931-0780A)

$27.99

$

In Stock, Qty 14

0

27

Cub Cadet 751-0540A

Gas Tank, 2 qt.

$

$

Not available

28

Cub Cadet 751-0800

Fuel Cap (50:1 Red Print)
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 7510009636

Recoil Handle (Mitten Grip)

$

$

Not available

30

Cub Cadet 723-0354

Primer Tube
(Superseded to TC-32180C)

$6.99

$

In Stock, only 4 left!

0

31

Cub Cadet 751-0354

Primer Bulb
(Superseded to TC-570682A)

$10.99

$

In Stock, only 4 left!

0

32

Cub Cadet 684-0114A

Auger Housing Assembly

Variations

Cub Cadet 684-0114A-0483

21" HOUSING - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 684-0114A-0498

21" HOUSING - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 684-0114A-0629

21" HOUSING - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 684-0114A-0638

21" HOUSING - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 684-0114A-0650

21" HOUSING - RED METALLIC (0650)

$

$

Not available

Cub Cadet 684-0114A-0662

21" HOUSING - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 684-0114A-0665

21" HOUSING - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 684-0114A-0684

21" HOUSING - ZINC YELLOW (0684)

$

$

Not available

Cub Cadet 684-0114A-0687

21" HOUSING - PINE GREEN (0687)

$

$

Not available

Cub Cadet 684-0114A-0691

21" HOUSING - BLACK JACK (0691)

$

$

Not available

Cub Cadet 684-0114A-0709

21" HOUSING - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 684-0114A-0716

21" HOUSING - CUB YELLOW-99 (0716)

$

$

Not available

$

$

33

Cub Cadet 710-0167

Screw, 1/4-20 x .50
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

34

Cub Cadet 710-0191

Cap Screw, 3/8-24 x 1.25

$4.99

$

In Stock, Qty 9

0

35

Cub Cadet 710-0323

Trus Machine Screw, 5/16-18 x .75

$4.99

$

In Stock, only 2 left!

0

36

Cub Cadet 710-0352

Hex Index Washer Screw, 1/4-14 x .375

$4.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 710-0451

Carriage Bolt, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 710-0642

Self-tapping Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 710-0773

Self-tapping Screw 3/8-16 x .50

$7.49

$

In Stock, only 3 left!

0

40

Cub Cadet 710-0896

Self-tapping Screw, 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 710-1005

Self-tapping Screw, 1/4-14 x .50
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 710-0848A

Axle, .35 x .5 x 20.75

$

$

Currently unavailable

43

Cub Cadet 712-0116

Jam Lock Nut, 3/8-24

$4.99

$

In Stock, Qty 6

0

44

Cub Cadet 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 784-5485

Solid Shaft Auger Assembly
(Superseded to 984-04027A)

Variations

Cub Cadet 784-5485-0498

Auger Assembly, 21" Complete - OLD CUB YELLOW (0498)

$196.99

$

In Stock, Qty 10

0

Cub Cadet 784-5485-0662

Auger Assembly, 21" Complete - OYSTER GRAY (0662)

$196.99

$

In Stock, Qty 10

0

Cub Cadet 784-5485-0688

Auger Assembly, 21" Complete - SPRING GREEN (0688)

$196.99

$

In Stock, Qty 10

0

$196.99

$

In Stock, Qty 10

0

46

Cub Cadet 731-1033

Shave Plate, 2.66 x 19.88

$47.99

$

In Stock, Qty 13

0

47

Cub Cadet 732-0357A

Extension Spring, .33 x 1.12

$4.49

$

In Stock, Qty 13

0

48

Cub Cadet 736-0108

Flat Washer, .51 x .75 x .033

$6.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 736-0176

Flat Washer, .265 x .938 x .120

$4.99

$

In Stock, only 4 left!

0

50

Cub Cadet 736-0242

Belleville Washer, .340 x .872

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 736-0326

Flat Washer, .51 x 1.0 x .125

$4.49

$

In Stock, only 4 left!

0

52

Cub Cadet 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

53

Cub Cadet 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

54

Cub Cadet 741-0600

Ball Bearing, 17mm x 40mm x 12mm
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

55

Cub Cadet 746-0910A

Cable, 41.78"
(Superseded to 946-0910A)

Note: (Includes end spring)

$29.99

$

In Stock, Qty 18

0

56

Cub Cadet 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 726-0205

Hose Clamp, .49

$3.99

$

In Stock, Qty 20+

0

58

Cub Cadet 741-0475

Plastic Bushing, .38
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

59

Cub Cadet 756-0313

Flat Idler Pulley, 1.88 x .50 x 2.12

$26.99

$

In Stock, Qty 5

0

?60

Cub Cadet 710-0895

Hi-Lo Self-tapping Screw, 1/4-15 x .75

$6.49

$

In Stock, only 4 left!

0

61

Cub Cadet 784-5174

Bearing Cup
(Superseded to 784-5174-0637)

Variations

Cub Cadet 784-5174-0637

Bearing Cup - POWDER BLACK (0637)

$

$

Not available

$

$

62

Cub Cadet 784-5175B

Brake Idler Bracket
(Superseded to 753-05156)

Variations

Cub Cadet 784-5175B-0637

USE 753-05156 KIT:IDLER SINGL - POWDER BLACK (0637)

$

$

Not available

$

$

63

Cub Cadet 784-5176

Belt Cover
(Superseded to 790-00045C-0637)

Variations

Cub Cadet 784-5176-0483

Belt Cover, Black - CHARCOAL GRAY (0483)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0629

Belt Cover, Black - SILVER FLAKE (0629)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0637

Belt Cover, Black - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0716

Belt Cover, Black - CUB YELLOW-99 (0716)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0498

USE 790-00045A COVER-BELT - OLD CUB YELLOW (0498)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0650

USE 790-00045A COVER-BELT - RED METALLIC (0650)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0662

USE 790-00045A COVER-BELT - OYSTER GRAY (0662)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0674

USE 790-00045A COVER-BELT - YARDMAN YELLOW (0674)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5176-0691

USE 790-00045C-0691 COVER-BEL - BLACK JACK (0691)

$

$

Not available

Cub Cadet 784-5176-0665

USE 790-00045C-0665 COVER-BEL - YARDMAN GREEN (0665)

$

$

Not available

$57.99

$

Usually ships in 3-6 days

0
