421 R (31A-152-100) - Cub Cadet 21" Snow Thrower (2001) Handle Parts Diagram

21" Snow Thrower

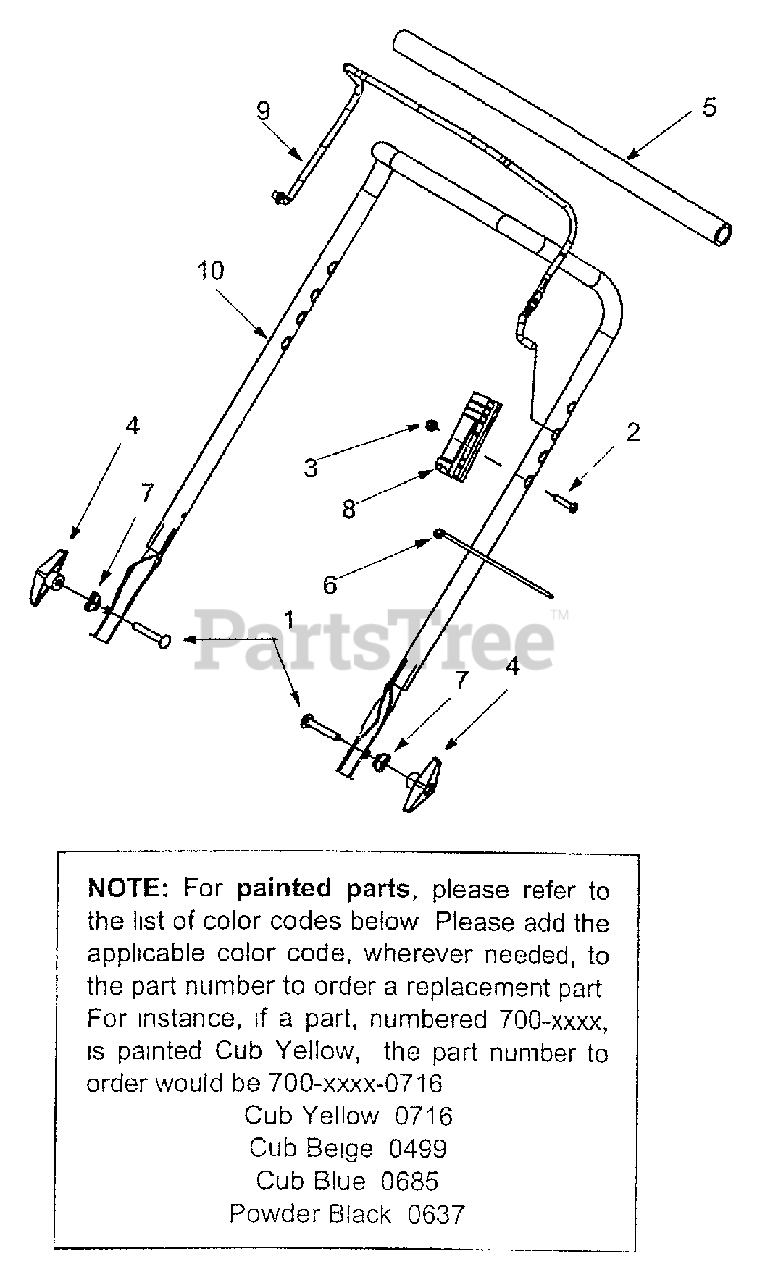

Handle Parts Diagram

  • Title

1

Cub Cadet 710-0487

Carriage Screw

$7.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-1270

Oval C-Sunk Machine Screw

$4.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 712-0324

Hex Lock Nut

$3.99

$

In Stock, Qty 16

0

4

Cub Cadet 720-0284

Wing Nut

$6.99

$

In Stock, Qty 20+

0

5

Cub Cadet 720-0295

Foam Grip: Handle

$33.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 11

0

8

Cub Cadet 746-0883

Cable Housing w/o Throttle

$16.99

$

In Stock, only 3 left!

0

9

Cub Cadet 747-0956

Auger Bail: Gull Wing

Variations

Cub Cadet 747-0956-0637

Auger Drive Bail, 2 Holes - POWDER BLACK (0637)

$55.99

$

Usually ships in 3-6 days

0

Cub Cadet 747-0956-0638

Auger Drive Bail, 2 Holes - MTD/TROY-BILT RED (0638)

$55.99

$

Usually ships in 3-6 days

0

$51.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 749-0711A

Upper Handle: Gull Wing

Variations

Cub Cadet 749-0711A-0637

UPPER HANDLE (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 749-0711A-0638

UPPER HANDLE - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$
