421 R (31A-152-100) - Cub Cadet 21" Snow Thrower (2000) Drive & Fuel Tank Parts Diagram

21" Snow Thrower

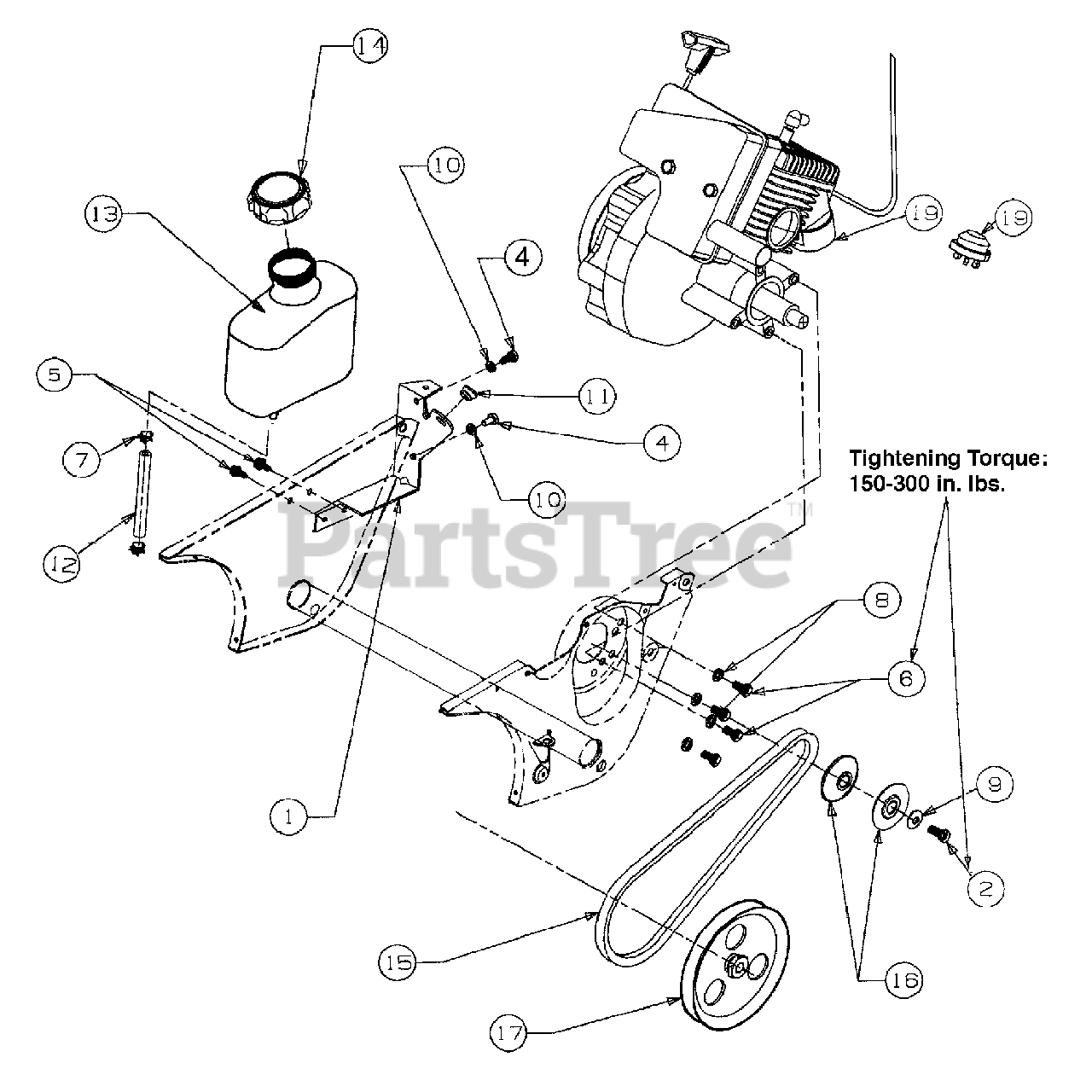

Drive & Fuel Tank Parts Diagram

  • Title

1

Cub Cadet 705-5139

Support Bracket, Gas Tank

$

$

Not available

2

Cub Cadet 710-0157

Hex Cap Screw 5/16-24 x 0.75"

Note: Tightening Torque: 150-300 in. lbs.

$4.49

$

In Stock, Qty 8

0

4

Cub Cadet 710-3013

Hex Screw 1/4-20 x 0.50"

$4.99

$

In Stock, only 1 left!

0

5

Cub Cadet 710-0896

Washer Screw 1/4-14 x 0.625"

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3025

Hex Cap Screw 5/16-24 x 0.625"

Note: Tightening Torque: 150-300 in. lbs.

$3.99

$

In Stock, Qty 8

0

7

Cub Cadet 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

8

Cub Cadet 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0329

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

11

Cub Cadet 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 751-0535-16

Hose, Fuel Line-16"
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

13

Cub Cadet 751-0540A

Fuel Tank-2 qt.

$

$

Not available

14

Cub Cadet 751-0800

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 2 left!

0

15

Cub Cadet 754-0101A

V-Belt
(Superseded to 954-0101A)

$28.99

$

In Stock, Qty 20+

0

16

Cub Cadet 756-0416B

V-Pulley Half
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

17

Cub Cadet 756-0475

V-Pulley Half

$79.99

$

Usually ships in 3-6 days

0

19

Note: Obtain from engine manufacturer

$

$

Not available
