4208 (1690456) - Simplicity Lawn Tractor, 8hp Engine Group Parts Diagram

Lawn Tractor, 8hp

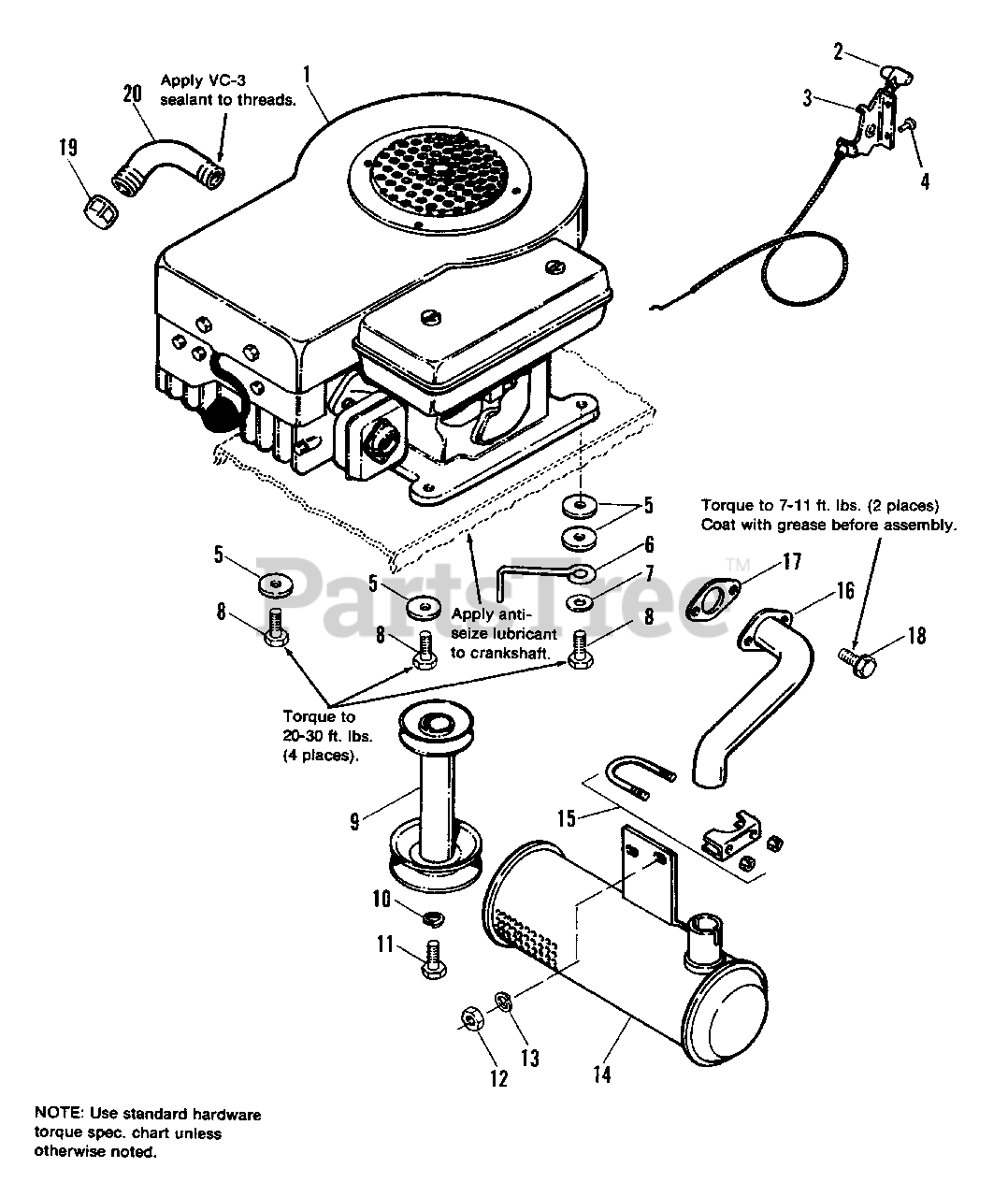

Engine Group Parts Diagram

  • Title

1

ENGINE, 8 H.P. Briggs & Stratton

$

$

Not available

1

ENGINE, 11 H.P. Briggs & Stratton

$

$

Not available

2

Simplicity 1656099SM

KNOB, Throttle
(Superseded to 1719768SM)

$12.99

$

Usually ships in 2-12 days

0

3

Simplicity 1687058SM

CONTROL ASSY., Throttle

$54.99

$

Usually ships in 2-12 days

0

4

Simplicity 2824939

RIVET, Pop, 1/4

$

$

Not available

5

Simplicity 2824356

WASHER, Plain, 3/8

$

$

Not available

6

Simplicity 2172844SM

STOP, Belt

$26.99

$

Usually ships in 2-12 days

0

7

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 704010

SCREW, Taptite, 3/8-16 x 1-1/2

$4.99

$

Usually ships in 2-12 days

0

9

Simplicity 1674163SM

PULLEY ASSY., Engine

$89.99

$

Usually ships in 2-12 days

0

10

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

11

Simplicity 2828038

CAPSCREW, Hex, 7/16-20 x 1-1/4

$

$

Not available

12

Simplicity 1917372SM

NUT, Hex, 5/16-18 (1690458 only)
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1917356SM

LOCKWASHER, 5/16 (1690458 only)
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1655848SM

MUFFLER (1690458 only)

$164.99

$

In Stock, only 1 left!

0

15

Simplicity 2831893SM

CLAMP ASSY., Exhaust (1690458 only)

$

$

Not available

16

Simplicity 1655860SM

PlPE, Exhaust (1690458 onIy)

$112.99

$

In Stock, only 1 left!

0

17

Simplicity 1650670SM

GASKET, Muffler (1690458 only)

$8.49

$

Usually ships in 2-12 days

0

18

Simplicity 2830591

SCREW, Whizlock, 5/16-18 x 3/4 (1690458 only)

$

$

Not available

19

Simplicity 1667346SM

CAP, Pipe, 3/8

$7.49

$

Usually ships in 2-12 days

0

20

Simplicity 1658032SM

PIPE, Oil Drain

$21.99

$

Usually ships in 2-12 days

0
