4208 (1690208) - Simplicity 36" Lawn Tractor, 8hp Hood, Grille & Dash Group (4208) Parts Diagram

36" Lawn Tractor, 8hp

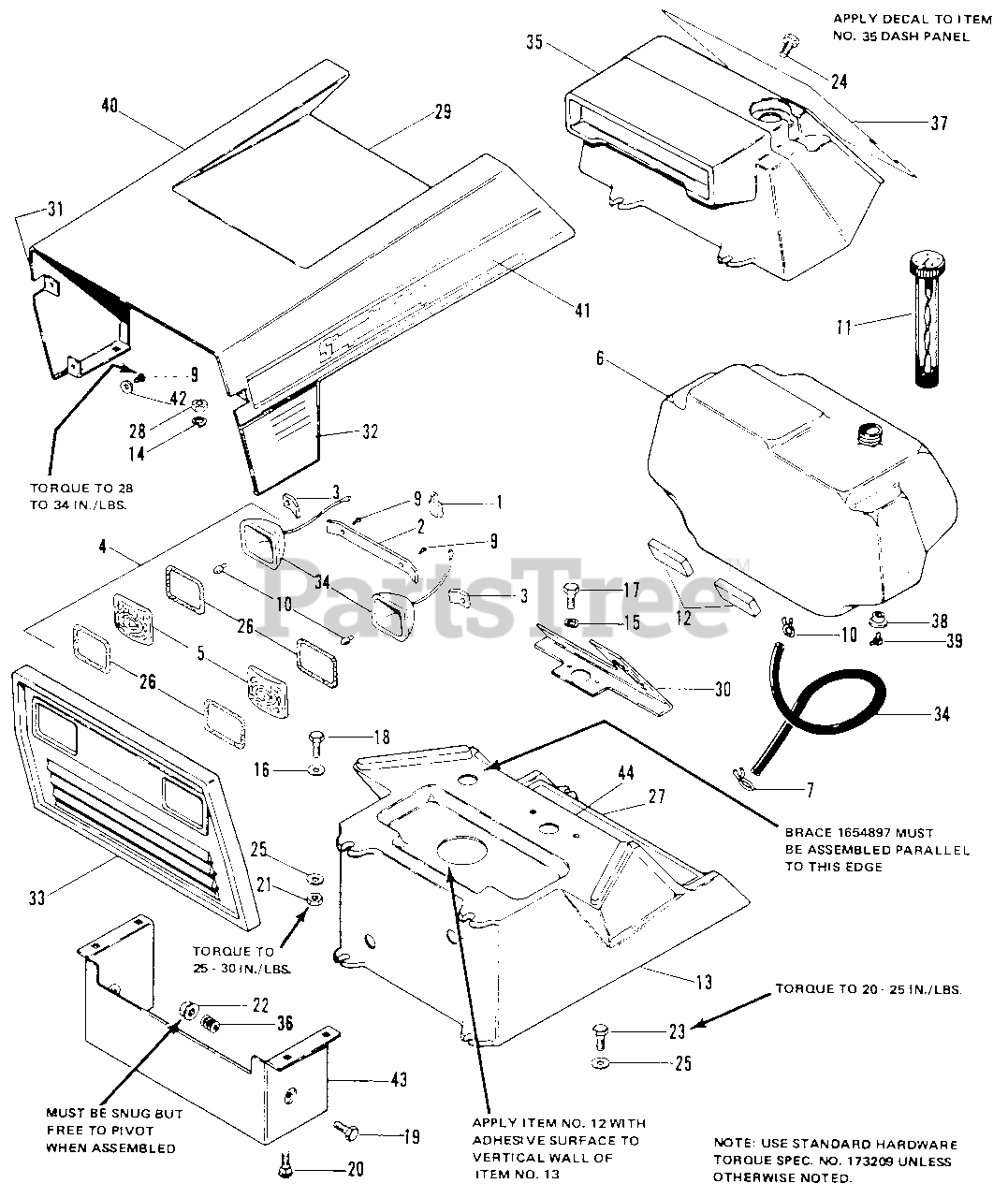

Hood, Grille & Dash Group (4208) Parts Diagram

  • Title

1

Simplicity 122182

CONNECTOR, Insulated

$

$

Not available

2

Simplicity 1654635

CLIP, Center Headlight

$

$

Not available

3

Simplicity 1654636

CLIP, Side Headlight

$

$

Not available

4

Simplicity 1665934SM

LlGHT ASSEMBLY

$

$

Not available

5

Simplicity 1665933

LENS, Clear Plastic

$

$

Not available

6

Simplicity 1687038SM

TANK, Fuel

$

$

Not available

7

Simplicity 2154372

CLAMP, Hose

$

$

Not available

8

Simplicity 1718678SM

HOSE, Fuel

$

$

Not available

9

Simplicity 1654998

SCREW, Round Hd., Phillips,No. 10-32 x 3/8

$

$

Not available

10

Simplicity 1654663

BULB, No. 1156

$

$

Not available

11

Simplicity 2171252SM

CAP, Fuel Tank

$31.99

$

In Stock, Qty 20+

0

12

Simplicity 2173335

PAD, Fuel Tank

$

$

Not available

13

Simplicity 1707393SM

DASHBOARD, Lower

$

$

Not available

14

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

15

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

16

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

17

Simplicity 2821210

CAPSCREW, Hex, 3/8-16 x 1

$

$

Not available

18

Simplicity 2821961

CAPSCREW, Hex, 1/4-20 x 1-1/4

$

$

Not available

19

Simplicity 2821977

CAPSCREW, Hex, 5/16-18 x 1-1/4

$

$

Not available

20

Simplicity 2823333

BOLT, Carriage, 1/4-20 x 5/8

$

$

Not available

21

Simplicity 2823358

LOCKNUT, Hex, Full, 1/4-20

$

$

Not available

22

Simplicity 2829001

LOCKNUT, Hex, Flange,5/16-18

$

$

Not available

23

Simplicity 2829783

SCREW, Hex, Washer, Taptite, 1/4-20 x 1

$

$

Not available

24

Simplicity 2825592SM

SCREW, Taptite, 1/4-20 x 3/4

$2.99

$

Usually ships in 2-12 days

0

25

Simplicity 2831704

LOCKWASHER, Dish Type, 1/4

$

$

Not available

26

Simplicity 1654662SM

GASKET, Lens

$

$

Not available

27

Simplicity 1655518

DECAL, Shift Pattern

$

$

Not available

28

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

29

Simplicity 1654807

HOOD ASSEMBLY

$

$

Not available

30

Simplicity 1654897

BRACE, Dashboard

$

$

Not available

31

Simplicity 1655711

DECAL, System 4208, L.H.

$

$

Not available

32

Simplicity 1655710

DECAL, System 4208, R.H.

$

$

Not available

33

Simplicity 1654997

GRILLE

$

$

Not available

34

Simplicity 1665934SM

REFLECTOR ASSEMBLY

$

$

Not available

35

Simplicity 1656065

DASHBOARD, Upper

$

$

Not available

36

Simplicity 1729278SM

SPRING

$2.49

$

Usually ships in 2-12 days

0

37

Simplicity 1655709

DECAL, Dash

$

$

Not available

38

Simplicity 1654930SM

BUSHING

$7.99

$

In Stock, Qty 20+

0

39

Simplicity 1664460SM

ELBOW

$9.99

$

In Stock, Qty 20+

0

40

Simplicity 1655712

DECAL, Hood, R.H.

$

$

Not available

41

Simplicity 1655713

DECAL, Hood, L.H.

$

$

Not available

42

Simplicity 923906

WASHER, Plain, No. 10

$

$

Not available

43

Simplicity 1654559

BUMPER

$

$

Not available

44

Simplicity 1656651

DECAL, Safety Warning

$

$

Not available
