4208 (1690176) - Simplicity 36" Lawn Tractor, 8hp Seat & Deck Seat Group (4008-4108-4208) Parts Diagram

36" Lawn Tractor, 8hp

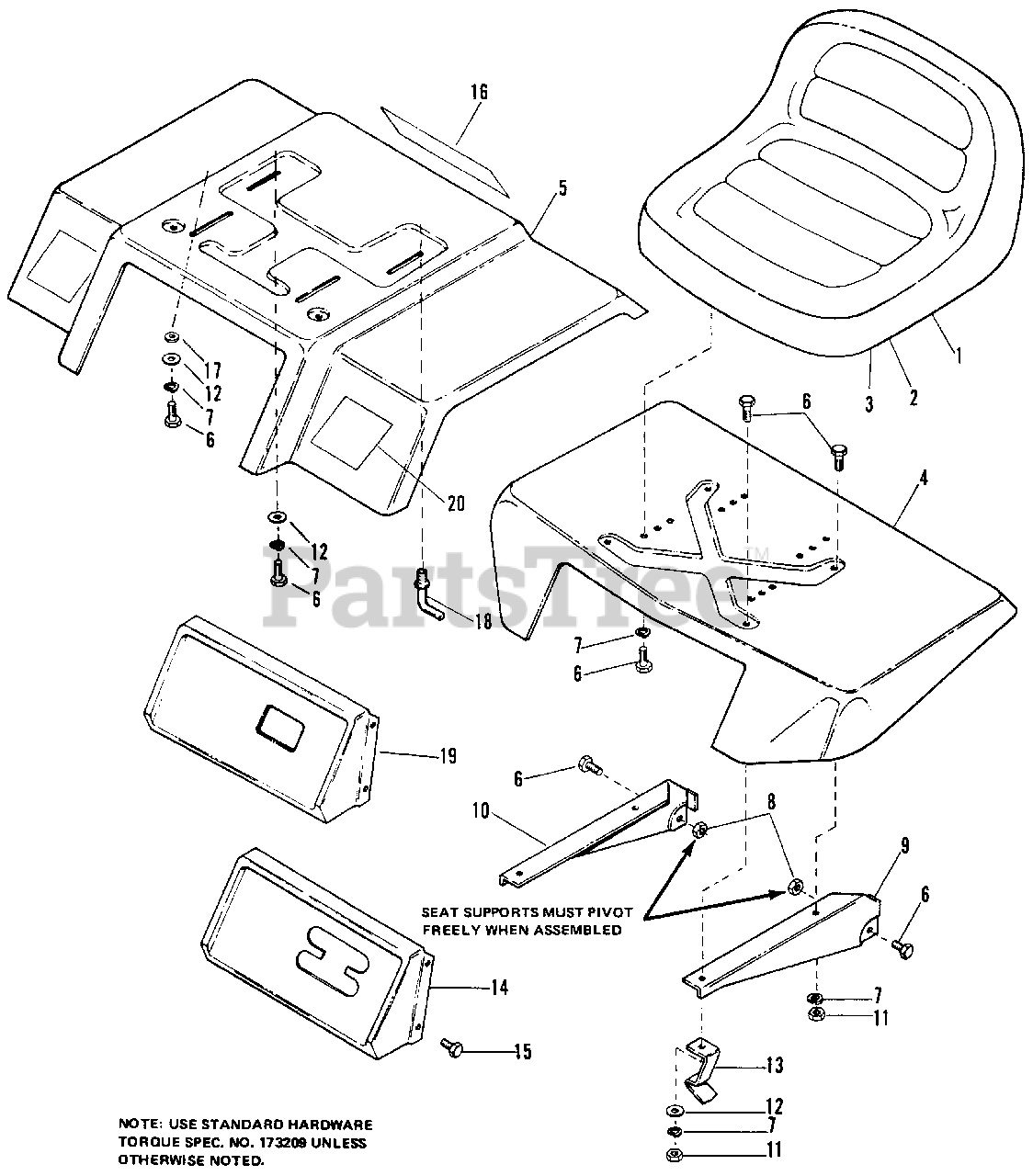

Seat & Deck Seat Group (4008-4108-4208) Parts Diagram

  • Title

1

Simplicity 1717294SM

SEAT, (Medium Back) (4108)

$289.99

$

Usually ships in 2-12 days

0

2

Simplicity 1651879

SEAT, (Low Back) (4008)

$

$

Not available

3

Simplicity 1717294SM

SEAT, (High Back) (4208)

$289.99

$

Usually ships in 2-12 days

0

4

Simplicity 1654755

SEAT DECK (4008)

$

$

Not available

5

Simplicity 1654963

SEAT DECK, W/Fenders (4108, 4208)

$

$

Not available

6

Simplicity 2821332

* CAPSCERW, 5/16-18 x 3/4

$

$

Not available

7

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

Note: Ref. No. 7 Qty. 8 used on 4008 and 4108. Qty. 6 used on 4208.

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 2823362

LOCKNUT, 5/16-18

$

$

Not available

9

Simplicity 1701737

SUPPORT, Seat, L.H.

$

$

Not available

10

Simplicity 1701736SM

SUPPORT, Seat, R.H.

$60.99

$

Usually ships in 2-12 days

0

11

Simplicity 1917372SM

NUT, Hex 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 2817642

WASHER, 5/16, Plain

Note: Ref. No. 12 Qty. 1 used on 4008 Qty. 3 used on 4208. Qty. 5 used on 4108.

$

$

Not available

13

Simplicity 1655287

LATCH, Seat

$

$

Not available

14

Simplicity 1654724

PANEL, Shift (4008, 4108)

$

$

Not available

15

Simplicity 2830918

SCREW, Taptite, 1/4-20 x 1/2

$

$

Not available

16

Simplicity 1655519

DECAL, Simplicity

$

$

Not available

17

Simplicity 1655281

SPACER, (4108)

$

$

Not available

18

Simplicity 1655282

SCREW-HAND, (4208)

$

$

Not available

19

Simplicity 1668840SM

PANEL, Shift, (4208)

$108.99

$

Usually ships in 2-12 days

0

20

Simplicity 1655707

DECAL, "S"

$

$

Not available
