4208 (1690176) - Simplicity 36" Lawn Tractor, 8hp Electrical Group (4208) Parts Diagram

36" Lawn Tractor, 8hp

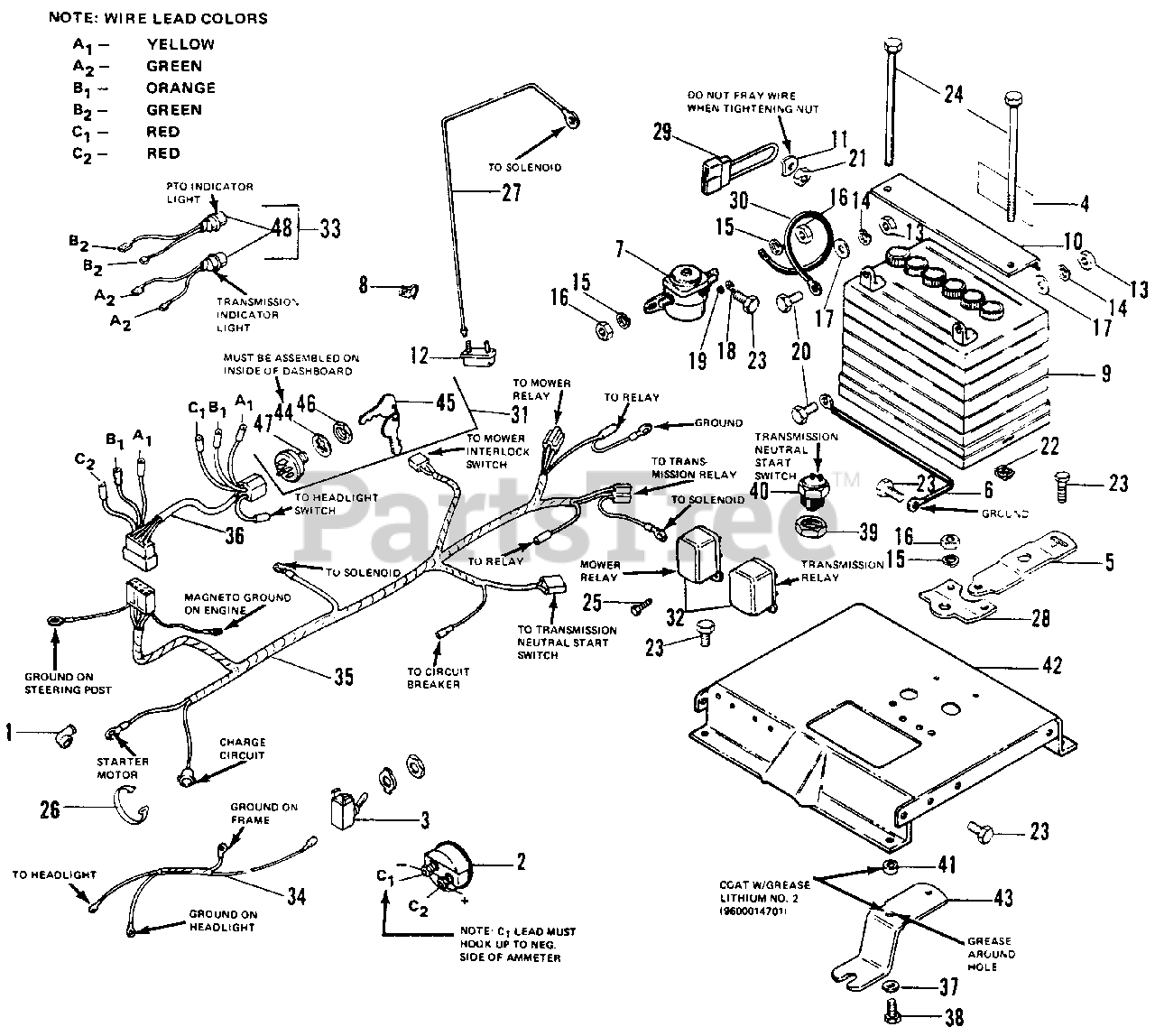

Electrical Group (4208) Parts Diagram

  • Title

1

Simplicity 2122023SM

COVER, Terminal

$5.99

$

In Stock, Qty 12

0

2

Simplicity 2122131SM

AMMETER
(Superseded to 7019547YP)

$90.99

$

Usually ships in 2-12 days

0

3

Simplicity 2122184SM

SWITCH, Toggle

$22.99

$

Usually ships in 2-12 days

0

4

Simplicity 170219

FILM, Battery

$

$

Not available

5

Simplicity 1655746

BRACKET, Switch

$

$

Not available

6

Simplicity 2122213

CABLE, Ground

$

$

Not available

7

Simplicity 2122216SM

SOLENOID

$

$

Not available

8

Simplicity 2165073SM

CLIP, Speed

$2.99

$

Usually ships in 2-12 days

0

9

Simplicity 2170059

BATTERY

$

$

Not available

10

Simplicity 170123

CLAMP, Battery

$

$

Not available

11

Simplicity 2171379SM

WASHER, Cup

$5.49

$

Usually ships in 2-12 days

0

12

Simplicity 2172163

BREAKER, Circuit

$

$

Not available

13

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

15

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

18

Simplicity 2817415

NUT, Hex, Full, 10-32

$

$

Not available

19

Simplicity 2822711

LOCKWASHER, Ext. No. 10

$

$

Not available

20

Simplicity 2823341SM

CAPSCREW, Hex, Hd., 25-2A x .75
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

21

Simplicity 2823362

LOCKNUT, Hex, full, 5/16-18

$

$

Not available

22

Simplicity 2826022

SPEED NUT, 1/4-20

$

$

Not available

23

Simplicity 2827428

SCREW, Washer, Hd. Taptite, 1/4-20 x 3/8

$

$

Not available

24

Simplicity 2828634

CAPSCREW, Hex, 1/4-20 x 7

$

$

Not available

25

Simplicity 2829477

SCREW, Hex, Washer Hd., Taptite No. 10-24 x 1/2

$

$

Not available

26

Simplicity 2832747SM

TIE, Cable

$3.99

$

Usually ships in 2-12 days

0

27

Simplicity 1665237SM

WIRE ASSEMBLY

$11.99

$

In Stock, Qty 7

0

28

Simplicity 1655264

LEVER, Pivot Shift

$

$

Not available

29

Simplicity 1655401

WIRE, Mower Bypass

$

$

Not available

30

Simplicity 1707056SM

CABLE

$10.99

$

Usually ships in 2-12 days

0

31

Simplicity 1686734SM

SWITCH, Ignition

$32.99

$

In Stock, Qty 20+

0

32

Simplicity 1656036

RELAY, 12 Volt

$

$

Not available

33

Simplicity 1656037

LIGHT, Indicator

$

$

Not available

34

Simplicity 1656071

WIRE ASSY., HEADLIGHTS

$

$

Not available

35

Simplicity 1656090

HARNESS, Lower

$

$

Not available

36

Simplicity 1656091

HARNESS, Upper

$

$

Not available

37

Simplicity 2157643

WASHER

$

$

Not available

38

Simplicity 2821333

CAPSCREW, Hex, 5/16-18 x 1

$

$

Not available

39

Simplicity 1930647

LOCKNUT, 9/16-17 Palnut
(Superseded to 2830647SM)

$3.99

$

Usually ships in 2-12 days

0

40

Simplicity 1654634SM

SWITCH, Interlock

$46.99

$

Usually ships in 2-12 days

0

41

Simplicity 1655085

SPACER

$

$

Not available

42

Simplicity 1655087

SUPPORT, Frame

$

$

Not available

43

Simplicity 1655265

SWITCH, Lever

$

$

Not available

44

Simplicity 2818906

LOCKWASHER, Internal, 5/8

$

$

Not available

45

Simplicity 1717163SM

KEYS, Ignition (On Ring)

$8.99

$

In Stock, Qty 20+

0

46

Simplicity 2122234SM

NUT, Hex, Special, 5/8-32
(Superseded to 704229)

$3.49

$

In Stock, only 1 left!

0

47

Simplicity 1686734

SWITCH
(Superseded to 1686734SM)

$32.99

$

In Stock, Qty 20+

0

48

Simplicity 1657449

LENS, Green

$

$

Not available
