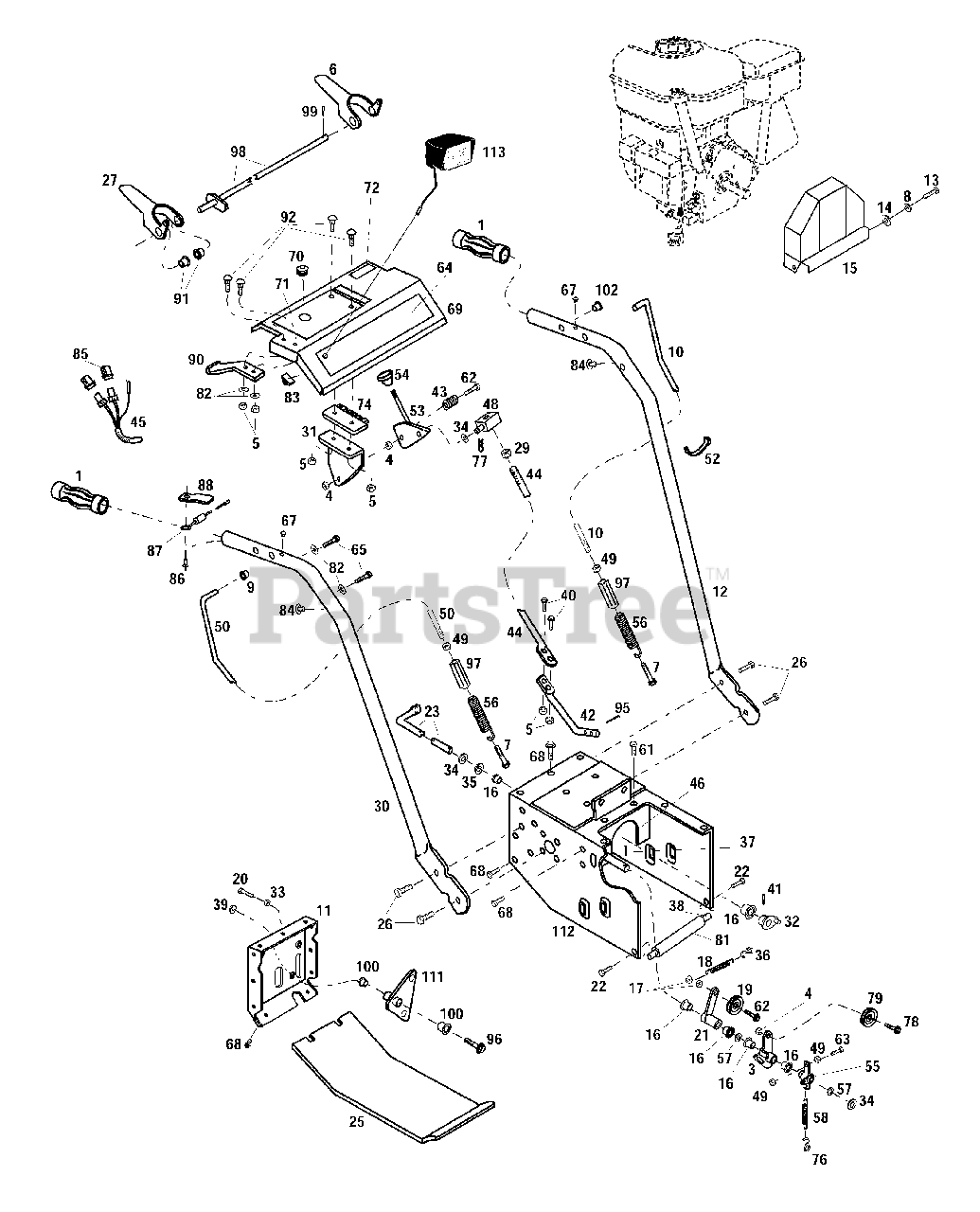

42051 - Troy-Bilt 26" Snow Thrower Handlebar Parts Diagram

26" Snow Thrower

Handlebar Parts Diagram

  • Title

1

Troy-Bilt 1745576

Handle Grip
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

3

MTD 1739937

Idler Arm

$

$

Not available

4

Troy-Bilt 1733398

Lock Nut, 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

5

Troy-Bilt 1734398

Lock Nut, 1/4-20
(Superseded to 912-0291)

$

$

Not available

6

MTD 1764738

Left Control Handle

$

$

Not available

7

Troy-Bilt 1765534

Fillister-Head Bolt, 5/16-18 x 1

$

$

Not available

8

Troy-Bilt 1100242

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 1728072

Push Nut
(Superseded to 926-0106)

$

$

Not available

10

MTD 1764741

Wheel Drive Clutch Rod

$

$

Not available

11

MTD 1760258010

Back Plate

$

$

Not available

12

MTD 1757831010

Left Handlebar

$

$

Not available

13

Troy-Bilt 1100044

Hex Hd. Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 1100255

Flat Washer, 5/16
(Superseded to 736-0262)

$3.99

$

Usually ships in 3-6 days

0

15

MTD 1740030

Belt Cover

$

$

Not available

16

Troy-Bilt 1715716

Bushing

$3.49

$

In Stock, only 1 left!

0

17

Troy-Bilt 1185506

Self-Locking Jam Nut, 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

18

MTD 1740011

Extension Spring

$

$

Not available

19

MTD 1729440

Idler Pulley

$

$

Not available

20

MTD 1186334

Flange Screw, 5/16-18 x 1-3/4

$

$

Not available

21

MTD 1739935

Idler Arm

$

$

Not available

22

Troy-Bilt 1186329

Flange Screw, 5/16-18 x 3/4
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

23

Troy-Bilt 1757841

Control Arm

$

$

Currently unavailable

25

MTD 1739838010

Bottom Cover

$

$

Not available

26

MTD 1186345

Flange Screw, 3/8-16 x 3/4

$

$

Not available

27

MTD 1764739

Right Control Handle

$

$

Not available

29

Troy-Bilt 1186231

Hex Nut, 3/8-16
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

30

MTD 1757832010

Right Handlebar

$

$

Not available

31

MTD 1760196

Control Bracket

$

$

Not available

32

MTD 1739932

Control Arm

$

$

Not available

33

Troy-Bilt 1186258

Jam Nut, 5/16-18
(Superseded to 712-3007)

$6.99

$

In Stock, Qty 5

0

34

Troy-Bilt 1890234

Flat Washer, 1/2
(Superseded to GW-20546)

$

$

Not available

35

Troy-Bilt 1706782

Bowed Washer

$2.49

$

In Stock, only 1 left!

0

36

MTD 1740989

S-Hook

$

$

Not available

37

MTD 1100356

Cotter Pin, 3/32 x 1

$

$

Not available

38

MTD 1739756

Cross Member

$

$

Not available

39

Troy-Bilt 1186393

Flange Nut, 3/8-16

$3.49

$

In Stock, only 2 left!

0

40

Troy-Bilt 1100805

Hex Hd. Cap Screw, 1/4-20 x 3/4
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

41

MTD 1743493

Drive Pin, 1/8 x 3/4

$

$

Not available

42

MTD 1760253

Lower Control Rod

$

$

Not available

43

MTD 1713167

Compression Spring

$

$

Not available

44

MTD 1760254

Upper Control Rod

$

$

Not available

45

Troy-Bilt 1918905

Wiring Harness

$

$

Currently unavailable

46

MTD 1754272

Support Assembly

$

$

Not available

48

MTD 1727053

Pivot Block

$

$

Not available

49

Troy-Bilt 1186229

Hex Nut, 1/4-20
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

50

MTD 1764743

Auger Control Rod

$

$

Not available

52

Troy-Bilt 1735531

Plastic tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

53

MTD 1760255

Shift Control Arm

$

$

Not available

54

MTD 1757842

Knob

$

$

Not available

55

MTD 1739941

Brake Arm

$

$

Not available

56

MTD 1765535

Extension Spring

$

$

Not available

57

Troy-Bilt 1107385

Flat Washer, 1/2"
(Superseded to 936-0326)

$4.49

$

In Stock, only 4 left!

0

58

MTD 1740990

Extension Spring

$

$

Not available

61

MTD 1186327

Flange Screw, 5/16-18 x 1/2

$

$

Not available

62

Troy-Bilt 1100086

Hex Hd. Cap Screw, 3/8-16 x 1-3/4
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

63

MTD 1772011

Hex Hd. Cap Screw, 1/4-20 x 1

$

$

Not available

64

Troy-Bilt 1918881

Logo Decal

$

$

Currently unavailable

65

Troy-Bilt 1754128

Thread-Forming Screw, 1/4-20 x 5/8

$3.99

$

In Stock, only 2 left!

0

67

MTD 1750796

Wear Button

$

$

Not available

68

Troy-Bilt 1724491

Thread-Forming Screw, 5/16-18 x 3/4
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

69

MTD 1918476

Console

Note: (Incl. Ref. 71)

$

$

Not available

70

MTD 1185585

Flip Grommet

$

$

Not available

71

MTD 1917457

Instructions Decal

$

$

Not available

72

UNKNOWN

$

$

Not available

74

Troy-Bilt 1764711

Shift Quadrant

$

$

Currently unavailable

76

Troy-Bilt 1742250

S-Hook

$

$

Currently unavailable

77

Troy-Bilt 1703011

Cotter Spring
(Superseded to 914-0145)

$4.99

$

In Stock, Qty 20+

0

78

Troy-Bilt 1982612

Hex Hd. Screw, 3/8-16 x 2
(Superseded to 710-3096)

$7.99

$

In Stock, only 1 left!

0

79

Troy-Bilt 1745499

Idler Pulley
(Superseded to 756-0225)

Note: For Model 42051

$

$

Not available

MTD 1916956

Idler Pulley

Note: For Model 42052

$

$

Not available

81

MTD 1746607

Plastic Tubing

$

$

Not available

82

Troy-Bilt 1107381

Flat Washer, 1/4
(Superseded to 936-3020)

$

$

Not available

83

MTD 1724879

Cord Clip

$

$

Not available

84

Troy-Bilt 1773905

Bushing

$3.49

$

Usually ships in 3-6 days

0

85

Troy-Bilt 1748836

Connector Body

$

$

Currently unavailable

86

Troy-Bilt 1186424

Pop Rivet, 1/8

$

$

Currently unavailable

87

MTD 1773904

Resistor

$

$

Not available

88

MTD 1746516

Clamp

$

$

Not available

90

MTD 1764733

Flat Spring

$

$

Not available

91

MTD 1755779

Flange Bearing

$

$

Not available

92

Troy-Bilt 1115931

Round Head Screw, 1/4-20 x 5/8
(Superseded to 710-0946)

$3.99

$

Usually ships in 3-6 days

0

95

Troy-Bilt 1100346

Cotter Pin, 3/32 x 3/4
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

96

Troy-Bilt 1763219

Shoulder Bolt

$10.99

$

In Stock, only 2 left!

0

97

MTD 1764740

Adjusting Nut

$

$

Not available

98

MTD 1764737

Control Rod

$

$

Not available

99

Troy-Bilt 1737015

Roll Pin, 1/8 x 5/8
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

100

Troy-Bilt 1715538

Nyliner Flange Bushing

$

$

Not available

102

MTD 1714243

Flange Bearing

$

$

Not available

103

Troy-Bilt 1900706

Troy-Bilt Red Spray Paint, 13 oz
(Superseded to 788-0638A)

Note: Item not included with unit. Order separately.

$24.99

$

Usually ships in 3-6 days

0

104

Troy-Bilt 1735222

Troy-Bilt Black Spray Paint, 13 oz
(Superseded to 788-0637A)

Note: Item not included with unit. Order separately.

$30.99

$

In Stock, only 1 left!

0

111

MTD 1760218

Speed Control Arm

$

$

Not available

112

Frame

Note: (See "Drive")

$

$

Not available

113

MTD 1918428

Light Kit

$

$

Not available
