42050 - Troy-Bilt 24" Snow Thrower Handlebar And Drive Assemblies Parts Diagram

24" Snow Thrower

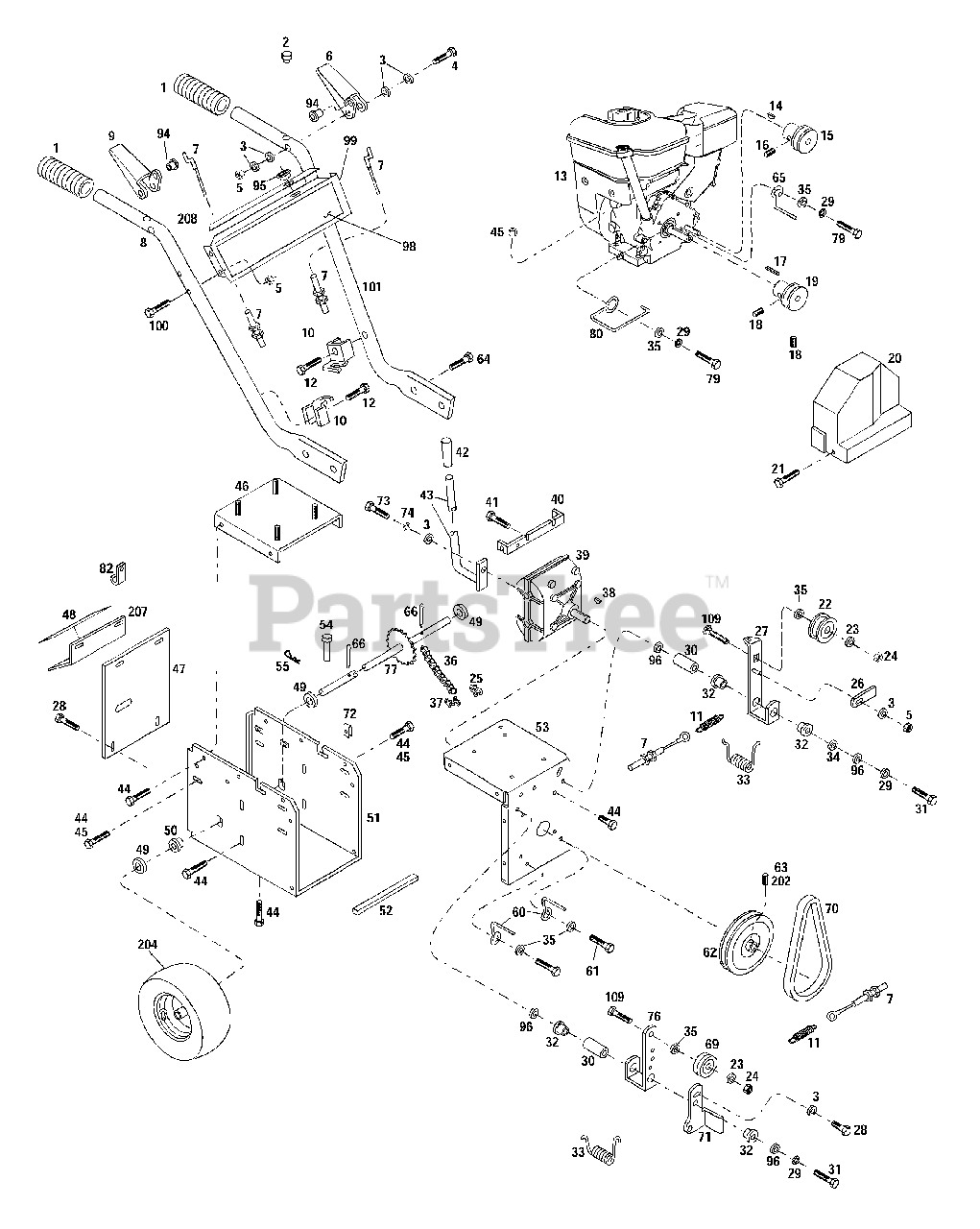

Handlebar And Drive Assemblies Parts Diagram

  • Title

1

Troy-Bilt 1703539

Handle Grip
(Superseded to 720-0274)

$11.99

$

In Stock, Qty 8

0

2

MTD 1750796

Bumper

$

$

Not available

3

Troy-Bilt 1107381

Flat Washer, 1/4
(Superseded to 936-3020)

$

$

Not available

4

Troy-Bilt 1111601

Hex hd. Screw, 1/4-20 x 1-3/4

$

$

Not available

5

Troy-Bilt 1734398

Locknut, 1/4-20
(Superseded to 912-0291)

$

$

Not available

6

Troy-Bilt 1745672001

Control Lever

$

$

Not available

7

Troy-Bilt 1771727

Drive Cable
(Superseded to 1771727P)

$101.99

$

In Stock, Qty 6

0

8

MTD 1754177010

Handlebar - right hand

$

$

Not available

9

MTD 1745673001

Control Lever

$

$

Not available

10

Troy-Bilt 1749977001

Cable Bracket

$

$

Not available

11

MTD 1752500

Extension Spring

$

$

Not available

12

Troy-Bilt 1754128

Thread Forming Screw, 1/4-20 x 3/4

$3.99

$

In Stock, only 2 left!

0

13

Engine

Note: Order parts from your local authorized engine service dealer. Refer to engine nameplate for model/type numbers.

$

$

Not available

14

MTD 1104435

Woodruff Key, 1/8 x 5/8

$

$

Not available

15

MTD 1740121

PTO Sheave

$

$

Not available

16

MTD 1103441

Set Screw, 1/4-20 x 3/8

$

$

Not available

17

Troy-Bilt 1108852

Square Key, 3/16 x 3/4

$

$

Not available

18

Troy-Bilt 1903631

Set Screw, 5/16-18 x 5/16

$3.99

$

Usually ships in 3-6 days

0

19

MTD 1771238

Engine Sheave

$

$

Not available

20

MTD 1754175

Belt Cover

$

$

Not available

21

Troy-Bilt 1115815

Truss Screw, #10-24 x 5/8
(Superseded to 710-0425)

$4.99

$

Usually ships in 3-6 days

0

22

MTD 1729440

Idler Pulley

$

$

Not available

23

Troy-Bilt 1100243

Lockwasher, 3/8
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 1186231

Hex Nut, 3/8-16
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 182087

Link-Offset

$

$

Currently unavailable

26

MTD 1751017

Idler Arm Stop

$

$

Not available

27

Troy-Bilt 1918462

Idler Arm

$

$

Currently unavailable

28

MTD 1724492

Thread Forming Screw, 1/4-20 x 1/2

$

$

Not available

29

Troy-Bilt 1100242

Lockwasher, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

MTD 1748659

Spacer

$

$

Not available

31

MTD 1111608

Hex hd. Screw, 5/16-18 x 2-1/2

$

$

Not available

32

Troy-Bilt 1715538

Bearing - Nyliner

$

$

Not available

33

MTD 1740102

Torsion Spring

$

$

Not available

34

Troy-Bilt 1100257

Flat Washer, 1/2

$

$

Not available

35

Troy-Bilt 1100255

Flat Washer, 5/16
(Superseded to 736-0262)

$3.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 1774473

Drive Chain #41

$

$

Currently unavailable

37

Troy-Bilt 1185013

Connector Link
(Superseded to 913-0723)

$

$

Not available

38

MTD 1200033

Hi-Pro Key, 3/16 x 3/4

$

$

Not available

39

MTD 1740100

Transmission

Note: (See breakdown, pg. 26)

$

$

Not available

40

MTD 1740139010

Reinforcement Bracket

$

$

Not available

41

Troy-Bilt 1766984

Thread Forming Screw, 5/16-18 x 3/4

$3.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 1737041

Handle Grip
(Superseded to 720-0312)

$4.99

$

In Stock, Qty 5

0

43

MTD 1774124010

Shift Handle

$

$

Not available

44

MTD 1186327

Hex Hd. Flange Screw, 5/16-18 x 1/2

$

$

Not available

45

Troy-Bilt 1186391

Flange Locknut, 5/16-18
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 1748617001

Doubler Plate Assembly

$

$

Currently unavailable

47

MTD 1749291010

Rear Cover

$

$

Not available

48

MTD 1757862

Shift Decal

$

$

Not available

49

MTD 1739463

Flat Washer

$

$

Not available

50

Troy-Bilt 1739470

Bearing

$36.99

$

In Stock, Qty 5

0

51

MTD 1773892010

Frame

$

$

Not available

52

MTD 1750799

Rubber Pad

$

$

Not available

53

MTD 1749299010

Frame Cover

$

$

Not available

54

MTD 1724760

Clevis Pin

$

$

Not available

55

Troy-Bilt 1717897

Hair Pin

$3.49

$

Usually ships in 3-6 days

0

60

MTD 1750704

Belt Guide

$

$

Not available

61

Troy-Bilt 1100044

Hex hd. Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

62

MTD 1740127

Transmission Sheave

$

$

Not available

63

Troy-Bilt 1733185

Set Screw, 5/16-18 x 5/8

$

$

Not available

64

Troy-Bilt 1186328

Hex Flange Screw, 5/16-18 x 5/8
(Superseded to 710-04049)

$4.99

$

In Stock, Qty 11

0

65

Troy-Bilt 1759447

Belt Guide

$

$

Currently unavailable

66

MTD 1100351

Cotter Pin, 1/8 x 1-1/4

$

$

Not available

69

Troy-Bilt 1710566

Flat Idler

$

$

Currently unavailable

70

MTD 1918456

V-Belt

$

$

Not available

71

Troy-Bilt 1771750

Brake Arm

$

$

Currently unavailable

72

Troy-Bilt 1185986

Speed Nut, #10
(Superseded to 712-0147)

$6.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt 1100002

Hex hd. Screw, 1/4-28 x 3/4
(Superseded to 710-0412)

$5.99

$

In Stock, Qty 9

0

74

Troy-Bilt 1100241

Lockwasher, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

76

MTD 1748443

Idler Arm

$

$

Not available

77

MTD 1758184

Axle

$

$

Not available

79

Troy-Bilt 1100004

Hex hd. Screw, 5/16-24 x 3/4
(Superseded to 710-0157)

$4.49

$

In Stock, Qty 15

0

80

MTD 1758259

Belt Guide

$

$

Not available

82

Troy-Bilt 1754159

Cable Clamp
(Superseded to 726-0175)

$

$

Not available

94

Troy-Bilt 1771728

Nyliner Bearing

$7.99

$

In Stock, only 4 left!

0

95

MTD 1185585

Grommet

$

$

Not available

96

Troy-Bilt 1100254

Flat Washer, 1/4
(Superseded to 936-0159)

$

$

Not available

98

Troy-Bilt 1918465

Decal, Logo - Model 42046

$

$

Currently unavailable

MTD 1918466

Decal, Logo - Model 42050

$

$

Not available

99

MTD 1774209

Console

Note: (Incl. Ref. 208)

$

$

Not available

100

Troy-Bilt 1100811

Hex hd. Screw, 1/4-20 x 1-1/2
(Superseded to 710-0606)

$5.49

$

In Stock, Qty 10

0

101

MTD 1754176010

Handlebar - left hand

$

$

Not available

109

MTD 1748393

Carriage Bolt, 3/8-16 x 1-3/4

$

$

Not available

?200

Troy-Bilt 1900706

Red Spray Paint, 13 oz. can
(Superseded to 788-0638A)

Note: Item not included with unit. Order separately.

$24.99

$

Usually ships in 3-6 days

0

?201

Troy-Bilt 1735222

Black Spray Paint, 13 oz. can
(Superseded to 788-0637A)

Note: Item not included with unit. Order separately.

$30.99

$

In Stock, only 1 left!

0

202

Troy-Bilt 1757032

Loctite #242, .02 oz.
(Superseded to GW-97092)

$17.99

$

Usually ships in 3-6 days

0

?203

Troy-Bilt 1756276

Tire Chains

Note: Item not included with unit. Order separately.

$

$

Currently unavailable

204

MTD 1760190

Wheel and Tire Assembly

$

$

Not available

207

MTD 1774122

Bracket, Shift Decal

$

$

Not available

208

MTD 1773817

Decal, Instructions

$

$

Not available

$

$
