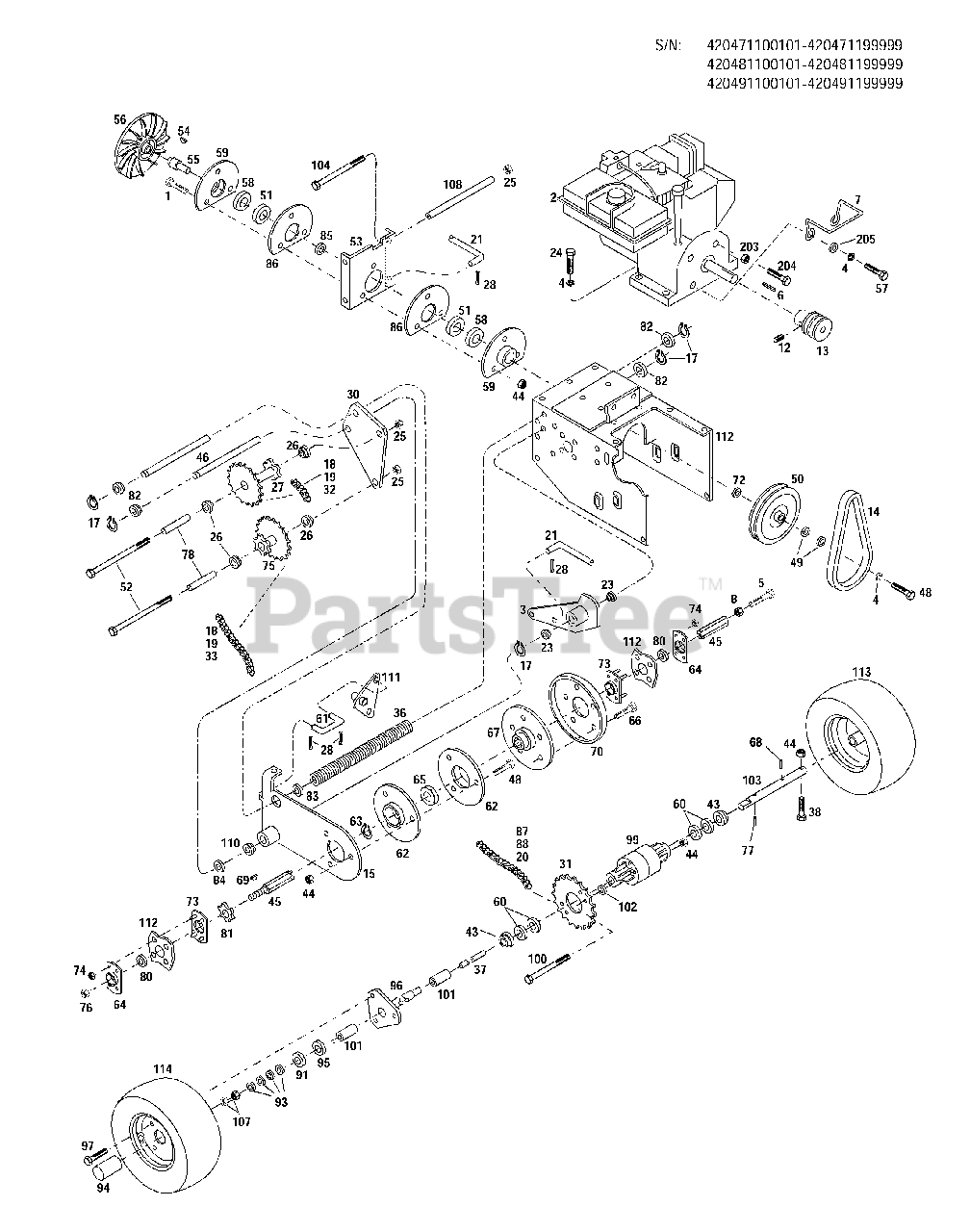

42047 - Troy-Bilt 26" Snow Thrower Drive Parts Diagram

26" Snow Thrower

Drive Parts Diagram

  • Title

1

Troy-Bilt GW-1100045

Hex Bolt, 5/16-18 x 1
(Superseded to 710-0376)

$3.99

$

In Stock, only 4 left!

0

2

Tecumseh Engine, 8 HP

Note: Purchase engine parts from the nearest authorized Tecumseh engine dealer. Refer to engine for type and code.; For Model 42047

$

$

Not available

Tecumseh Engine, 10 HP

Note: Purchase engine parts from the nearest authorized Tecumseh engine dealer. Refer to engine for type and code.; For Model 42048

$

$

Not available

Tecumseh Engine, 13 HP

Note: Purchase engine parts from the nearest authorized Tecumseh engine dealer. Refer to engine for type and code.; For Model 42049

$

$

Not available

3

MTD GW-1745485

Control Arm

$

$

Not available

4

Troy-Bilt GW-1100242

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

5

MTD GW-1903416

Shoulder Bolt, 3/8-16 x 1-1/2

$

$

Not available

6

MTD GW-1187474

Square Key, 1/4 x 2-1/4

$

$

Not available

7

MTD GW-1749177

Belt Guide

$

$

Not available

8

MTD GW-1917742

Bushing

$

$

Not available

12

Troy-Bilt GW-1733185

Set Screw, 5/16-18 x 5/8
(Superseded to 1733185)

$

$

Not available

13

Troy-Bilt GW-1917406

Engine Sheave

$

$

Currently unavailable

14

Troy-Bilt GW-1751601

V-Belt
(Superseded to 1751601)

Note: For Model 42047; For Model 42048

$20.99

$

In Stock, only 1 left!

0

MTD GW-1916958

V-Belt

Note: For Model 42049

$

$

Not available

15

MTD GW-1760260

Drive Support

Note: (Incl. Ref. 110)

$

$

Not available

17

Troy-Bilt GW-1118808

Retaining Ring
(Superseded to 1118808)

$

$

Not available

18

MTD GW-0182087

Offset Link (Half Link)

$

$

Not available

19

Troy-Bilt GW-1185013

Connecting Link, #41
(Superseded to 913-0723)

$

$

Not available

20

MTD GW-1739454

Final Drive Chain #40

Note: (Requires Refs. 87 & 88)

$

$

Not available

21

MTD GW-1745437

Control Link

$

$

Not available

23

MTD GW-1714299

Flange Bushing

$

$

Not available

24

Troy-Bilt GW-1100799

Hex Head Bolt, 5/16-18 x 1-1/2
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

25

Troy-Bilt GW-1186393

Flange Lock Nut, 3/8-16
(Superseded to 1186393)

$3.49

$

In Stock, only 2 left!

0

26

MTD GW-1739458

Flange Bearing

$

$

Not available

27

Troy-Bilt GW-1745498

Sprocket Assembly, 9T/17T

$

$

Currently unavailable

28

Troy-Bilt GW-1100346

Cotter Pin, 3/32 x 3/4
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

30

MTD GW-1739497

Support Plate

$

$

Not available

31

Sprocket, 30T

Note: (see Ref. 99)

$

$

Not available

32

MTD GW-1745880

Drive Chain

Note: (Requires Refs. 18 and 19)

$

$

Not available

33

MTD GW-1745879

Drive Chain

Note: (Requires Refs. 18 and 19)

$

$

Not available

36

MTD GW-1741647

Compression Spring

$

$

Not available

37

Troy-Bilt GW-1746744

Axle Shaft

$

$

Currently unavailable

38

Troy-Bilt GW-1755894

Hex Head Bolt, 5/16-18 x 1-3/4
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 15

0

43

Troy-Bilt GW-1739471

Flange Bushing, 7/8
(Superseded to 1739471)

$24.99

$

In Stock, only 1 left!

0

44

Troy-Bilt GW-1732499

Lock Nut, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

45

MTD GW-1916885

Hex Shaft

$

$

Not available

46

MTD GW-1745860

Shaft Support

$

$

Not available

48

Troy-Bilt GW-1100044

Cap Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

49

Troy-Bilt GW-9929

Special Flat Washer

$3.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt GW-1745488

Wheel Drive Sheave

$

$

Currently unavailable

51

Troy-Bilt GW-1743433

Ball Bearing
(Superseded to 941-3006)

$99.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt GW-1110644

Capscrew, 3/8-16 x 3-1/2

$

$

Currently unavailable

53

MTD GW-1754302

Drive Disc Support

$

$

Not available

54

MTD GW-1185885

Woodruff Key, 3/16 x 5/8
(Superseded to 1185885)

$

$

Not available

55

MTD GW-1745535

Spindle

$

$

Not available

56

MTD GW-1720918

Drive Plate

$

$

Not available

57

MTD GW-1100005

Hex Head Bolt, 5/16-24 x 1

$

$

Not available

58

MTD GW-1718781

Shim

$

$

Not available

59

MTD GW-1739488

Bearing Retainer

$

$

Not available

60

MTD GW-1740002

Flat Washer, 7/8

$

$

Not available

61

MTD GW-1760252

Connecting Link

$

$

Not available

62

MTD GW-1739485

Bearing Retainer

$

$

Not available

63

MTD GW-1736561

Snap Ring

$

$

Not available

64

MTD GW-1720811

Bearing Flange

$

$

Not available

65

MTD GW-1741733

Ball Bearing

$

$

Not available

66

MTD GW-1186327

Flange Bolt, 5/16-18 x 1/2

$

$

Not available

67

MTD GW-1739490

Friction Disc Hub

$

$

Not available

68

MTD GW-1185376

Drive Pin, 3/16 x 1-1/2

$

$

Not available

69

MTD GW-9361

Woodruff Key

$

$

Not available

70

Troy-Bilt GW-1720859

Molded Friction Disc
(Superseded to 1720859)

$76.99

$

In Stock, only 1 left!

0

72

Troy-Bilt GW-1709224

Special Washer

$

$

Currently unavailable

73

Troy-Bilt GW-1720810

Bearing Flange Assembly
(Superseded to 1720810)

$156.99

$

In Stock, only 1 left!

0

74

Troy-Bilt GW-1772333

Lock Nut, #10-24
(Superseded to 712-0161)

$4.49

$

In Stock, only 1 left!

0

75

MTD GW-1745497

Sprocket Assembly, 9T/30T

$

$

Not available

76

MTD GW-1185496

Jam Nut, 1/2-13

$

$

Not available

77

MTD GW-1758305

Drive Pin

$

$

Not available

78

Troy-Bilt GW-1739476

Spacer
(Superseded to 1739476)

$31.99

$

In Stock, only 2 left!

0

80

MTD GW-1185808

Ball Bearing

$

$

Not available

81

MTD GW-1745495

Sprocket, 9T

$

$

Not available

82

MTD GW-1714233

Nylon Bushing

$

$

Not available

83

Troy-Bilt GW-1705093

Special Flat Washer
(Superseded to 736-0302)

$

$

Not available

84

Troy-Bilt GW-1107386

Flat Washer, 5/8
(Superseded to 736-0237)

$4.49

$

In Stock, Qty 20+

0

85

MTD GW-1745489

Spacer

$

$

Not available

86

MTD GW-1745490

Bearing Retainer

$

$

Not available

87

MTD GW-1185026

Connecting Link

$

$

Not available

88

Troy-Bilt GW-1120213

Offset Link (Half Link)

$

$

Currently unavailable

91

Troy-Bilt GW-1756230

D-Hole Drive Washer

$

$

Currently unavailable

93

MTD GW-1746743

Disc Spring

$

$

Not available

94

MTD GW-1756231

Dust Cap

$

$

Not available

95

MTD GW-1746739

Friction Disc

$

$

Not available

96

Troy-Bilt GW-1758300

Flange & Axle Tube Assembly

$

$

Currently unavailable

97

Troy-Bilt GW-1716223

Lug Bolt
(Superseded to 1716223)

$

$

Not available

99

MTD GW-1758898

Differential Assembly

Note: (Incl. one Ref. 31 and four ea. Refs. 44, 100, 102)

$

$

Not available

100

Hex Hd. Bolt, 5/16-18 x 4-1/2

Note: (see Ref. 99)

$

$

Not available

101

MTD GW-1745883

Nylon Bushing

$

$

Not available

102

Spacer

Note: (see Ref. 99)

$

$

Not available

103

MTD GW-1758302

Axle Shaft

$

$

Not available

104

MTD GW-1754303

Hex Head Bolt, 3/8-16 x 8-1/2

$

$

Not available

107

Troy-Bilt GW-1186233

Jam Nut, 1/2-13
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

108

MTD GW-1754301

Tubular Spacer

$

$

Not available

110

MTD GW-1739460

Flange Bearing

$

$

Not available

111

MTD GW-1760218

Speed Control Arm

$

$

Not available

112

Troy-Bilt GW-1916955010

Frame

Note: For Model 42049

$

$

Currently unavailable

MTD GW-1916966010

Frame

Note: For Model 42047; For Model 42048

$

$

Not available

113

MTD GW-1757886

Wheel & Tire Assembly

$

$

Not available

114

MTD GW-1757880

Wheel & Tire Assembly

$

$

Not available

203

Troy-Bilt GW-1186211

Hex Nut, 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

204

MTD GW-1916959

Screw, Hex Cap, 5/16-24 x 4-1/2

$

$

Not available

205

Troy-Bilt GW-1100255

Flat Washer, 5/16
(Superseded to 736-0262)

$3.99

$

Usually ships in 3-6 days

0

$

$
