42038 (7173-H) - Gravely 18-H Lawn Tractor, 18hp Kohler, Hydro Drive DASH AND SUPPORT Parts Diagram

18-H Lawn Tractor, 18hp Kohler, Hydro Drive

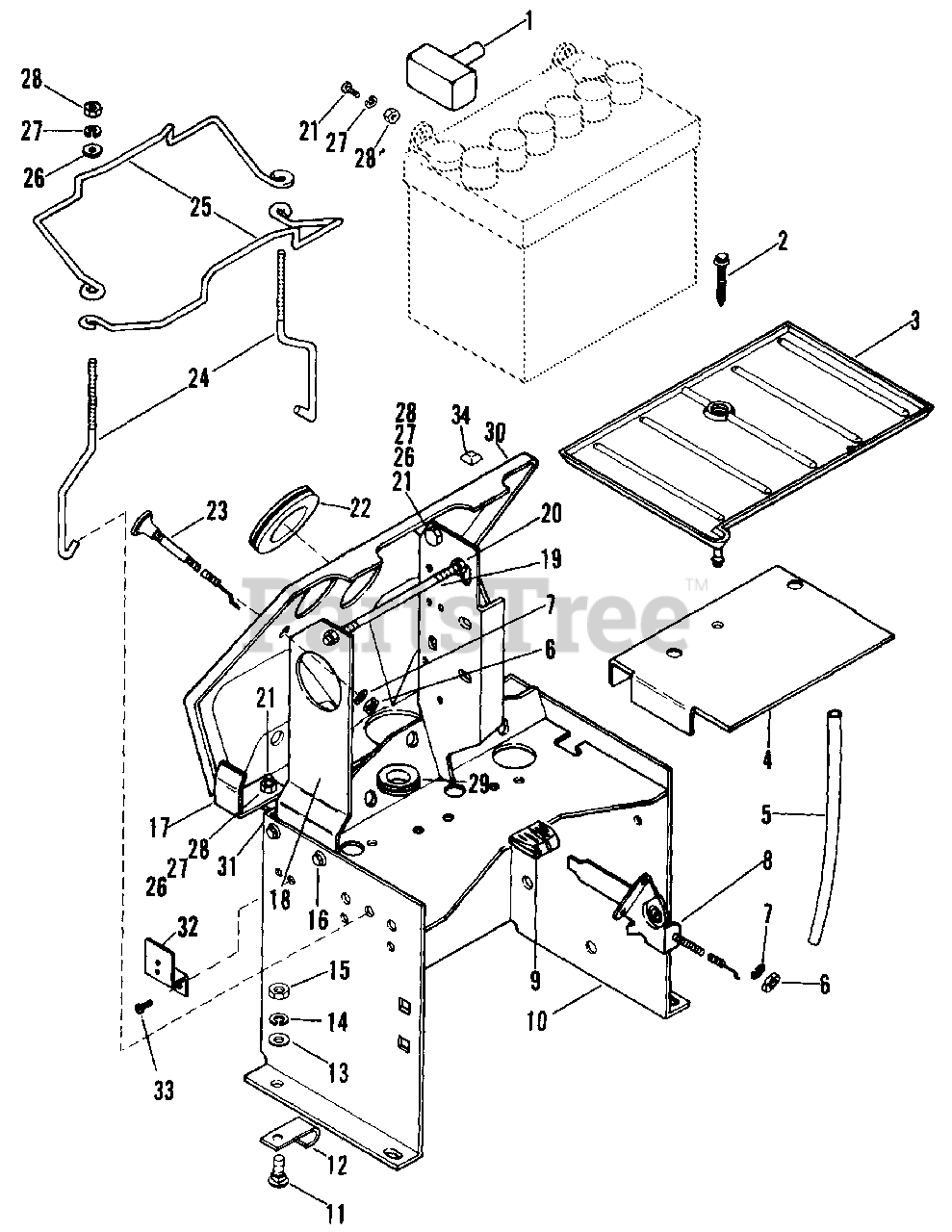

DASH AND SUPPORT Parts Diagram

  • Title

1

Gravely 039619

Insulator
(Superseded to 07505700)

$9.49

$

Usually ships in 4-12 days

0

2

Gravely 039620

Screw, Tapping #12-14 x 1.50 OVHPL
(Superseded to 07411800)

$

$

Not available

3

Gravely 039510

Battery Tray
(Superseded to 03199900)

$

$

Not available

4

Gravely 039621

Battery Stand
(Superseded to 03012400)

$

$

Not available

5

Gravely 041166

Hose, Drain
(Superseded to 03442000)

$

$

Not available

6

Gravely 120361

Nut, #10-24 Hex
(Superseded to 06536600)

$0.99

$

In Stock, Qty 5

0

7

Gravely 120217

Washer, Lock No. 10 SP
(Superseded to 21049900)

$

$

Not available

8

Gravely 039513

Throttle Control
(Superseded to 06912200)

$

$

Not available

9

Gravely 036324

Knob
(Superseded to 07501900)

$

$

Not available

10

Gravely 042712

Dash Support
(Superseded to 03081100)

$

$

Not available

11

Gravely 126216

Bolt, Carriage 5/16-18 x .75

$

$

Not available

12

Gravely 036518

Clip
(Superseded to 06909400)

$3.49

$

In Stock, Qty 5

0

13

Gravely 446548

Washer, Flat .375 x .734 x .065
(Superseded to 06431100)

$

$

Not available

14

Gravely 120379

Washer, Lock 5/16 SP
(Superseded to 06304800)

$

$

Not available

15

Gravely 120376

Nut, Hex 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

16

Gravely 039430

Taptite, 1/4-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 039624

Clip
(Superseded to 03107000)

$

$

Not available

18

Gravely 039625

Hourmeter Mounting Plate
(Superseded to 03089700)

$

$

Not available

19

Gravely 039626

Brace Rod
(Superseded to 03196500)

$

$

Not available

20

Gravely 424215

Nut, Lock 1/4-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 180021

Bolt, Hex 1/4-20 x .875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

22

Gravely 039627

Grommet
(Superseded to 07506100)

$5.99

$

Usually ships in 4-12 days

0

23

Gravely 039514

Choke Control
(Superseded to 06912300)

$

$

Not available

24

Gravely 039628

Tie Down
(Superseded to 03055800)

$

$

Not available

25

Gravely 039629

Hold Down
(Superseded to 03057800)

$

$

Not available

26

Gravely 422845

Washer, Flat .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 120380

Washer, Lock 1/4 Reg.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 120375

Nut, Hex 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

29

Gravely 039632

Grommet
(Superseded to 07506500)

$3.49

$

In Stock, only 1 left!

0

30

Gravely 041165

Dash
(Superseded to 03078100)

$

$

Not available

31

Gravely 039631

Screw, Tapping #10-16 x .50 HWHPL
(Superseded to 07404300)

$

$

Not available

32

Gravely 038772

Bracket, Hood Latch Mtg.
(Superseded to 21247400)

$

$

Not available

33

Gravely 041164

Screw, Tapping #8-15 x .375 R.H.
(Superseded to 07411700)

$

$

Not available

34

Gravely 036495

Stop
(Superseded to 07525100)

$2.49

$

Usually ships in 4-12 days

0

NS

Gravely 039634

Instruction Decal
(Superseded to 07849800)

$

$

Not available

NS

Gravely 039635

Rear Implement Decal
(Superseded to 07854800)

$

$

Not available

NS

Gravely 039766

Decal, Danger
(Superseded to 07729600)

$25.99

$

Usually ships in 4-12 days

0
