42035 - Troy-Bilt 24" Snow Thrower (SN: 420350100101 - 420350199999) Transmission Assembly - Peerless Model 700-005 Parts Diagram

24" Snow Thrower

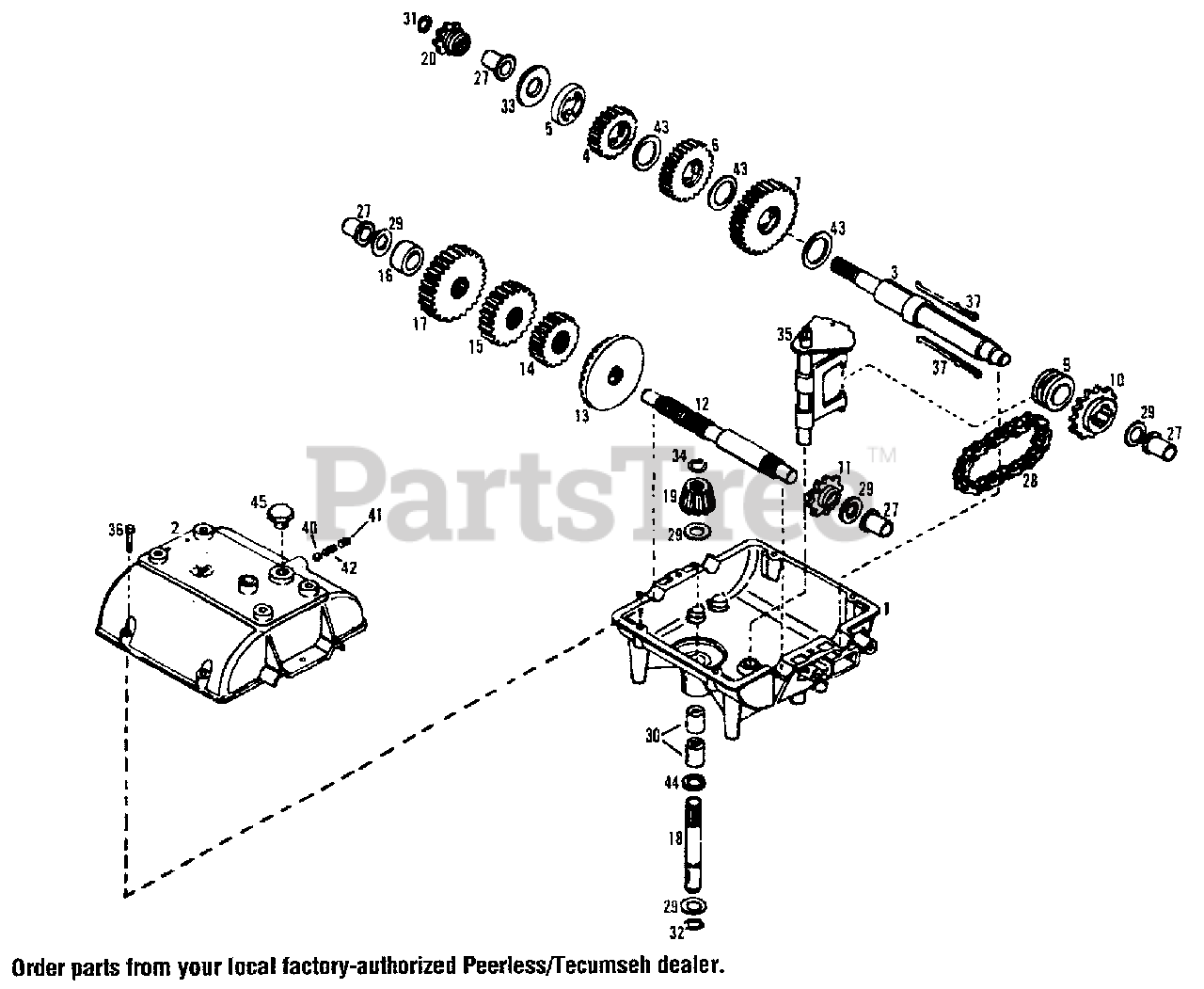

Transmission Assembly - Peerless Model 700-005 Parts Diagram

  • Title
1

Troy-Bilt 776061

Case, Transmission

$

$

Currently unavailable

2

Troy-Bilt 772083

Cover, Transmission

$

$

Currently unavailable

3

Troy-Bilt 776171

Shaft, Output

$

$

Currently unavailable

4

Troy-Bilt 778121A

Gear, Spur (20 Teeth)

$

$

Currently unavailable

5

Troy-Bilt 786072

Spacer, Keyed

$

$

Currently unavailable

6

Troy-Bilt 778124A

Gear, Spur (30 Teeth)
(Superseded to TC-778124A)

$34.99

$

In Stock, only 3 left!

0

7

Troy-Bilt 778125

Gear, Spur (35 Teeth)

$

$

Currently unavailable

9

Troy-Bilt 784266

Collar, Shift

$

$

Currently unavailable

10

Troy-Bilt 786060

Sprocket (14 Teeth)

$

$

Currently unavailable

11

Troy-Bilt 786061

Sprocket (10 Teeth)

$

$

Currently unavailable

12

Troy-Bilt 776134

Shaft, Counter

$

$

Currently unavailable

13

Troy-Bilt 778137A

Gear, Bevel (42 Teeth)
(Superseded to TC-778137A)

$54.99

$

Usually ships in 3-12 days

0

14

Troy-Bilt 778136

Gear. Spur (15 Teeth)

$

$

Currently unavailable

15

Troy-Bilt 778126A

Gear, Spur (20 Teeth)

$

$

Currently unavailable

16

$

$

Currently unavailable

17

Troy-Bilt 778129A

Gear, Spur (30 Teeth)

$

$

Currently unavailable

18

Troy-Bilt 776135

Shaft,lnput

$

$

Currently unavailable

19

Troy-Bilt 778113A

Bevel Pinion, Input
(Superseded to TC-778113A)

$34.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 786047

Sprocket (8 Teeth)

$

$

Currently unavailable

27

Troy-Bilt 780105A

Bushing, Flanged
(Superseded to TC-780105A)

$8.49

$

In Stock, Qty 10

0

28

Troy-Bilt 786062

Chain, Roller (No. 41 Chain, 22 Links)

$

$

Currently unavailable

29

Troy-Bilt 780072

Washer, Thrust
(Superseded to TC-780072)

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 780086

Bearing, Needle

$

$

Currently unavailable

31

Troy-Bilt 792072

Ring, Retaining

$

$

Currently unavailable

32

Troy-Bilt 792035

Ring, Retaining
(Superseded to TC-792035)

$4.49

$

In Stock, Qty 13

0

33

$

$

Currently unavailable

34

Troy-Bilt 788040

Ring, Retaining

$

$

Currently unavailable

35

Troy-Bilt 784270

Rod & Fork Assembly, Shift

$

$

Currently unavailable

36

Troy-Bilt 792073

Screw, Flanged Hex Head Thread-Forming, 1/4-20 x 1-1/4

$

$

Currently unavailable

$

$

Currently unavailable

40

Troy-Bilt 792077

Ball, Steel, 5/16"

$

$

Currently unavailable

41

Troy-Bilt 792078

Screw, Set, 3/8-16 x 3/8

$

$

Currently unavailable

42

Troy-Bilt 792079

Spring
(Superseded to TC-792079)

$4.49

$

In Stock, only 1 left!

0

43

Troy-Bilt 780108

Washer, Thrust
(Superseded to TC-780108)

$4.49

$

In Stock, Qty 9

0

44

Troy-Bilt 792001

"O" Ring
(Superseded to TC-792001)

$4.49

$

In Stock, Qty 9

0

$

$

Currently unavailable
