42035 - Troy-Bilt 24" Snow Thrower (SN: 420350100101 - 420350199999) Auger Assembly Parts Diagram

24" Snow Thrower

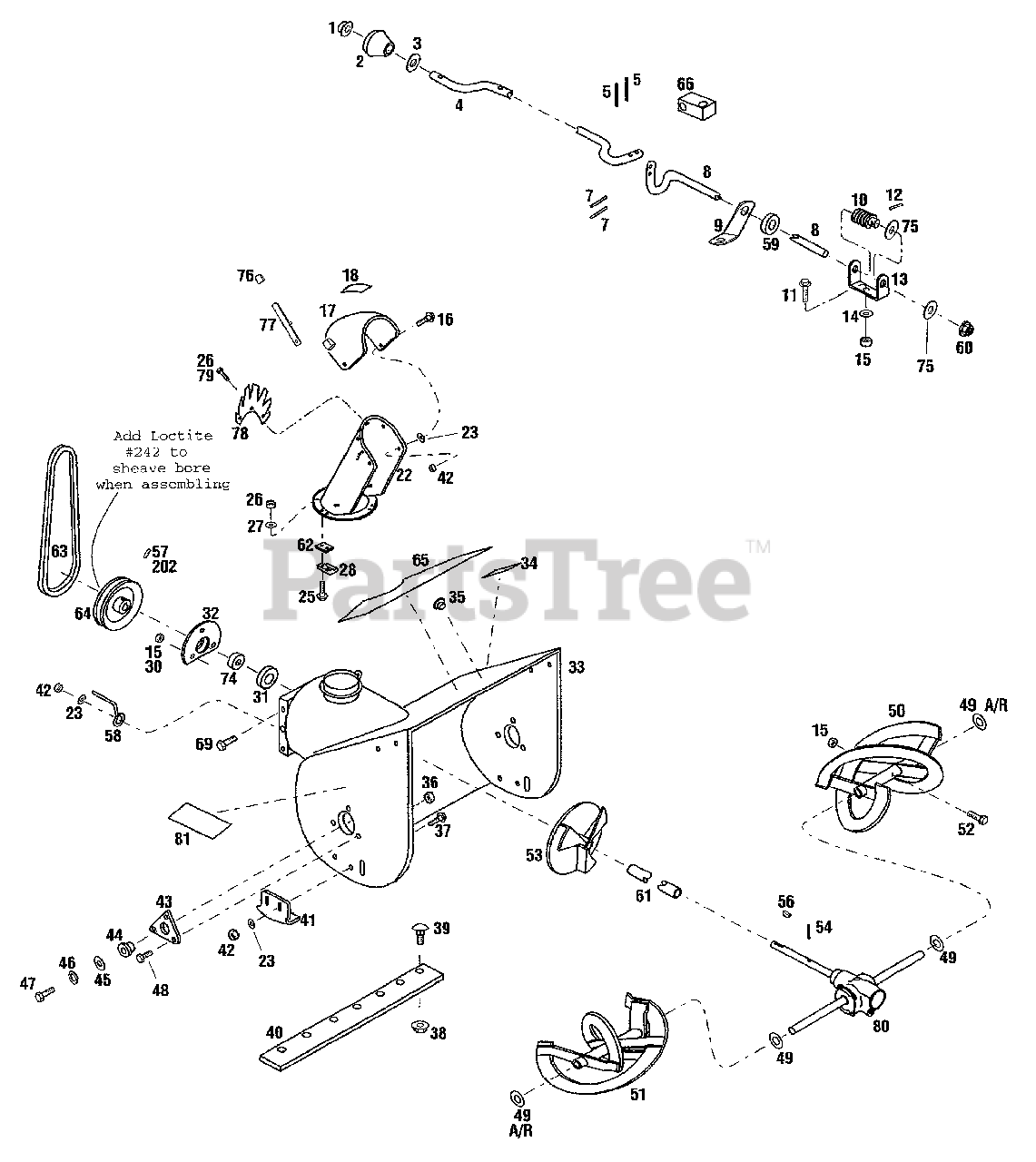

Auger Assembly Parts Diagram

  • Title

1

Troy-Bilt 1724791

Push-On Cap
(Superseded to 926-0100)

$

$

Not available

2

Troy-Bilt 1735868

Knob
(Superseded to 920-0171)

$15.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 1890945

Flat Washer, 3/8
(Superseded to 936-0140)

$

$

Not available

4

MTD 1749283

Chute Control Crank

$

$

Not available

5

Troy-Bilt 1185147

Cotter Pin, 3/32 x 5/8
(Superseded to 914-0111)

$4.99

$

In Stock, Qty 13

0

7

MTD 1177625

Roll Pin, 118 x 3/4

$

$

Not available

8

MTD 1773919

Chute Control Shaft

$

$

Not available

9

MTD 1774114

Crank Support

$

$

Not available

10

MTD 1724870

Worm Gear

$

$

Not available

11

Troy-Bilt 1186329

Flange Screw, 5/16 -18 x 3/4
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 1724885

Drive Pin, 3/32 x 3/4

$

$

Not available

13

MTD 1735869

Gear Support

$

$

Not available

14

Troy-Bilt 1100255

Flat Washer, 5/16
(Superseded to 736-0262)

$3.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 1732499

Locknut, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 1100068

Hex hd. Screw, 3/8-16 x 3/4
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 16

0

17

Troy-Bilt 1759142

Cap Assembly

Note: (Incl. Ref. 18)

$

$

Currently unavailable

18

MTD 1750692

Warning Decal

$

$

Not available

22

MTD 1771723010

Chute

$

$

Not available

23

Troy-Bilt 1107383

Flat Washer, 3/8
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

25

Troy-Bilt 1752461

Sems Screw, #10-24 x 7/8

$4.99

$

In Stock, Qty 11

0

26

Troy-Bilt 1772333

Locknut, #10-24
(Superseded to 712-0161)

$4.49

$

In Stock, only 1 left!

0

27

Troy-Bilt 1103959

Flat Washer, #10

$4.99

$

In Stock, Qty 14

0

28

Troy-Bilt 1724869

Hold Down Clip
(Superseded to 1724869099)

$11.99

$

In Stock, Qty 20+

0

30

MTD 1103195

Hex hd. Screw, 5/16-18 x 5/8

$

$

Not available

31

Troy-Bilt 1185809

Ball Bearing
(Superseded to 941-3006)

$99.99

$

Usually ships in 3-6 days

0

32

MTD 1739488

Bearing Retainer

$

$

Not available

33

MTD 1917462

Housing Assembly

Note: (Incl. Ref. 34)

$

$

Not available

34

MTD 1750691

Warning Decal

$

$

Not available

35

MTD 1750969

Plug

$

$

Not available

36

Troy-Bilt 1734398

Locknut,1/4-20
(Superseded to 912-0291)

$

$

Not available

37

Troy-Bilt 1186126

Carriage Bolt, 3/8-16 x 3/4
(Superseded to 710-0389)

$4.49

$

In Stock, Qty 10

0

38

Troy-Bilt 1186391

Flange Locknut, 5/16-18
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 1712059

Carriage Bolt, 5/16-18 x 1/2
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 1749292001

Scraper Blade

$

$

Currently unavailable

41

Troy-Bilt 1728567010

Skid Shoe
(Superseded to 1728567001)

$

$

Not available

42

Troy-Bilt 1733398

Locknut,3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

43

MTD 1720922

Support Bearing

$

$

Not available

44

MTD 1185846

Flange Bushing

$

$

Not available

45

Troy-Bilt 1100257

Flat Washer, 1/2

$

$

Not available

46

Troy-Bilt 1100245

Lockwasher,1/2
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 5

0

47

MTD 1100053

Hex Bolt, 1/2-13 x 3/4

$

$

Not available

48

Troy-Bilt 1111599

Hex Bolt, 1/4-20 x 5/8
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 1185816

Special Washer

$3.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 1917110001

Left Auger Blade

$

$

Currently unavailable

51

MTD 1917109001

Right Auger Blade

$

$

Not available

52

Troy-Bilt 1750515

Shear Bolt, 5/16-18

$8.49

$

In Stock, Qty 10

0

53

MTD 1740462001

Impeller

$

$

Not available

54

Troy-Bilt 1185348

Roll Pin, 1/4 x 1-1/4
(Superseded to 915-0143)

$

$

Not available

56

MTD 1200033

Key, 3/16 x 3/4

$

$

Not available

57

Troy-Bilt 1733185

Square Set Screw, 5/16-18 x 5/8

$

$

Not available

58

MTD 1750703

Belt Guide

$

$

Not available

59

MTD 1714243

Nylon Bushing

$

$

Not available

60

MTD 1185984

Flange Nut

$

$

Not available

61

MTD 1753356

Sleeve

$

$

Not available

62

Troy-Bilt 1752460

Shim

$4.99

$

In Stock, Qty 10

0

63

Troy-Bilt 1917356

V-Belt

$32.99

$

Usually ships in 3-6 days

0

64

Troy-Bilt 1755282

Auger Sheave
(Superseded to 1725282)

$89.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 1917454

Logo Decal

$

$

Currently unavailable

66

Troy-Bilt 1714782

Swivel Block

$25.99

$

In Stock, only 2 left!

0

69

Troy-Bilt 1724491

Flange Bolt, 5/16-18 x 3/4
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

74

MTD 1719271

Shim Washer

$

$

Not available

75

MTD 1737957

Nylon Washer

$

$

Not available

76

Troy-Bilt 1737499

Grip

$

$

Not available

77

MTD 1723643

Adjusting Lever

$

$

Not available

78

MTD 1771274

Chute Deflector

$

$

Not available

79

MTD 1737940

Truss Head Bolt, 10-24

$

$

Not available

80

MTD 1917113

Gear Case Assembly

Note: (See "Gear Case Assembly" illustration and parts list)

$

$

Not available

81

MTD 1757861

Logo Decal

$

$

Not available

202

Troy-Bilt 1757032

Loctite #242, .02 oz.
(Superseded to GW-97092)

Note: Item not included with unit. Order separately.

$17.99

$

Usually ships in 3-6 days

0
