42027 - Troy-Bilt 21" Snow Thrower (SN: 420270100101 - 420271199999) MAIN ASSEMBLY Parts Diagram

21" Snow Thrower

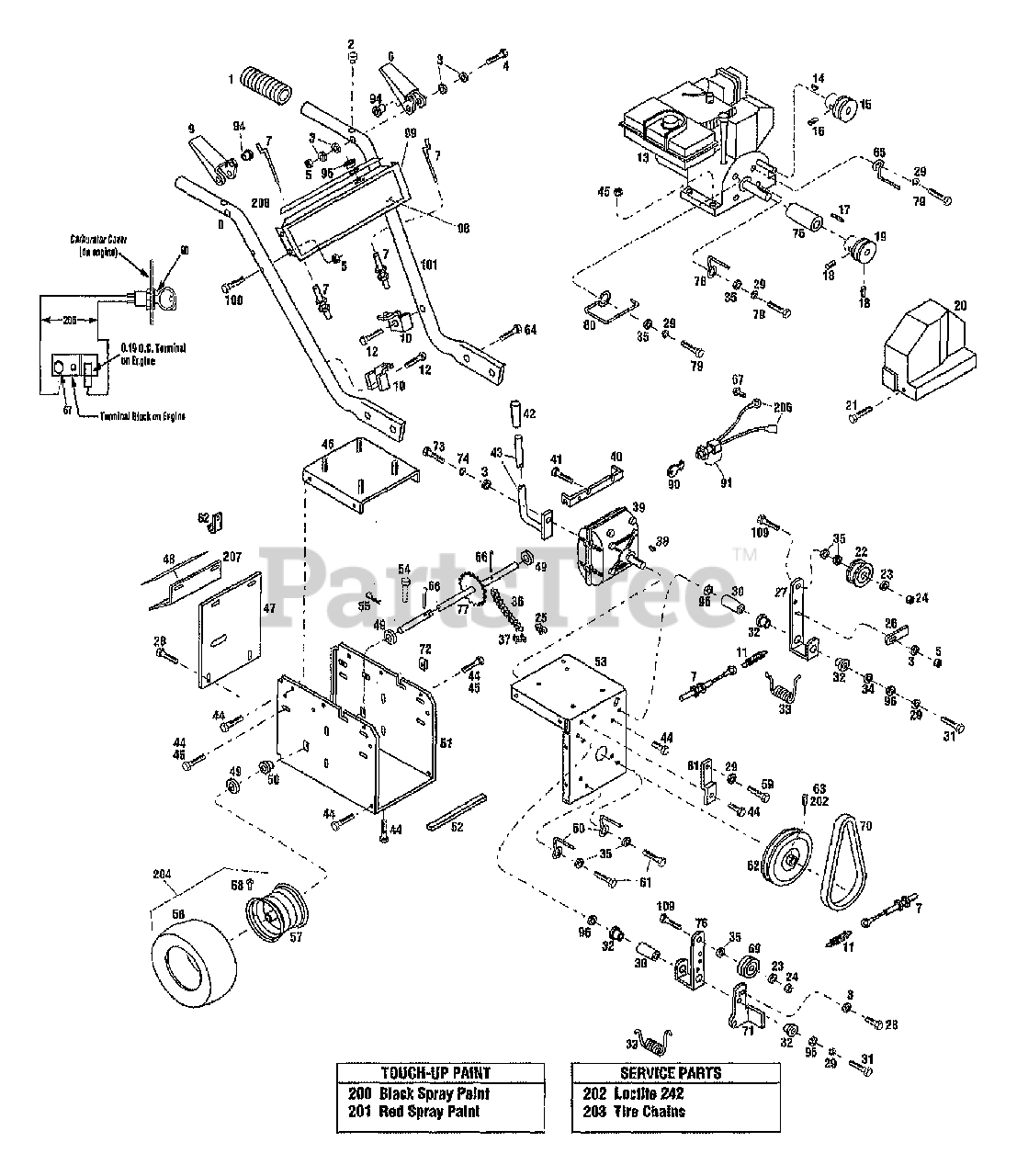

MAIN ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1703539

GRIP-FLEX
(Superseded to 720-0274)

$11.99

$

In Stock, Qty 8

0

2

MTD 1750796

BUMPER-RUBBER

$

$

Not available

3

Troy-Bilt 1107381

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

4

Troy-Bilt 1111601

SCR-HH 1/4-20X1.75 G5 ZP

$

$

Not available

5

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

6

Troy-Bilt 1745672001

LEVER-CONTROL

$

$

Not available

7

Troy-Bilt 1771727

CABLE-CONTROL
(Superseded to 1771727P)

$101.99

$

In Stock, Qty 6

0

8

MTD 1754177010

HANDLEBAR-RH

$

$

Not available

9

MTD 1745673001

LEVER-CONTROL

$

$

Not available

10

Troy-Bilt 1749977001

BRKT-CONTROL CABLE

$

$

Not available

11

MTD 1752500

SPRING-EXT

$

$

Not available

12

Troy-Bilt 1754128

SCR-FLANGE 1/4-20X3/4 GR5

$3.99

$

In Stock, only 2 left!

0

13

0

ENGINE, TECUMSEH MODEL HSK60

$

$

Not available

14

MTD 1104435

KEY-WOODRUFF 1/8 X 5/8

$

$

Not available

15

MTD 1759446

PULLEY-PTO

$

$

Not available

16

MTD 1103441

SCR-SET 1/4-20X3/8 CONE

$

$

Not available

17

Troy-Bilt 1108852

KEY-.187 SQ X .75

$

$

Not available

18

MTD 1185596

SCR-SET 5/16-18 X 5/16

$

$

Not available

19

MTD 1771238

PULLEY-ENGINE

$

$

Not available

20

MTD 1754175

COVER-BELT SC

$

$

Not available

21

Troy-Bilt 1115815

SCR-TRUSS #10-24 X 5/8
(Superseded to 710-0425)

$4.99

$

Usually ships in 3-6 days

0

22

MTD 1729440

PULLEY-IDLER

$

$

Not available

23

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 182087

LINK-OFFSET

$

$

Currently unavailable

26

MTD 1751017

STOP-IDLER ARM

$

$

Not available

27

MTD 1759444

ARM-IDLER WELD

$

$

Not available

28

MTD 1724492

SCR 1/4-20X.5 FL SELF TAP

$

$

Not available

29

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

MTD 1748659

SPACER-.5X.334X1.79

$

$

Not available

31

MTD 1111608

SCR-HH 5/16-18X2.5

$

$

Not available

32

Troy-Bilt 1715538

BUSHING-.5X.5 NYLON FLNG

$

$

Not available

33

MTD 1740102

SPRING-TORSION

$

$

Not available

34

Troy-Bilt 1100257

WASHER-1/2 FLAT

$

$

Not available

35

Troy-Bilt 1100255

WASHER-FLAT 5/16 SAE
(Superseded to 736-0262)

$3.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 1774473

CHAIN-DRIVE

$

$

Currently unavailable

37

Troy-Bilt 1185013

LINK-CONNECTOR #41 CHAIN
(Superseded to 913-0723)

$

$

Not available

38

MTD 1200033

KEY-HI PRO .187X.75

$

$

Not available

39

MTD 1740100

TRANSMISSION-PEERLESS 700

$

$

Not available

40

MTD 1740139010

BRKT-REINFORCMENT

$

$

Not available

41

Troy-Bilt 1766984

SCR-HFLK 5/16-18X.75

$3.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 1737041

GRIP-HANDLE
(Superseded to 720-0312)

$4.99

$

In Stock, Qty 5

0

43

MTD 1774124010

HANDLE-SHIFT

$

$

Not available

44

MTD 1186327

SCR-HFLK 5/16-18X.50 ZP

$

$

Not available

45

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 1758264010

ASSM-DOUBLER PLATE

$

$

Currently unavailable

47

MTD 1749291010

COVER-REAR

$

$

Not available

48

MTD 1757862

DECAL-SHIFT

$

$

Not available

49

MTD 1739463

WASHER-FLAT

$

$

Not available

50

Troy-Bilt 1739470

BEARING-FLANGE

$36.99

$

In Stock, Qty 5

0

51

MTD 1773892010

FRAME

$

$

Not available

52

MTD 1750799

PAD-RUBBER

$

$

Not available

53

MTD 1749299010

ASSM-FRAME COVER

$

$

Not available

54

MTD 1724760

PIN-CLEVIS .25X1.88

$

$

Not available

55

Troy-Bilt 1717897

PIN-CLIP .08

$3.49

$

Usually ships in 3-6 days

0

56

MTD 1755827

TIRE-4.1/3.5X6

$

$

Not available

57

Troy-Bilt 1760189

RIM-WHEEL

$

$

Currently unavailable

58

Troy-Bilt 1718086

STEM-VALVE
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

59

MTD 1100029

SCR-HH 5/16-24X.75 G5 ZP

$

$

Not available

60

MTD 1750704

GUIDE-BELT

$

$

Not available

61

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

62

MTD 1740127

SHEAVE-TRANS

$

$

Not available

63

Troy-Bilt 1733185

SCR-SET SQ 5/16-18X5/8

$

$

Not available

64

Troy-Bilt 1186328

SCR-HFLK 5/16-18X.62 G5ZP
(Superseded to 710-04049)

$4.99

$

In Stock, Qty 11

0

65

Troy-Bilt 1759447

GUIDE-BELT

$

$

Currently unavailable

66

MTD 1100351

PIN-COTTER .120X1.25 ZP

$

$

Not available

67

Troy-Bilt 1186299

SCR 10-32
(Superseded to 710-04454)

$4.49

$

In Stock, Qty 14

0

69

Troy-Bilt 1710566

IDLER-FLAT

$

$

Currently unavailable

70

Troy-Bilt 1746379

BELT-V
(Superseded to 1720938)

$46.99

$

In Stock, only 3 left!

0

71

Troy-Bilt 1771750

ARM-BRAKE

$

$

Currently unavailable

72

Troy-Bilt 1185986

NUT-SPEED #10
(Superseded to 712-0147)

$6.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt 1100002

SCR-HH 1/4-28X.75 G5 ZP
(Superseded to 710-0412)

$5.99

$

In Stock, Qty 9

0

74

Troy-Bilt 1100241

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

75

MTD 1740124

SPACER-1.03X.875X1.25

$

$

Not available

76

MTD 1748443

ARM-IDLER

$

$

Not available

77

MTD 1758184

AXLE-WELD

$

$

Not available

78

Troy-Bilt 1720717

GUIDE-BELT

$

$

Not available

79

Troy-Bilt 1100004

SCR-HH 5/16-24X.75 G5 ZP
(Superseded to 710-0157)

$4.49

$

In Stock, Qty 15

0

80

MTD 1758259

GUIDE-BELT

$

$

Not available

81

MTD 1754158

BRKT-ENGINE SUPPORT

$

$

Not available

82

Troy-Bilt 1754159

CLAMP-CABLE
(Superseded to 726-0175)

$

$

Not available

90

MTD 1727326

KEY

$

$

Not available

91

Troy-Bilt 1727321

SWITCH-IGN W/HDW & KEYS
(Superseded to 925-0873)

$

$

Not available

94

Troy-Bilt 1771728

BEARING-NYLINER

$7.99

$

In Stock, only 4 left!

0

95

MTD 1185585

GROMMET-FLIP

$

$

Not available

96

Troy-Bilt 1100254

WASHER-.75X.312X.065 ZP
(Superseded to 936-0159)

$

$

Not available

98

MTD 1774112

DECAL-LOGO 42027

$

$

Not available

99

MTD 1774209

CONSOLE

$

$

Not available

100

Troy-Bilt 1100811

SCR-HH 1/4-20X1.5 G5ZP
(Superseded to 710-0606)

$5.49

$

In Stock, Qty 10

0

101

MTD 1754176010

HANDLEBAR-LH

$

$

Not available

109

MTD 1748393

SCR-CARR 3/8-16X1.75 G5 ZP

$

$

Not available

200

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0

201

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0

202

Troy-Bilt 1757032

LOCTITE-242 (.5 ML TUBE)
(Superseded to GW-97092)

$17.99

$

Usually ships in 3-6 days

0

203

MTD 1725381

CHAINS-TIRE (PAIR)

$

$

Not available

204

MTD 1760190

ASSM-WHEEL & TIRE

$

$

Not available

205

Troy-Bilt 1774199

KIT-SVC 6HP SNOWTHROWER

$

$

Currently unavailable

206

MTD 1771748

ASSM-WIRE LEAD

$

$

Not available

207

MTD 1774122

BRKT-SHIFT DECAL

$

$

Not available

208

MTD 1773817

DECAL-INST

$

$

Not available
