42021 - Troy-Bilt 17" Snow Thrower (SN: 420210100101 - 420211199999) DISCHARGE CHUTE, DEFLECTOR CONTROL HANDLE Parts Diagram

17" Snow Thrower

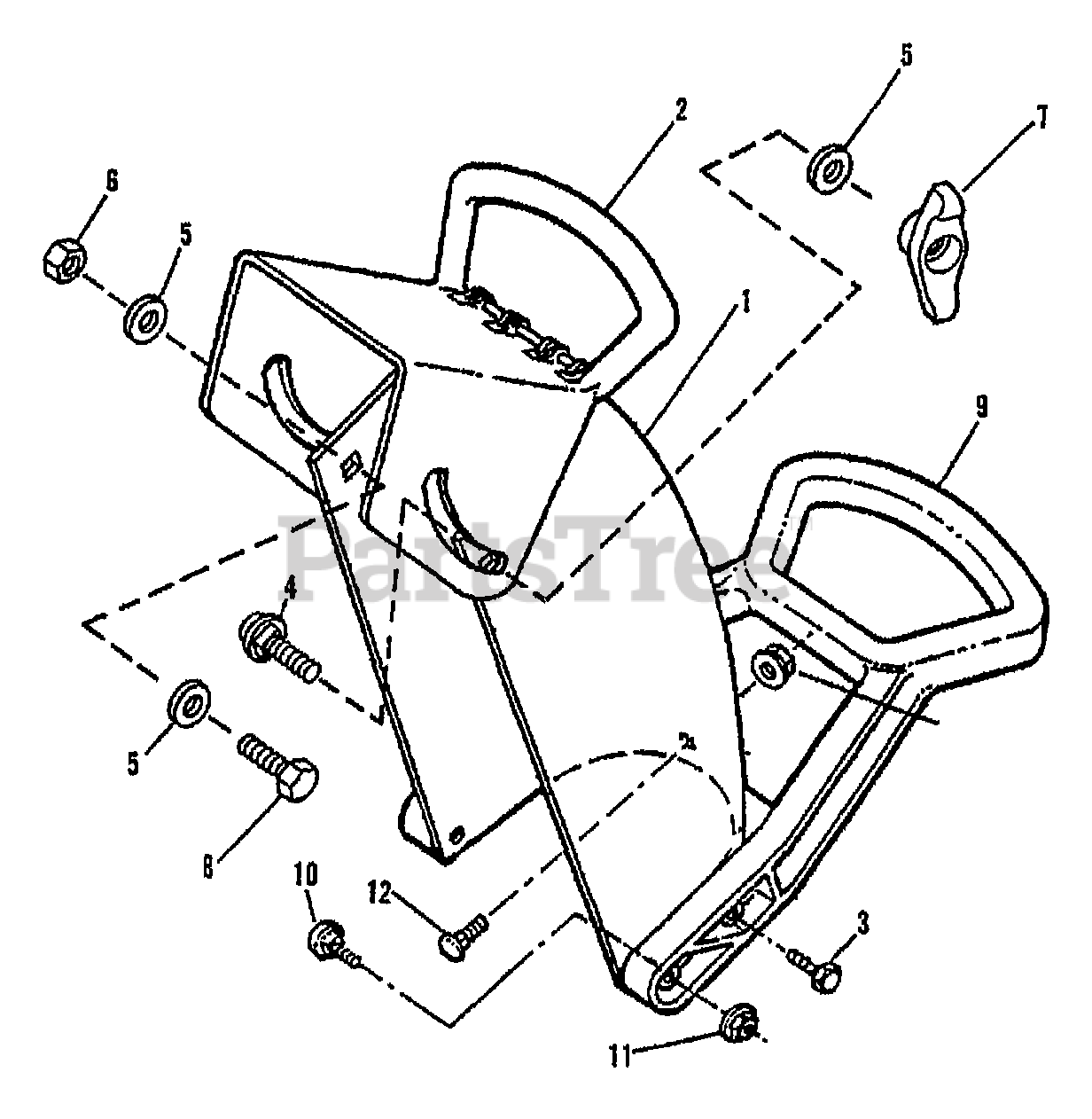

DISCHARGE CHUTE, DEFLECTOR CONTROL HANDLE Parts Diagram

  • Title
1

MTD 1904595

CHUTE-DISCHARGE W/DECALS

$

$

Not available

2

MTD 1904596

DEFLECTOR-CHUTE W/DECALS

$

$

Not available

3

Troy-Bilt 1904597

SCR-HH 5/16-18X.75

$

$

Currently unavailable

4

MTD 1904598

SCR-CARR 5/16-18X1

$

$

Not available

5

Troy-Bilt 1904599

WASHER-FLAT 5/16

$

$

Currently unavailable

6

Troy-Bilt 1904600

NUT-CTR LK 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

7

MTD 1904601

KNOB-CHUTE DEFLECTOR

$

$

Not available

8

Troy-Bilt 1904603

SCR-HH 5/16-24X.75

$

$

Currently unavailable

9

MTD 1904604

HANDLE-CHUTE CONTROL

$

$

Not available

10

Troy-Bilt 1904605

SCR-CARR 5/16-18X1.25

$

$

Currently unavailable

11

Troy-Bilt 1904582

NUT-HFLK 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

12

MTD 1904606

SCR-CARR 5/16-18X.75

$

$

Not available
