42020 - Troy-Bilt 17" Snow Thrower (SN: 420200100101 - 420201199999) COVERS, ENGINE Parts Diagram

17" Snow Thrower

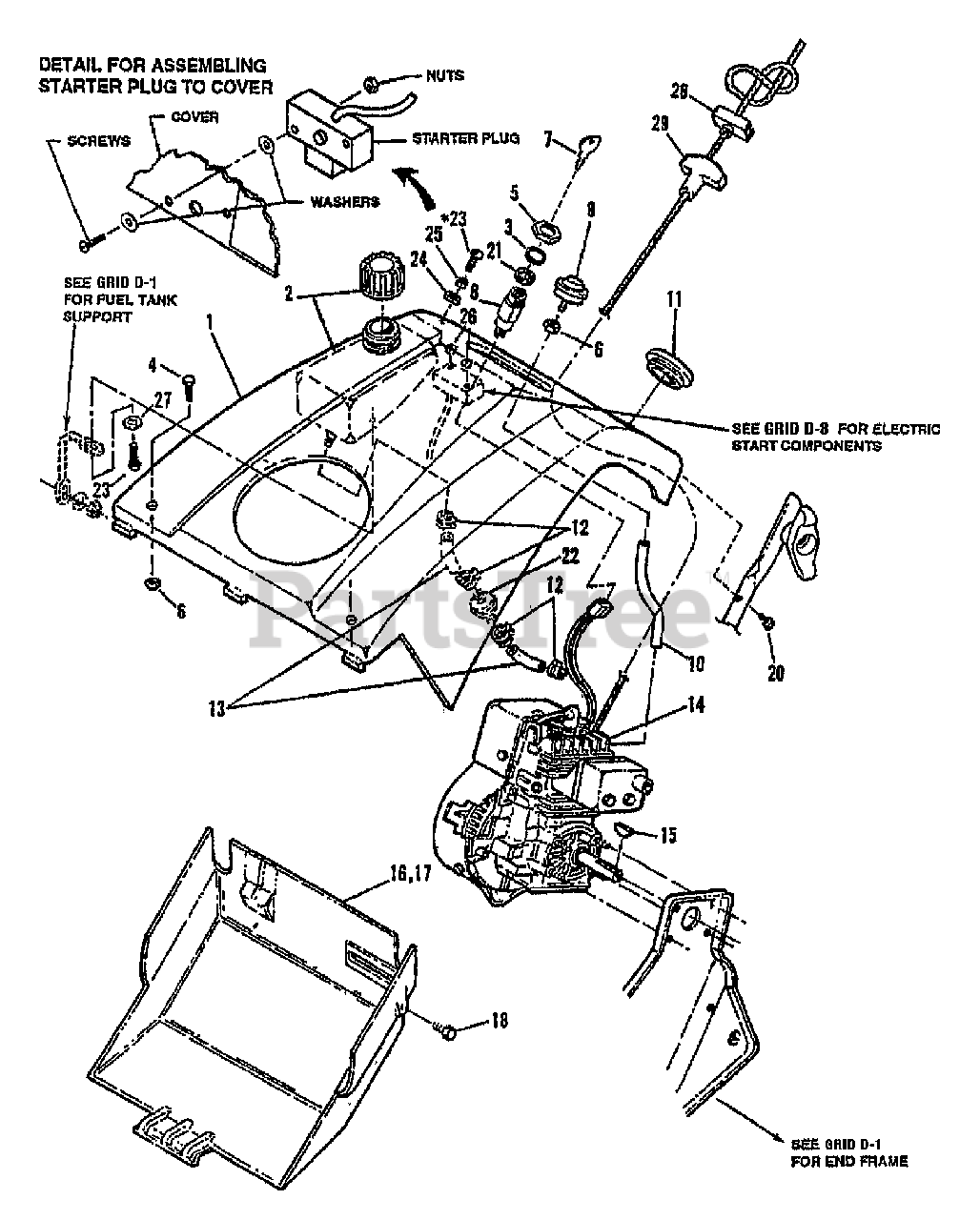

COVERS, ENGINE Parts Diagram

  • Title

1

MTD 1904656

COVER-TOP W/EYELET

$

$

Not available

2

MTD 1904658

ASSM-FUEL TANK W/CAP

$

$

Not available

3

MTD 1904660

SPACER-IGNITION

$

$

Not available

4

MTD 1904647

SCR-MACH 1/4-20X.5

$

$

Not available

5

MTD 1904661

NUT-HEX 5/8-32

$

$

Not available

6

MTD 1904662

NUT-HFLK 1/4-20

$

$

Not available

7

Troy-Bilt 1904663

KEY-IGNITION
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

8

Troy-Bilt 1904664

SWITCH-IGNITION
(Superseded to 925-0873)

$

$

Not available

9

Troy-Bilt 1904665

PRIMER
(Superseded to BS-394281S)

$16.99

$

Usually ships in 2-12 days

0

10

MTD 1904666

HOSE-PRIMER

$

$

Not available

11

MTD 1904667

PLUG-HOLE

$

$

Not available

12

MTD 1904668

CLAMP-FUEL HOSE

$

$

Not available

13

MTD 1904669

HOSE-FUEL 8 1/2" LG

$

$

Not available

14

0

ENG.3HP TEC., MODEL HSK600-1683T-MANUAL STRT

$

$

Not available

14

0

ENG.3HP TEC., MODEL HSK600-1701T-ELEC. STRT

$

$

Not available

15

MTD 1904671

KEY-WDRF 5/32 X 5/8

$

$

Not available

16

MTD 1904672

COVER-BOTTOM RECOIL START

$

$

Not available

17

MTD 1904673

COVER-BOTTOM ELEC START

$

$

Not available

18

MTD 1904674

SCR-HH #10X1/2 STH

$

$

Not available

19

0

THIS REF. NOT USED

$

$

Not available

20

MTD 1904676

SCR-HH 8-18X1.5 STH

$

$

Not available

21

MTD 1904677

WASHER-LK 5/8 INT TOOTH

$

$

Not available

22

MTD 1904678

FILTER-IN LINE

$

$

Not available

23

MTD 1904679

SCR-TORX HD 1/4-20X.625

$

$

Not available

24

Troy-Bilt 1904680

ISOLATOR-FUEL TANK/COVER

$

$

Currently unavailable

25

MTD 1904681

SPACER

$

$

Not available

26

MTD 1904641

WASHER-FLAT #10

$

$

Not available

27

MTD 1904655

WASHER-LOCK 1/4

$

$

Not available

28

MTD 1904682

INSERT-STARTER HANDLE

$

$

Not available

29

Troy-Bilt 1904683

HANDLE-PULL ROPE

$

$

Currently unavailable
