42013 - Troy-Bilt 21" Snow Thrower (SN: 420130200101 - 420131199999) Control, Trim And Frame Assembly Parts Diagram

21" Snow Thrower

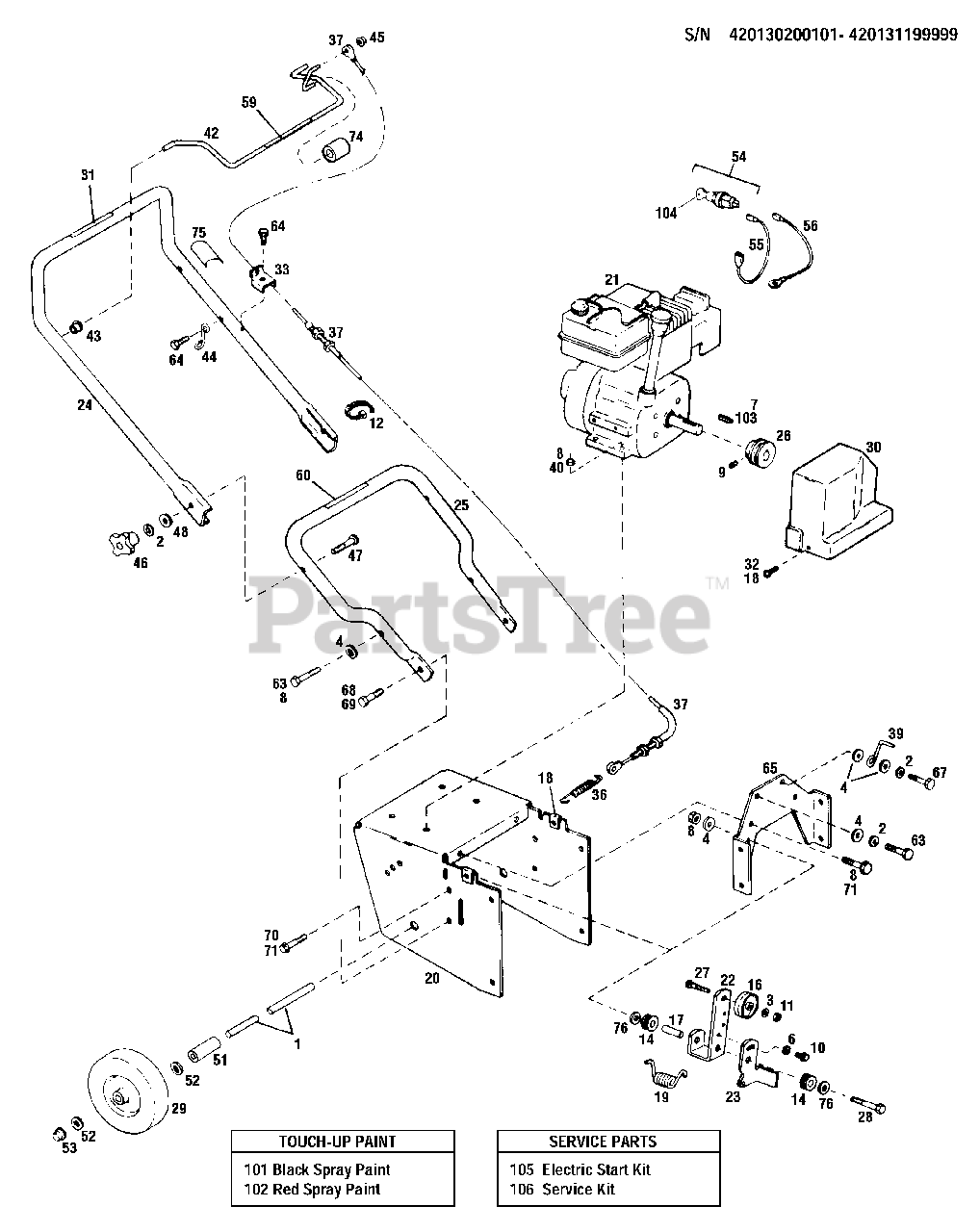

Control, Trim And Frame Assembly Parts Diagram

  • Title

1

MTD 1769671

Axle

$

$

Not available

2

Troy-Bilt 1100242

Lockwasher, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 1100243

Lockwasher, 3/8
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 1100255

Flat Washer, 5/16
(Superseded to 736-0262)

$3.99

$

In Stock, Qty 10

0

6

Troy-Bilt 1107381

Flat Washer, 1/4
(Superseded to 936-3020)

$

$

Not available

7

Troy-Bilt 1108852

Square Key. 3/16 x 3/4

$

$

Not available

8

Troy-Bilt 1732499

Lockout, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

9

MTD 1185596

Set Screw, 5/16-18 x 5/16

$

$

Not available

10

MTD 1724492

Thread-forming Screw, 1/4-20 x 1/2

$

$

Not available

11

Troy-Bilt 1186231

Nut. 3/8-16
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 1735531

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 1715538

Nyliner Bearing

$

$

Not available

16

Troy-Bilt 1710566

Flat Idler

$

$

Currently unavailable

17

MTD 1748659

Tubular Spacer

$

$

Not available

18

Troy-Bilt 1185986

U-type Speed Nut, 10-24
(Superseded to 712-0147)

$6.99

$

Usually ships in 3-6 days

0

19

MTD 1740102

Torsion Spring

$

$

Not available

20

Troy-Bilt 1756070010

Frame

$

$

Currently unavailable

21

Engine, 4 HP, Tecumseh Model HSK 40"

Note: Purchase engine parts from the nearest authorized Tecumseh engine dealer. Refer to engine for type and code

$

$

Not available

22

MTD 1748443

Idler Arm

$

$

Not available

23

MTD 1752228

Brake Arm

$

$

Not available

24

Troy-Bilt 1754136010

Upper Handle Bar

$

$

Not available

25

MTD 1752085010

Lower Handle Bar

$

$

Not available

26

MTD 1752211

Engine Pulley

$

$

Not available

27

MTD 1740130

Carriage Bolt 3/8-16 x 1-1/2

$

$

Not available

28

Troy-Bilt 1111609

Bolt 5/16-18 x 2-3/4
(Superseded to 710-0176)

$4.49

$

In Stock, only 2 left!

0

29

Troy-Bilt 1765740

Wheel and Tire
(Superseded to 753-08091)

$46.99

$

In Stock, Qty 13

0

30

MTD 1754175

Belt Cover

$

$

Not available

31

MTD 1752305

Instruction Decal

$

$

Not available

32

Troy-Bilt 1115815

Round-head Bolt 10-24 x 5/8
(Superseded to 710-0425)

Note: Purchase engine parts from the nearest authorized Tecumseh engine dealer. Refer to engine for type and code

$4.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 1749977001

Control Cable Bracket

$

$

Not available

36

MTD 1756117

Extension Spring

$

$

Not available

37

MTD 1756077

Cable

$

$

Not available

39

MTD 1752229

Belt Guide

$

$

Not available

40

Troy-Bilt 1100799

Bolt 5/16-18 x 1-1/2
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

42

MTD 1752230001

Contra Lever

$

$

Not available

43

MTD 1747499

Flange Bearing

$

$

Not available

44

MTD 1769674

Chute Crank Support

$

$

Not available

45

Troy-Bilt 1727342

Push-on Cap
(Superseded to 726-0135)

$6.99

$

In Stock, only 1 left!

0

46

MTD 1763767

Knob

$

$

Not available

47

Troy-Bilt 1731025

Curved-Head Bolt. 5/16-18 x 2
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

48

Troy-Bilt 1107382

Flat Washer, 5/16
(Superseded to 936-0275)

$

$

Not available

51

MTD 1752092

Spacer

$

$

Not available

52

Troy-Bilt 1890234

Flat Washer, 1/2
(Superseded to GW-20546)

$

$

Not available

53

Troy-Bilt 1711947

Push-on Cap, 1/2
(Superseded to 726-0299)

$8.49

$

In Stock, Qty 20+

0

54

Troy-Bilt 1727321

ignition Switch
(Superseded to 925-0873)

Note: (Ind Ref. 104)

$

$

Not available

55

MTD 1752302

Wire Lead

$

$

Not available

56

MTD 1747117

Ground Lead

$

$

Not available

59

MTD 1752366

Auger Control Decal

$

$

Not available

60

Troy-Bilt 1752367

Instruction Decal

$

$

Currently unavailable

63

MTD 1100808

Bolt, 5/16-18 x 1-1/4

$

$

Not available

64

Troy-Bilt 1754128

Flange Lock Bolt 1/4-20 x 3/4

$3.99

$

In Stock, only 2 left!

0

65

Troy-Bilt 1754137001

Engine Support

$

$

Currently unavailable

66

Troy-Bilt 1100004

Bolt, 5/16-24 x 3/4
(Superseded to 710-0157)

$4.49

$

In Stock, Qty 18

0

67

MTD 1100005

Bolt, 5/16-24 x 1

$

$

Not available

68

MTD 1186345

Flange Lock Boll, 3/8-16 x 3/4

$

$

Not available

69

Troy-Bilt 1186393

Flange Lockout, 3/8-16

$3.49

$

In Stock, only 2 left!

0

70

MTD 1186327

Flange Lock Boll, 5/16-18 x 1/2

$

$

Not available

71

Troy-Bilt 1186391

Flange Locknut 5/16-18
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

74

MTD 1751526

Handle Grip

$

$

Not available

75

MTD 1763152

Chute Control Decal

$

$

Not available

76

Troy-Bilt 1100254

Flat Washer. 1/4
(Superseded to 936-0159)

$

$

Not available

101

Troy-Bilt 1735222

Black Spray Paint, 13 oz. Can
(Superseded to 788-0637A)

Note: Item not included with unit. Order separately.

$30.99

$

In Stock, only 1 left!

0

102

Troy-Bilt 1900706

Red Spray Paint 13 oz Can
(Superseded to 788-0638A)

Note: Item not included with unit. Order separately.

$24.99

$

Usually ships in 3-6 days

0

103

Troy-Bilt 1757032

Loctite 242, .02 oz. Tube
(Superseded to GW-97092)

Note: Item not included with unit. Order separately.

$17.99

$

Usually ships in 3-6 days

0

104

MTD 1718266

Ignition Key (key only)

$

$

Not available

105

MTD 1728840

Electric Start Kit

Note: Item not included with unit. Order separately.

$

$

Not available

106

Troy-Bilt 1771729

Service Kit

Note: (Incl. V-Belt, Spark Plug. Auger Pad Kit. Fuel Stabilizer. Motor O. Spray Lubricant); Item not included with unit. Order separately.

$

$

Currently unavailable

$

$

Not available
