42013 - Troy-Bilt 21" Snow Thrower (SN: 420130100101 - 420130199999) TRIM, CONTROL, FRAME & ENGINE Parts Diagram

21" Snow Thrower

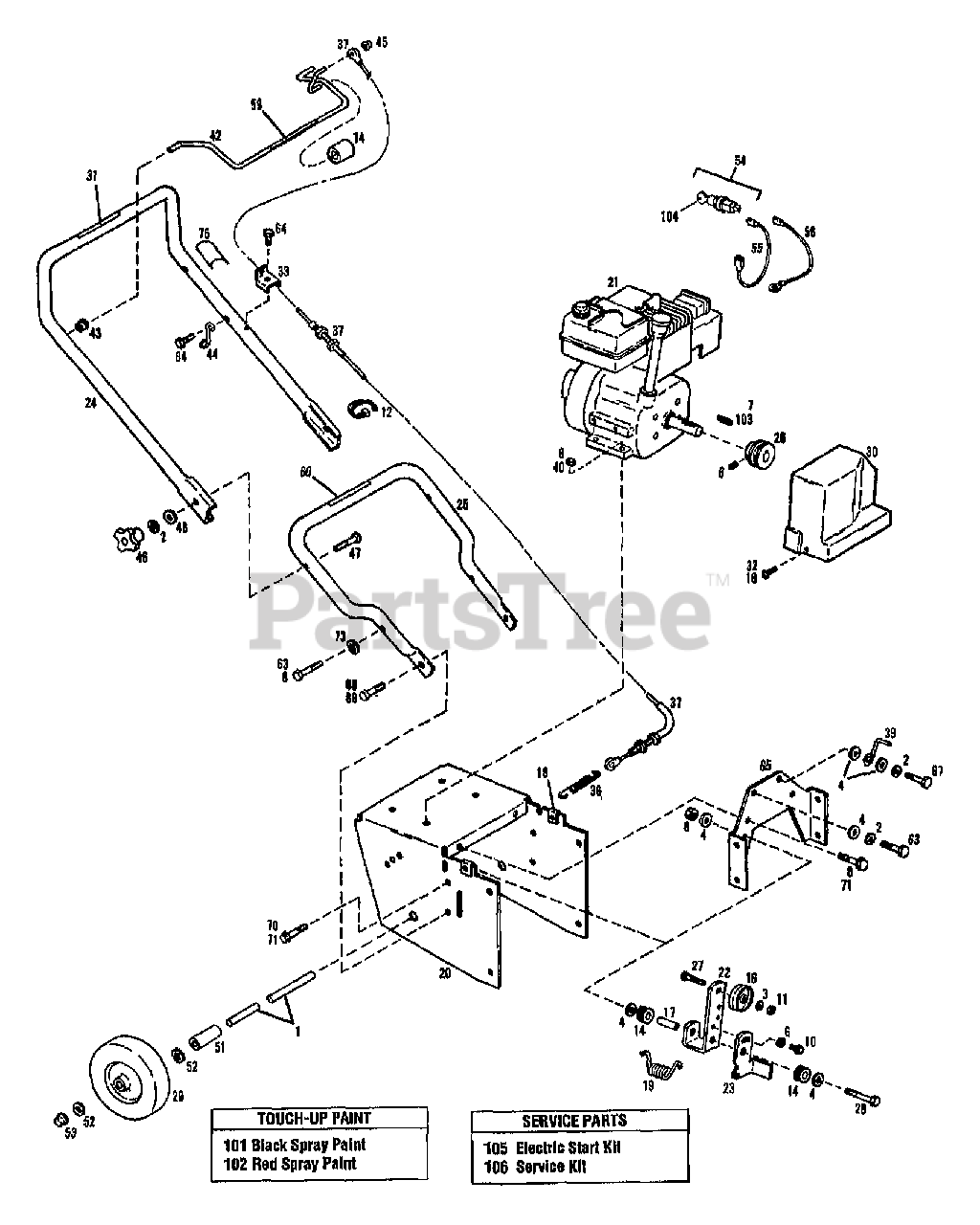

TRIM, CONTROL, FRAME & ENGINE Parts Diagram

  • Title

1

MTD 1769671

AXLE-WHEEL

$

$

Not available

2

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 1100255

WASHER-FLAT 5/16 SAE
(Superseded to 736-0262)

$3.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1107381

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

7

Troy-Bilt 1108852

KEY-.187 SQ X .75

$

$

Not available

8

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

9

MTD 1185596

SCR-SET 5/16-18 X 5/16

$

$

Not available

10

MTD 1724492

SCR 1/4-20X.5 FL SELF TAP

$

$

Not available

11

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 1715538

BUSHING-.5X.5 NYLON FLNG

$

$

Not available

16

Troy-Bilt 1710566

IDLER-FLAT

$

$

Currently unavailable

17

MTD 1748659

SPACER-.5X.334X1.79

$

$

Not available

18

Troy-Bilt 1185986

NUT-SPEED #10
(Superseded to 712-0147)

$6.99

$

Usually ships in 3-6 days

0

19

MTD 1740102

SPRING-TORSION

$

$

Not available

20

Troy-Bilt 1756070010

FRAME

$

$

Currently unavailable

21

0

ENGINE, 4HP TECUMSEH, MODEL HSSK40-55610S

$

$

Not available

22

MTD 1748443

ARM-IDLER

$

$

Not available

23

MTD 1752228

ARM-BRAKE

$

$

Not available

24

Troy-Bilt 1754136010

HANDLEBAR-UPPER

$

$

Not available

25

MTD 1752085010

HANDLEBAR-LOWER

$

$

Not available

26

MTD 1752211

SHEAVE-ENGINE

$

$

Not available

27

MTD 1740130

SCR-CARR 3/8-16X1.50 G5 ZP

$

$

Not available

28

Troy-Bilt 1111609

SCR-HH 5/16-18X2.75 G5 ZP
(Superseded to 710-0176)

$4.49

$

In Stock, only 2 left!

0

29

Troy-Bilt 1765740

ASSM-TIRE & WHEEL
(Superseded to 753-08091)

$46.99

$

In Stock, Qty 13

0

30

MTD 1754175

COVER-BELT SC

$

$

Not available

31

MTD 1752305

DECAL-SC

$

$

Not available

32

Troy-Bilt 1115815

SCR-TRUSS #10-24 X 5/8
(Superseded to 710-0425)

$4.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 1749977001

BRKT-CONTROL CABLE

$

$

Not available

36

MTD 1756117

SPRING-EXT

$

$

Not available

37

MTD 1756077

CABLE-AUGER DR

$

$

Not available

39

MTD 1752229

GUIDE-BELT

$

$

Not available

40

Troy-Bilt 1100799

SCR-HH 5/16-18X1.5 G5 ZP
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

42

MTD 1752230001

LEVER-CONTROL

$

$

Not available

43

MTD 1747499

BEARING-FLANGED

$

$

Not available

44

MTD 1769674

SUPT-CHUTE CRANK

$

$

Not available

45

Troy-Bilt 1727342

CAP-PUSH ON .312 DIA
(Superseded to 726-0135)

$6.99

$

In Stock, only 1 left!

0

46

MTD 1763767

KNOB

$

$

Not available

47

Troy-Bilt 1731025

SCR-CURVED HD 5/16-18X2.0
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

48

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

51

MTD 1752092

SPACER-.656X.512X1.0

$

$

Not available

52

Troy-Bilt 1890234

WASHER-FLAT .88X.5X.06 ZP
(Superseded to GW-20546)

$

$

Not available

53

Troy-Bilt 1711947

CAP-PUSH ON
(Superseded to 726-0299)

$8.49

$

In Stock, Qty 20+

0

54

Troy-Bilt 1727321

SWITCH-IGN W/HDW & KEYS
(Superseded to 925-0873)

$

$

Not available

55

MTD 1752302

LEAD-SC

$

$

Not available

56

MTD 1747117

LEAD SC

$

$

Not available

59

MTD 1752366

DECAL-SC

$

$

Not available

60

Troy-Bilt 1752367

DECAL-SC

$

$

Currently unavailable

63

MTD 1100808

SCR-HH 5/16-18X1.25 G5ZP

$

$

Not available

64

Troy-Bilt 1754128

SCR-FLANGE 1/4-20X3/4 GR5

$3.99

$

In Stock, only 2 left!

0

65

Troy-Bilt 1754137001

SUPPORT-ENGINE

$

$

Currently unavailable

?66

Troy-Bilt 1100004

SCR-HH 5/16-24X.75 G5 ZP
(Superseded to 710-0157)

$4.49

$

In Stock, Qty 8

0

67

MTD 1100005

SCR-HH 5/16-24X1.00 G5ZP

$

$

Not available

68

MTD 1186345

SCR

$

$

Not available

69

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

?70

MTD 1186327

SCR-HFLK 5/16-18X.50 ZP

$

$

Not available

71

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

73

Troy-Bilt 1100255

WASHER-FLAT 5/16 SAE
(Superseded to 736-0262)

$3.99

$

Usually ships in 3-6 days

0

74

MTD 1751526

GRIP-HANDLE

$

$

Not available

75

MTD 1763152

DECAL-CHUTE CONTROL

$

$

Not available

101

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0

102

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0

103

Troy-Bilt 1757032

LOCTITE-242 (.5 ML TUBE)
(Superseded to GW-97092)

$17.99

$

Usually ships in 3-6 days

0

104

MTD 1718266

KEY-IGNITION

$

$

Not available

105

MTD 1728840

ELEC START-5HP SNW

$

$

Not available

106

Troy-Bilt 1771729

KIT-SVC 4HP SNOWTHROWER

$

$

Currently unavailable
