42012 - Troy-Bilt 26" Snow Thrower (SN: 420120100101 - 420121199999) TRIM, CONTROL & FRAME ASSEMBLY Parts Diagram

26" Snow Thrower

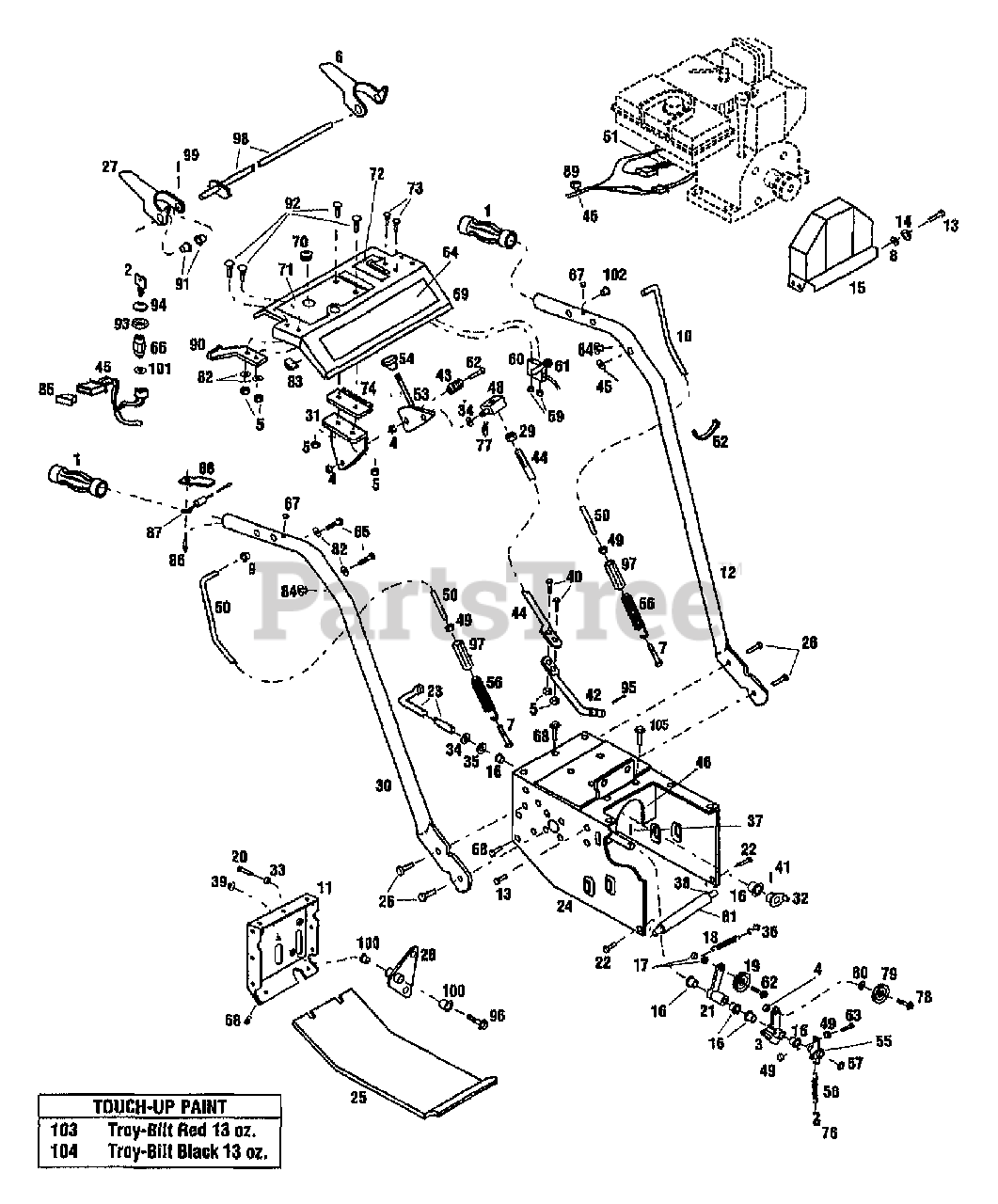

TRIM, CONTROL & FRAME ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1745576

GRIP-HANDLE
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

2

MTD 1753986

KEY-IGNITION

$

$

Not available

3

MTD 1739937

ARM-IDLER

$

$

Not available

4

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

5

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

6

MTD 1764738

HANDLE-CONTROL LH

$

$

Not available

7

Troy-Bilt 1765534

SCR-PH 5/16-18X1.0

$

$

Not available

8

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

8

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 1728072

NUT-PUSH
(Superseded to 926-0106)

$

$

Not available

10

MTD 1764741

ROD-CLUTCH WHEEL DRIVE

$

$

Not available

11

MTD 1760258010

PLATE-BACK

$

$

Not available

12

MTD 1757831010

HANDLEBAR-LH

$

$

Not available

13

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 1100255

WASHER-FLAT 5/16 SAE
(Superseded to 736-0262)

$3.99

$

In Stock, Qty 20+

0

15

MTD 1740030

COVER-BELT

$

$

Not available

16

Troy-Bilt 1715716

BUSHING-.5X.21 NYLON FLNG

$3.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 1185506

NUT-HEX/JAM 3/8-16 ZP
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

18

MTD 1740011

SPRING-EXTENSION

$

$

Not available

19

MTD 1729440

PULLEY-IDLER

$

$

Not available

20

MTD 1186334

SCR-HFLK 5/16-18X1.75 ZP G5

$

$

Not available

21

MTD 1739935

ARM-IDLER

$

$

Not available

22

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

23

Troy-Bilt 1757841

ARM-CONTROL

$

$

Currently unavailable

24

MTD 1745857010

ASSM-FRAME

$

$

Not available

25

MTD 1739838010

COVER-BOTTOM

$

$

Not available

26

MTD 1186345

SCR

$

$

Not available

27

MTD 1764739

HANDLE-CONTROL RH

$

$

Not available

28

MTD 1760218

ARM-CONTROL SPEED

$

$

Not available

29

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

30

MTD 1757832010

HANDLEBAR-RH

$

$

Not available

31

MTD 1760196

BRKT-CONTROL

$

$

Not available

32

MTD 1739932

ARM-CONTROL

$

$

Not available

33

Troy-Bilt 1186258

NUT-HEX JAM 5/16-18
(Superseded to 712-3007)

$6.99

$

In Stock, only 2 left!

0

34

Troy-Bilt 1890234

WASHER-FLAT .88X.5X.06 ZP
(Superseded to GW-20546)

$

$

Not available

35

Troy-Bilt 1706782

WASHER-BOW .74X.52X.01

$2.49

$

In Stock, only 1 left!

0

36

MTD 1740989

HOOK-J

$

$

Not available

37

MTD 1100356

PIN-COTTER .093X1.00 ZP

$

$

Not available

38

MTD 1739756

BRACE-CROSS

$

$

Not available

39

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

40

Troy-Bilt 1100805

SCR-HH 1/4-20X.75 G5 ZP
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

41

MTD 1743493

PIN-ROLL .125X.75 ZP

$

$

Not available

42

MTD 1760253

ROD-CONTROL LOWER

$

$

Not available

43

MTD 1713167

SPRING-COMPRESSION

$

$

Not available

44

MTD 1760254

ROD-CONTROL UPPER

$

$

Not available

45

Troy-Bilt 1748837

HARNESS

$

$

Currently unavailable

45

Troy-Bilt 1772000

HARNESS

$

$

Currently unavailable

45

MTD 1773906

HARNESS-WIRING

$

$

Not available

46

MTD 1754272

ASSM-SUPPORT ZP

$

$

Not available

48

MTD 1727053

BLOCK-SWIVEL

$

$

Not available

49

Troy-Bilt 1186229

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 17

0

50

MTD 1764743

ROD-CONTROL AUGER

$

$

Not available

51

MTD 1721038

CONNECTOR

$

$

Not available

52

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

53

MTD 1760255

ARM-CONTROL SHIFT

$

$

Not available

54

MTD 1757842

KNOB

$

$

Not available

55

MTD 1739941

ASSM-BRAKE ARM

$

$

Not available

56

MTD 1765535

SPRING-EXTENSION

$

$

Not available

57

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, only 2 left!

0

58

MTD 1740990

SPRING-EXTENSION

$

$

Not available

59

Troy-Bilt 1185985

NUT W/LKWASHER 10-24 ZP
(Superseded to 712-0272)

$3.99

$

Usually ships in 3-6 days

0

60

MTD 1741648

CONTROL-THROTTLE

$

$

Not available

61

Troy-Bilt 1737118

KNOB
(Superseded to 731-0108)

$9.49

$

In Stock, only 2 left!

0

62

Troy-Bilt 1100086

SCR-HH 3/8-16X1.75 G5 ZP
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

63

Troy-Bilt 1100069

SCR-HH 1/4-20X1.0
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 13

0

64

Troy-Bilt 1767331

DECAL-LOGO 42010

$

$

Currently unavailable

64

MTD 1767332

DECAL-LOGO 42012

$

$

Not available

65

Troy-Bilt 1754128

SCR-FLANGE 1/4-20X3/4 GR5

$3.99

$

In Stock, only 2 left!

0

66

Troy-Bilt 1758145

SWITCH-IGNITION
(Superseded to 925-2018)

$

$

Not available

67

MTD 1750796

BUMPER-RUBBER

$

$

Not available

68

Troy-Bilt 1766984

SCR-HFLK 5/16-18X.75

$3.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt 1724491

SCR-HFLK 5/16-18X.75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

69

MTD 1767675

CONSOLE-H/BAR W/DECALS

$

$

Not available

69

Troy-Bilt 1771962

ASSM-CONSOLE

$

$

Currently unavailable

70

MTD 1185585

GROMMET-FLIP

$

$

Not available

71

Troy-Bilt 1767333

DECAL-OPERATING INST

$

$

Currently unavailable

72

Troy-Bilt 1767334

DECAL-THROTTLE

$

$

Currently unavailable

72

MTD 1771739

DECAL-WHEEL DRIVE

$

$

Not available

73

Troy-Bilt 1115815

SCR-TRUSS #10-24 X 5/8
(Superseded to 710-0425)

$4.99

$

Usually ships in 3-6 days

0

74

Troy-Bilt 1764711

QUADRANT-SHIFT

$

$

Currently unavailable

76

Troy-Bilt 1742250

HOOK-S

$

$

Currently unavailable

77

Troy-Bilt 1703011

CLIP-HAIRPIN .07 DIA
(Superseded to 914-0145)

$4.99

$

In Stock, Qty 20+

0

78

Troy-Bilt 1100047

SCR-HH 3/8-16X1.5 G5 ZP
(Superseded to 710-0520)

$4.49

$

In Stock, Qty 5

0

78

Troy-Bilt 1100048

SCR-HH 3/8-16X2.0 G5 ZP
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

79

MTD 1729440

PULLEY-IDLER

$

$

Not available

79

MTD 1735914

IDLER-FLAT

$

$

Not available

79

Troy-Bilt 1745499

IDLER-FLAT
(Superseded to 756-0225)

$

$

Not available

80

MTD 1708755

WASHER-.875X.390X.134

$

$

Not available

81

MTD 1746607

TUBE-PLASTIC

$

$

Not available

82

Troy-Bilt 1107381

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

83

MTD 1724879

CLIP-CORD

$

$

Not available

84

MTD 1748835

BUSHING

$

$

Not available

84

Troy-Bilt 1773905

BUSHING

$3.49

$

Usually ships in 3-6 days

0

85

Troy-Bilt 1748836

CONNECTOR

$

$

Currently unavailable

86

Troy-Bilt 1186424

RIVET-POP .125

$

$

Currently unavailable

87

MTD 1746515

ASSM-RESISTOR

$

$

Not available

87

MTD 1773904

ASSM-RESISTOR

$

$

Not available

88

MTD 1746516

CLAMP

$

$

Not available

89

0

FUSE, 7.5 AMP

$

$

Not available

90

MTD 1764733

SPRING-FLAT

$

$

Not available

91

MTD 1755779

BEARING-FLANGE

$

$

Not available

92

Troy-Bilt 1115931

SCR-RH 1/4-20X.675
(Superseded to 710-0946)

$3.99

$

Usually ships in 3-6 days

0

93

Troy-Bilt 1758146

NUT-SWITCH
(Superseded to 925-1346)

$

$

Not available

94

Troy-Bilt 1758147

CAP-SWITCH
(Superseded to 725-1347)

$4.99

$

In Stock, only 1 left!

0

95

Troy-Bilt 1100346

PIN-COTTER .09X.75 ZP
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

96

Troy-Bilt 1763219

SCR-SHLDR 3/8-16

$10.99

$

In Stock, only 2 left!

0

97

MTD 1764740

NUT-ADJ

$

$

Not available

98

MTD 1764737

ROD-CONTROL HANDLE

$

$

Not available

99

Troy-Bilt 1737015

PIN-ROLL .125 X .62
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

100

Troy-Bilt 1715538

BUSHING-.5X.5 NYLON FLNG

$

$

Not available

101

Troy-Bilt 1187950

WASHER-LK .625 INT TOOTH
(Superseded to 736-0225)

$4.49

$

In Stock, only 2 left!

0

102

MTD 1714243

BUSHING-NYLON

$

$

Not available

103

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0

104

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0

105

MTD 1186327

SCR-HFLK 5/16-18X.50 ZP

$

$

Not available
