42012 - Troy-Bilt 26" Snow Thrower (SN: 420120100101 - 420121199999) ENGINE & DRIVE ASSEMBLY (TRACTOR) Parts Diagram

26" Snow Thrower

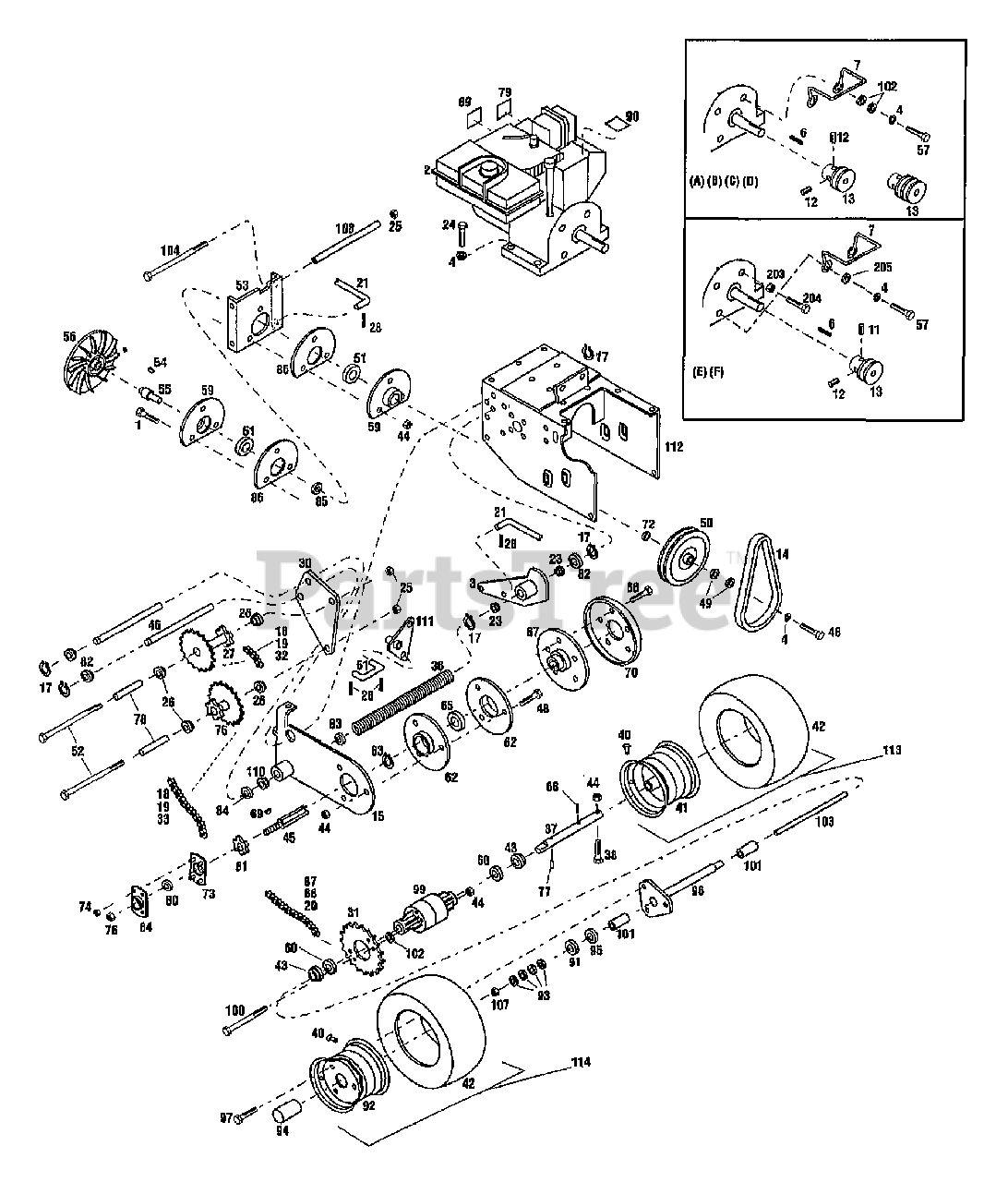

ENGINE & DRIVE ASSEMBLY (TRACTOR) Parts Diagram

  • Title

1

Troy-Bilt 1100045

SCR-HH 5/16-18X1.0 G5 ZP
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 5

0

2

0

ENGINE, TECUMSEH 8HP, MODEL HMSK 80

$

$

Not available

2

0

ENGINE, TECUMSEH 10HP, MODEL HMSK 100

$

$

Not available

3

MTD 1745485

ASSM-CONTROL ARM

$

$

Not available

4

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

6

MTD 1187474

KEY-.25 SQ X 1.25

$

$

Not available

7

MTD 1749177

GUIDE-BELT

$

$

Not available

11

MTD 1774323

SCR-SQ HD SET

$

$

Not available

12

Troy-Bilt 1733185

SCR-SET SQ 5/16-18X5/8

$

$

Not available

13

Troy-Bilt 1754323

SHEAVE-ENGINE

$

$

Currently unavailable

13

Troy-Bilt 1751435

PULLEY-ENGINE

$

$

Currently unavailable

14

Troy-Bilt 1751601

BELT-V 32"

$20.99

$

In Stock, Qty 8

0

14

Troy-Bilt 1751601

BELT-V 32"

$20.99

$

In Stock, Qty 8

0

15

MTD 1760260

SUPT-DRIVE W/BEARING

$

$

Not available

17

Troy-Bilt 1118808

RING-RETAIN .625 ID

$

$

Not available

18

MTD 0182087

LINK-OFFSET (HALF LINK)

$

$

Not available

19

Troy-Bilt 1185013

LINK-CONNECTOR #41 CHAIN
(Superseded to 913-0723)

$

$

Not available

20

MTD 1739454

CHAIN-DRIVE

$

$

Not available

21

MTD 1745437

LINK-CONTROL

$

$

Not available

23

MTD 1714299

BUSHING-FLANGE

$

$

Not available

24

Troy-Bilt 1100799

SCR-HH 5/16-18X1.5 G5 ZP
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

26

MTD 1739458

BEARING-FLANGE

$

$

Not available

27

Troy-Bilt 1745498

ASSM-SPROCKET 9T/17T

$

$

Currently unavailable

28

Troy-Bilt 1100346

PIN-COTTER .09X.75 ZP
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

30

MTD 1739497

PLATE-SUPPORT

$

$

Not available

31

MTD 1758304

SPROCKET-30T

$

$

Not available

32

MTD 1745880

CHAIN-DRIVE

$

$

Not available

33

MTD 1745879

CHAIN-DRIVE

$

$

Not available

36

MTD 1741647

SPRING-COMPRESSION

$

$

Not available

37

MTD 1758302

SHAFT-AXLE

$

$

Not available

38

Troy-Bilt 1755894

SCR-HH 5/16-18X1.75 G5ZP
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 11

0

40

Troy-Bilt 1718086

STEM-VALVE
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

41

MTD 1757889

DISC-WHEEL

$

$

Not available

42

MTD 1755826

TIRE-4.80 X 8

$

$

Not available

43

Troy-Bilt 1739471

BUSHING-.875 FLNG

$24.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

45

MTD 1739457

SHAFT-HEX

$

$

Not available

46

MTD 1745860

SUPPORT-SHAFT

$

$

Not available

48

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

49

Troy-Bilt 1713233

WASHER-1.25X.343X.059
(Superseded to 736-0362)

$4.49

$

In Stock, Qty 7

0

50

Troy-Bilt 1745488

SHEAVE-DRIVE WHEEL

$

$

Currently unavailable

51

Troy-Bilt 1743433

BEARING-BALL
(Superseded to 941-3006)

$99.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 1110644

SCR-HHC 3/8-16X3.25
(Superseded to 1911403)

$

$

Not available

53

MTD 1754302

ASSM-DRIVE DISC WELD

$

$

Not available

54

MTD 1185885

KEY-WOODRUFF

$

$

Not available

55

MTD 1745535

SPINDLE

$

$

Not available

56

MTD 1720918

PLATE-DRIVE

$

$

Not available

57

MTD 1100005

SCR-HH 5/16-24X1.00 G5ZP

$

$

Not available

59

MTD 1739488

RETAIN-BEARING

$

$

Not available

60

MTD 1740002

WASHER-.875

$

$

Not available

61

MTD 1760252

LINK-CONTROL SC

$

$

Not available

62

MTD 1739485

RETAINER-BEARING

$

$

Not available

63

MTD 1736561

RING-SNAP

$

$

Not available

64

MTD 1720811

BEARING-FLANGE

$

$

Not available

65

MTD 1741733

BEARING-THRUST

$

$

Not available

66

MTD 1186327

SCR-HFLK 5/16-18X.50 ZP

$

$

Not available

67

MTD 1739490

HUB-FRICTION DISC

$

$

Not available

68

MTD 1185376

PIN-DRIVE

$

$

Not available

69

MTD 1104435

KEY-WOODRUFF 1/8 X 5/8

$

$

Not available

70

Troy-Bilt 1720859

DISC-FRICTION

$76.99

$

In Stock, only 1 left!

0

72

Troy-Bilt 1709224

WASHER-1.12X.759X.0329

$

$

Currently unavailable

73

Troy-Bilt 1720810

ASSM-BEARING FLANGE

$156.99

$

In Stock, only 1 left!

0

74

Troy-Bilt 1737938

NUT-H/LK M10-24 NYLOCK
(Superseded to 1983039)

$

$

Not available

75

MTD 1745497

ASSM-SPROCKET 9T/30T

$

$

Not available

76

MTD 1185496

NUT

$

$

Not available

77

MTD 1758305

PIN-DRIVE .187X.9

$

$

Not available

78

Troy-Bilt 1739476

SPACER-.62X.39X2.625

$31.99

$

In Stock, only 2 left!

0

79

MTD 1754329

DECAL-CHOKE

$

$

Not available

80

MTD 1185808

BEARING-BALL

$

$

Not available

81

MTD 1745495

SPROCKET-9T

$

$

Not available

82

MTD 1714233

BUSHING-.68X.62X.15 FLNG

$

$

Not available

83

Troy-Bilt 1705093

WASHER-1.0X.64X.029
(Superseded to 736-0302)

$

$

Not available

84

Troy-Bilt 1107386

WASHER-1.305X.649X.098 ZP
(Superseded to 736-0237)

$4.49

$

In Stock, Qty 20+

0

85

MTD 1745489

SPACER-1.0X.766X.413

$

$

Not available

86

MTD 1745490

RETAINER-BEARING

$

$

Not available

87

MTD 1185026

LINK-CONNECTOR

$

$

Not available

88

Troy-Bilt 1120213

LINK-OFFSET

$

$

Currently unavailable

89

Troy-Bilt 1754330

DECAL-PRIMER @ DEPL

$

$

Currently unavailable

90

MTD 1754328

DECAL-WARN.HOT SURFACES

$

$

Not available

91

Troy-Bilt 1756230

WASHER-D HOLE

$

$

Currently unavailable

92

MTD 1757881

DISC-WHEEL

$

$

Not available

93

MTD 1746743

DISC-SPRING

$

$

Not available

94

MTD 1756231

CAP-DUST

$

$

Not available

95

MTD 1746739

DISC-FRICTION

$

$

Not available

96

Troy-Bilt 1758300

TUBE-AXLE W/FLANGE

$

$

Currently unavailable

97

Troy-Bilt 1716223

BOLT-LUG SC

$

$

Not available

99

MTD 1758929

ASSM-DIFFERENTIAL

$

$

Not available

99

MTD 1758898

ASSM-DIFFERENTIAL

$

$

Not available

100

Troy-Bilt 1185886

BOLT-HH 5/16-18X4 1/2

$

$

Currently unavailable

101

MTD 1745883

BUSHING-NYLON

$

$

Not available

102

MTD 1758303

SPACER-.625X.343X.5

$

$

Not available

103

Troy-Bilt 1746744

SHAFT-AXLE

$

$

Currently unavailable

104

MTD 1754303

SCR-HH 3/8-16X8.5 G5ZP

$

$

Not available

107

Troy-Bilt 1186233

NUT-HEX JAM 1/2-13
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

108

MTD 1754301

SPACER-.5X.384X7.375

$

$

Not available

110

MTD 1739460

BEARING-FLANGE

$

$

Not available

111

MTD 1760218

ARM-CONTROL SPEED

$

$

Not available

112

MTD 1745857010

ASSM-FRAME

$

$

Not available

113

MTD 1757886

ASSM-WHEEL&TIRE LH

$

$

Not available

114

MTD 1757880

ASSM-WHEEL&TIRE RH

$

$

Not available

203

Troy-Bilt 1186211

NUT-HEX 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

204

MTD 1111706

SCR-HHC 5/16-24X4.0 GR5

$

$

Not available

205

Troy-Bilt 1100255

WASHER-FLAT 5/16 SAE
(Superseded to 736-0262)

$3.99

$

In Stock, Qty 10

0
