42000 - Troy-Bilt 21" Snow Thrower (SN: 420000100101 - 420001199999) BLOWER HOUSING ASSEMBLY Parts Diagram

21" Snow Thrower

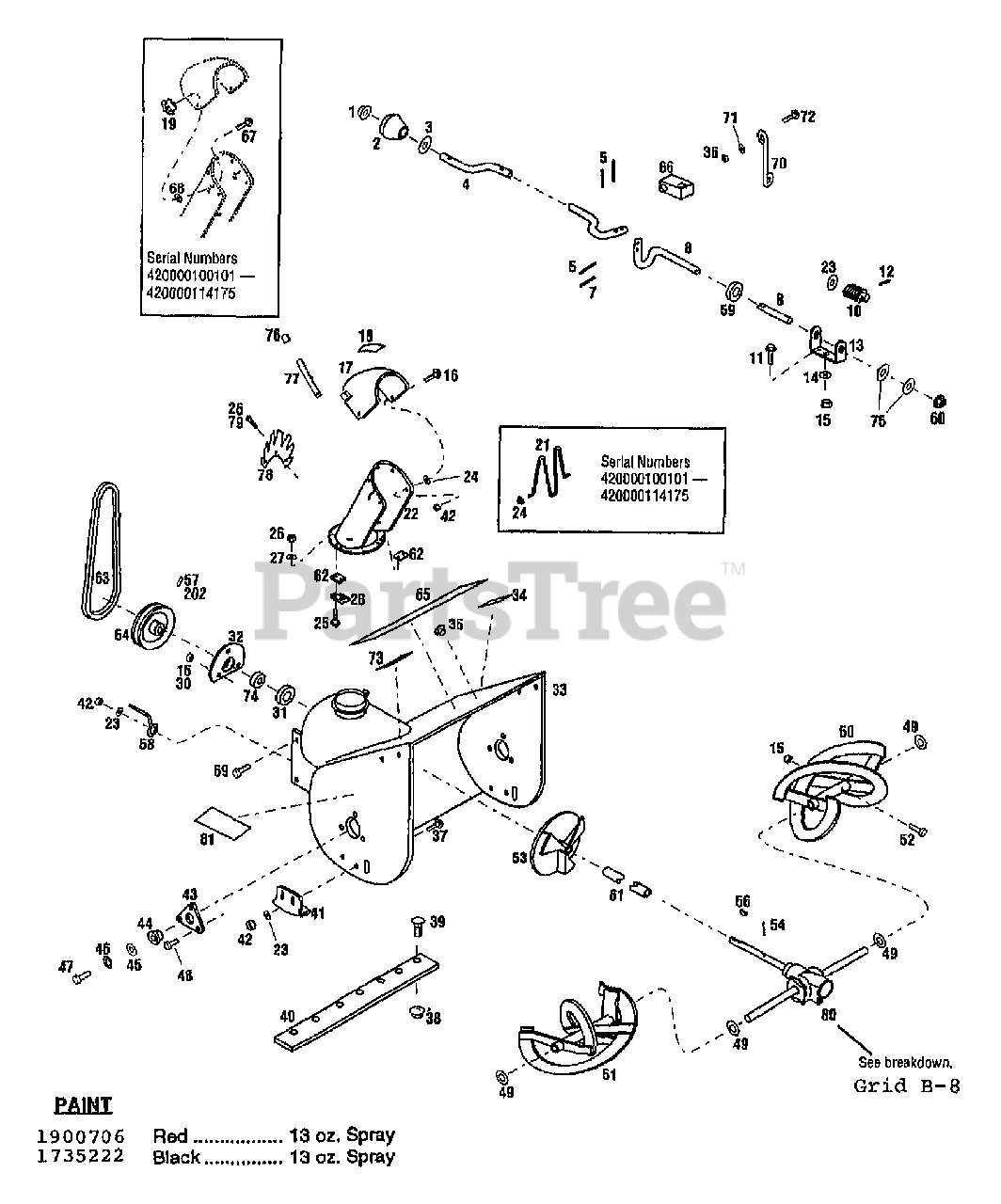

BLOWER HOUSING ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1724791

NUT-PUSH 3/8 ZP
(Superseded to 926-0100)

$

$

Not available

2

Troy-Bilt 1735868

KNOB
(Superseded to 920-0171)

$15.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 1890945

WASHER-FLAT .375DIA
(Superseded to 936-0140)

$

$

Not available

4

MTD 1752306

CRANK-CHUTE CONTROL

$

$

Not available

5

Troy-Bilt 1185147

PIN-COTTER .093X.625
(Superseded to 914-0111)

$4.99

$

In Stock, Qty 13

0

7

MTD 1177625

PIN-ROLL 1/8 X 3/4

$

$

Not available

8

MTD 1752246

SHAFT-CHUTE CNTRL USE1771769 @

$

$

Not available

8

MTD 1771769

SHAFT-CHUTE CONTROL

$

$

Not available

10

MTD 1724870

GEAR-WORM LH

$

$

Not available

11

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 1724885

PIN-DRIVE .09X.75

$

$

Not available

13

MTD 1735869

SUPPORT-GEAR

$

$

Not available

14

Troy-Bilt 1100255

WASHER-FLAT 5/16 SAE
(Superseded to 736-0262)

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 1100068

SCR-HH 3/8-16X.75 G5 ZP
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 12

0

17

MTD 1763785

ASSM-DISCHARGE CAP

$

$

Not available

17

Troy-Bilt 1772015

ASSM-CAP

$

$

Currently unavailable

18

MTD 1750692

DECAL-WARNING

$

$

Not available

19

MTD 1763767

KNOB

$

$

Not available

21

MTD 1722501

GUARD-CHUTE

$

$

Not available

22

MTD 1754447010

ASSM-CHUTE

$

$

Not available

22

MTD 1771723010

ASSM-CHUTE

$

$

Not available

23

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

24

MTD 1186048

NUT-PUSH 3/16

$

$

Not available

25

Troy-Bilt 1752461

SCR-HW M10-24X.88 EXTTOOTH

$4.99

$

In Stock, Qty 10

0

26

Troy-Bilt 1737938

NUT-H/LK M10-24 NYLOCK
(Superseded to 1983039)

$

$

Not available

27

Troy-Bilt 1103959

WASHER-.505X.22X.05

$4.99

$

In Stock, Qty 14

0

28

Troy-Bilt 1724869

CLIP-HOLD DOWN
(Superseded to 1724869099)

$11.99

$

In Stock, Qty 20+

0

30

MTD 1103195

SCR-HH 5/16-18X.63 G5

$

$

Not available

31

Troy-Bilt 1185809

BEARING-BALL
(Superseded to 941-3006)

$99.99

$

Usually ships in 3-6 days

0

32

MTD 1739488

RETAIN-BEARING

$

$

Not available

33

MTD 1751304

ASSM-HOUSING

$

$

Not available

34

MTD 1750691

DECAL-WARNING

$

$

Not available

35

MTD 1750969

PLUG

$

$

Not available

36

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

37

Troy-Bilt 1186126

BOLT-3/8-16 X 3/4
(Superseded to 710-0389)

$4.49

$

Usually ships in 3-6 days

0

38

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 1712059

SCR-CARR 5/16-18X.50 G5 ZP
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 1749281010

BLADE-SCRAPER

$48.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 1728567010

RUNNER-SKIP
(Superseded to 1728567001)

$

$

Not available

42

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

43

MTD 1720922

SUPPORT-BEARING

$

$

Not available

44

MTD 1185846

BUSHING-FLANGE

$

$

Not available

45

Troy-Bilt 1100257

WASHER-1/2 FLAT

$

$

Not available

46

Troy-Bilt 1100245

WASHER-LK .5
(Superseded to 936-0921)

$4.49

$

In Stock, only 2 left!

0

47

MTD 1100053

SCR-HH 1/2-13X.75 G5 ZP

$

$

Not available

48

Troy-Bilt 1111599

SCR-HH 1/4-20X.625 G5 ZP
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 1185816

WASHER-SPEC

$3.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 1740491001

ASSM-AUGER BLADE LH

$

$

Currently unavailable

51

MTD 1740490001

ASSM-AUGER BLADE RH

$

$

Not available

52

Troy-Bilt 1750515

SCR-SHEAR 5/16-18X1.75

$8.49

$

In Stock, only 4 left!

0

53

MTD 1740462001

ASSM-IMPELLER

$

$

Not available

54

Troy-Bilt 1185348

PIN-ROLL 1/4 X 1-1/4
(Superseded to 915-0143)

$

$

Not available

56

MTD 1200033

KEY-HI PRO .187X.75

$

$

Not available

57

Troy-Bilt 1733185

SCR-SET SQ 5/16-18X5/8

$

$

Not available

58

MTD 1750703

GUIDE-BELT

$

$

Not available

59

MTD 1714243

BUSHING-NYLON

$

$

Not available

60

MTD 1185984

NUT-HF/LK 3/8-16

$

$

Not available

61

MTD 1753356

SLEEVE

$

$

Not available

62

Troy-Bilt 1752460

SHIM

$4.99

$

In Stock, Qty 20+

0

63

Troy-Bilt 1752194

BELT-V 36.00

$32.99

$

In Stock, only 3 left!

0

64

MTD 1752212

SHEAVE-AUGER DRIVE

$

$

Not available

65

Troy-Bilt 1757859

DECAL-LOGO

$

$

Currently unavailable

66

Troy-Bilt 1714782

BLOCK-SWIVEL NYLON

$25.99

$

In Stock, Qty 6

0

67

Troy-Bilt 1186100

SCR-CARR 5/16-18X1.0 G2 ZP

$

$

Not available

68

Troy-Bilt 1100256

WASHER-.986X.437X.083 ZP
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

69

Troy-Bilt 1724491

SCR-HFLK 5/16-18X.75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

70

MTD 1752318

SUPPORT-CHUTE CRANK

$

$

Not available

71

Troy-Bilt 1107381

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

72

Troy-Bilt 1100811

SCR-HH 1/4-20X1.5 G5ZP
(Superseded to 710-0606)

$5.49

$

In Stock, Qty 10

0

73

MTD 1901900

DECAL-AMERICAN LEGEND-LRG

$

$

Not available

74

MTD 1719271

SHIM-1.75X1.26X.02

$

$

Not available

75

MTD 1737957

BUSHING-NYLON

$

$

Not available

76

Troy-Bilt 1737499

GRIP-VACUCUT

$

$

Not available

77

MTD 1723643

LEVER-ADJUSTING

$

$

Not available

78

MTD 1771274

DEFLECTOR-CHUTE

$

$

Not available

79

MTD 1737940

SCR-TR HD 10-24X.375

$

$

Not available

80

MTD 1740471001

ASSM-GEAR CASE

$

$

Not available

81

MTD 1757861

DECAL-HOUSING SIDE

$

$

Not available

202

Troy-Bilt 1757032

LOCTITE-242 (.5 ML TUBE)
(Superseded to GW-97092)

$17.99

$

Usually ships in 3-6 days

0

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0
