4200 - Poulan Chainsaw CLUTCH, CRANKCASE, & HANDLE BAR Parts Diagram

Chainsaw

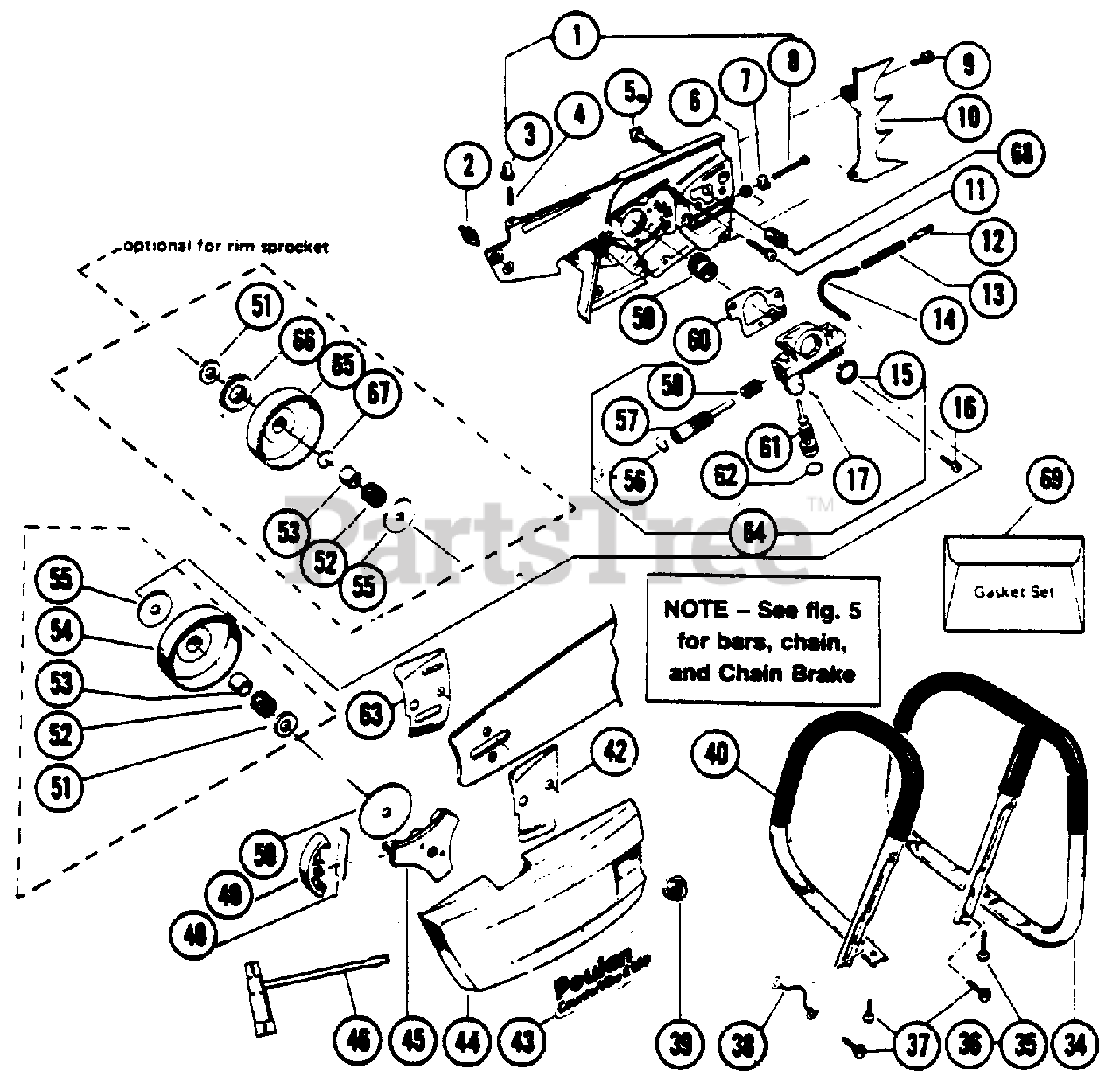

CLUTCH, CRANKCASE, & HANDLE BAR Parts Diagram

  • Title

1

Poulan 530010208

Crankcase Ass'y. - Both Halves (includes 3, 4, 5, 6, 7, 8 & 68)

$

$

Not available

2

Poulan 530023663

Bumper - Bar Clamp

$

$

Not available

3

Poulan 530023735

Bushing - Cylinder Cover Mounting

$

$

Not available

4

Poulan 530015292

Stud - Cylinder Cover Locating

$

$

Not available

5

Stud-Bar Mounting.

Note: If crankcase halves are separated-use 1684,if not-use 30039 kit.

$

$

Not available

6

Poulan 530015064

Nut - 10-24 Self Locking

$

$

Not available

7

Poulan 530023064

Pin - Bar Adjusting

$8.99

$

Usually ships in 3-10 days

0

8

Poulan 530015253

Screw - 10-24 x 2-3/16 Fillister Head

$6.49

$

Usually ships in 3-10 days

0

9

Poulan 530001636

Screw - 1/4-20 x 5/8 Socket Head

$2.49

$

Usually ships in 3-10 days

0

10

Poulan 530022112

Spur

$

$

Not available

11

Poulan 530015203

Screw - 10-24 x 3/4 Socket Head

$2.49

$

Usually ships in 3-10 days

0

12

Poulan 530002589

Weight & Filter - Oil Pick-up

$10.99

$

Usually ships in 3-10 days

0

13

Poulan 530023456

Spring - Oil Line Protector

$

$

Not available

14

Poulan 530021021

Line - Oil Pick-up (31/4" Long; Cut from No. 8132 Tubing)

$

$

Not available

15

Poulan 530019076

Seal - Oil Pump Included in Gasket Kit 69025

$

$

Not available

16

Poulan 530015168

Screw - 10-24 x 5/8

$

$

Not available

17

Poulan 530015211

Pin - Adjusting Screw Stop

$

$

Not available

34

Poulan 530022144

Handlebar Ass'y. - Wrap-around

$

$

Not available

Poulan 530022142

Handlebar Ass'y. - Wrap-around (opt.)

$

$

Not available

35

Poulan 530015255

Screw 1/4-20 x 2A x 1 1/8 (Wrap-around Handlebar)

$

$

Not available

36

Poulan 530001682

Screw 1/4-20 x 3/4 (for 22142 Handlebar)

$

$

Not available

37

Poulan 530015176

Screw 1/4-20 x 5/8 (Flush-cut Handlebar)

$

$

Not available

Screw 1/4-20 x 5/8 (Wrap-around Handlebar)

$

$

Not available

38

Poulan 530023682

Wire - Ground

$

$

Not available

39

Poulan 530015205

Nut - Bar Mounting (includes washer)

$

$

Not available

40

Poulan 530022141

Handlebar - Flush-cut (4200)

$

$

Not available

Poulan 530022239

Handlebar - Flush-cut (5200)

$

$

Not available

42

Poulan 530025924

Plate - Bar (outer)

$

$

Not available

43

Poulan 530023721

Decal - Bar Clamp (4200)

$

$

Not available

Poulan 530023723

Decal - Bar Clamp (5200)

$

$

Not available

44

Poulan 530011272

Bar Clamp

$

$

Not available

45

Poulan 530022117

Drive Plate - Clutch

$

$

Not available

46

Poulan 530031062

Scrench

$

$

Not available

48

Poulan 530023675

Spring - Clutch Shoe (Purple)

$

$

Not available

49

Poulan 530023469

Shoe - Clutch

$

$

Not available

50

Poulan 530023472

Washer - Clutch shoe

$

$

Not available

51

Poulan 530015047

Washer - Thrust (Black)

$

$

Not available

52

Poulan 530032002

Bearing - Drum & Sprocket

$

$

Not available

53

Poulan 530032003

inner Race - Clutch Drum

$

$

Not available

54

Poulan 530010007

Drum & Sprocket - 7 tooth, 3/8" pitch

$

$

Not available

55

Poulan 530015554

Moss Thrust Washer - Sprocket Shroud

$

$

Not available

56

Poulan 530023669

Plug - Oil Pump Body

$

$

Not available

57

Poulan 530023672

Plunger - Oil Pump

$

$

Not available

58

Poulan 530023695

Spring - Oil Pump Plunger

$

$

Not available

59

Poulan 530023673

Worm Gear

$

$

Not available

60

Poulan 530019084

Gasket - Oil Pump Included in Gasket Kit 69025

$

$

Not available

61

Poulan 530023659

Screw - Oil Pump Adjusting

$

$

Not available

62

Poulan 530019079

O-Ring - Adjusting Screw Included in Gasket Kit 69025

$3.99

$

Usually ships in 3-10 days

0

63

Poulan 530025925

Plate - Bar (inner)

$9.99

$

In Stock, Qty 7

0

64

Poulan 530010173

Oil Pump Ass'y. (includes 15, 17, 56, 57, 58, 61 & 62)

$

$

Not available

65

Poulan 530048001

Clutch Drum - Splined (optional for rim sprocket)

$24.99

$

Usually ships in 3-10 days

0

66

Poulan 952004746

Rim Sprocket - 3/8 pitch, 7 tooth (optional)

$4.99

$

Usually ships in 3-10 days

0

Poulan 952004747

Rim Sprocket - 404 pitch, 7 tooth (optional)

$

$

Not available

67

Poulan 530022029

Spacer - Inner Race (optional for rim sprocket)

$3.99

$

Usually ships in 3-10 days

0

68

Poulan 530002621

Vent Plug - Oil Tank

$

$

Not available

69

Poulan 530069025

Gasket Kit

$

$

Not available
