4200 - Poulan Chainsaw CHAIN BRAKE ASSEMBLIES Parts Diagram

Chainsaw

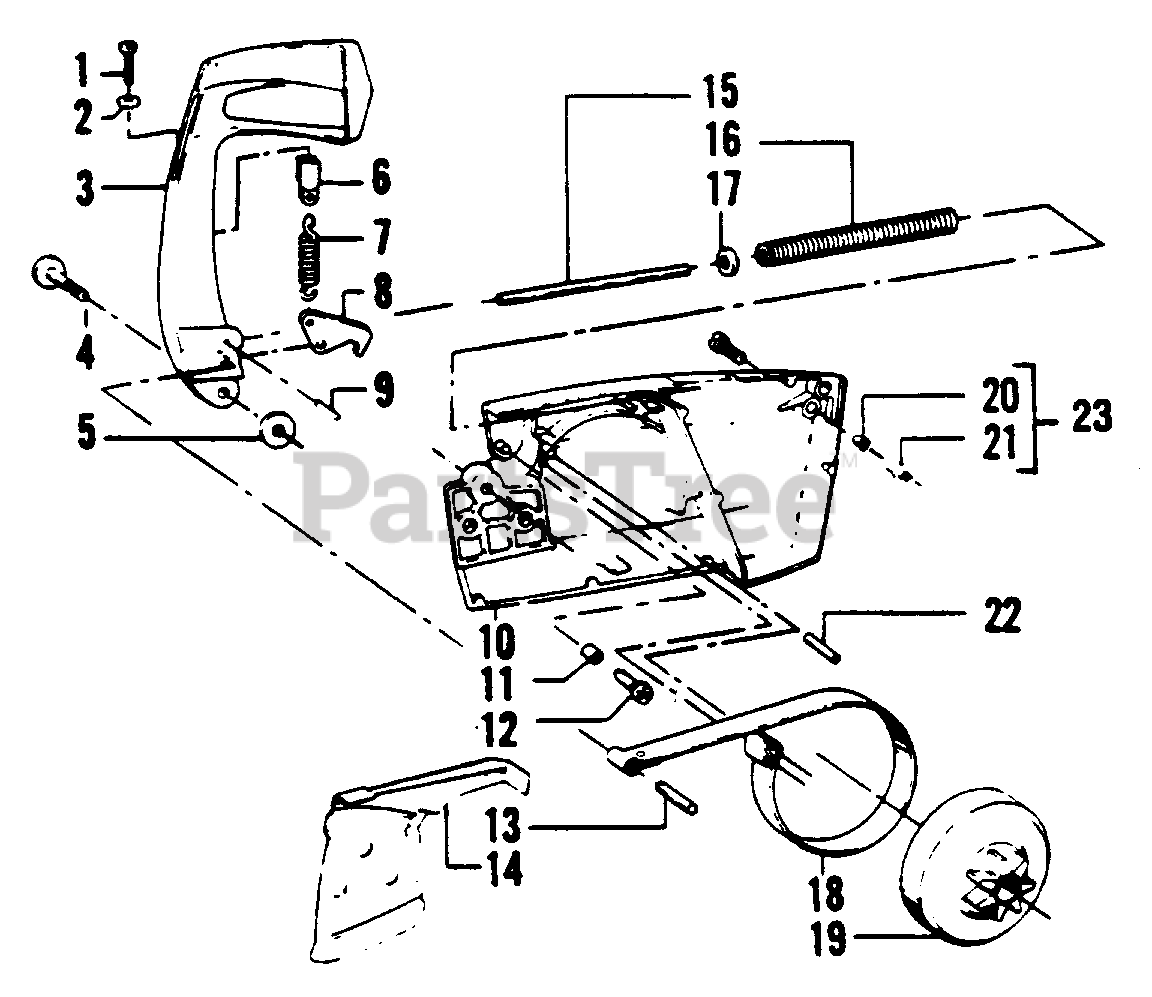

CHAIN BRAKE ASSEMBLIES Parts Diagram

  • Title

1

Poulan 530015276

Screw - Slotted Fil. - 10 - 24 x 7/8

$1.49

$

Usually ships in 3-10 days

0

2

Poulan 530015274

Washer - Plain Type "B"

$0.99

$

Usually ships in 3-10 days

0

3

Poulan 530011306

Actuating Lever

$

$

Not available

4

Poulan 530023902

Screw Arm Pivot

$12.99

$

Usually ships in 3-10 days

0

5

Poulan 530015271

Washer - Pivot Screw

$1.49

$

Usually ships in 3-10 days

0

6

Poulan 530023945

Anchor - Extension Spring

$4.99

$

Usually ships in 3-10 days

0

7

Poulan 530023899

Spring - Extension

$4.99

$

Usually ships in 3-10 days

0

8

Poulan 530023975

Hook - Detent

$2.49

$

Usually ships in 3-10 days

0

9

Poulan 530015265

Pin - Support Rod

$

$

Not available

10

Poulan 530011304

Bar Clamp

$

$

Not available

11

Poulan 530023974

Roller Latch

$

$

Not available

12

Poulan 530015278

Boss - Latch Roller

$

$

Not available

13

Poulan 530015264

Pin - Hook Pivot & Brake Band

$

$

Not available

14

Poulan 530023916

Guide Bar Plate - Oiler

$6.49

$

Usually ships in 3-10 days

0

15

Poulan 530023897

Rod - Spring Support

$

$

Not available

16

Poulan 530023898

Spring - Compression

$

$

Not available

17

Poulan 530023896

Washer - Swivel

$

$

Not available

18

Poulan 530023915

Band - Brake

$

$

Not available

19

Poulan 530048042

Drum & Sprocket Ass'y

$

$

Not available

20

Poulan 530023735

Guide Bushing

$

$

Not available

21

Poulan 530015284

Stud Guide Bar Clamp

$

$

Not available

22

Poulan 530015282

Dowel Pin

$6.49

$

Usually ships in 3-10 days

0

Poulan 530069009

Chain Brake Ass'y-Kit

$

$

Not available

23

Poulan 530010225

Bar Clamp Guide Stud Assy.

$

$

Not available
