4200 - Poulan Chainsaw CARBURETOR BREAKDOWN Parts Diagram

Chainsaw

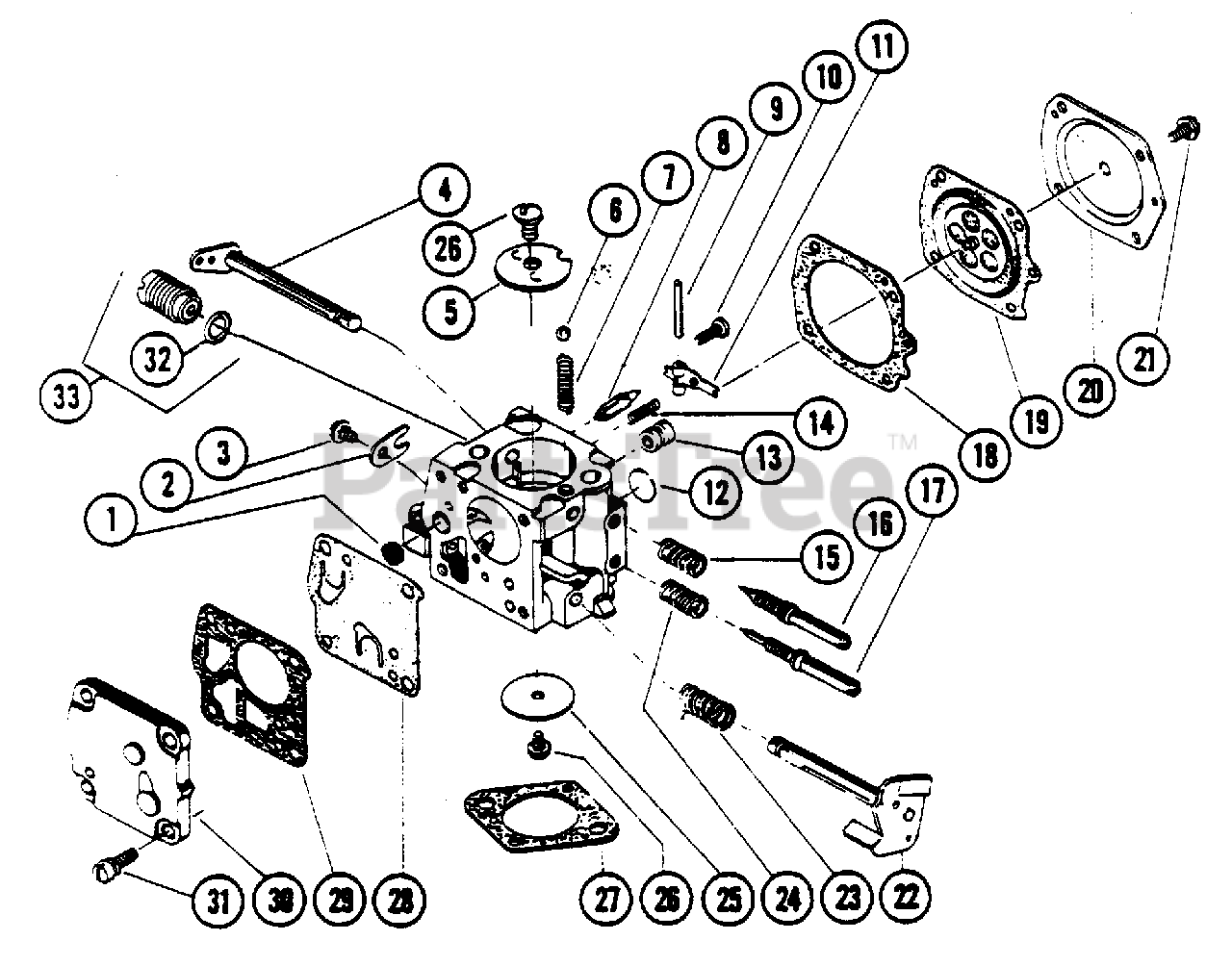

CARBURETOR BREAKDOWN Parts Diagram

  • Title

1

Poulan 530003780

Inlet Screen

$

$

Not available

2

Poulan 530003783

Throttle Shaft Clip

$

$

Not available

3

Poulan 530003784

Throttle Shaft Clip Ret. Screw

$

$

Not available

4

Poulan 530034106

Choke Shaft & Lever

$

$

Not available

5

Poulan 530034107

Choke Shutter

$

$

Not available

6

Poulan 530003765

Choke Friction Ball

$

$

Not available

7

Poulan 530003424

Choke Friction Spring

$

$

Not available

8

Poulan 530003779

Inlet Needle

$

$

Not available

9

Poulan 530003777

Inlet Pinion Pin

$7.49

$

Usually ships in 3-10 days

0

10

Poulan 530003778

Inlet Pinion Pin Ret. Screw

$

$

Not available

11

Poulan 530003776

Inlet Control Lever

$

$

Not available

12

Poulan 530003764

Body Channel Welch Plug (Large)

$

$

Not available

13

Poulan 530034105

Nozzle Check Valve

$

$

Not available

14

Poulan 530003727

Inlet Tension Spring

$

$

Not available

15

Poulan 530034109

High Speed Mixture Screw Spring (Blue)

$

$

Not available

16

Poulan 530034101

HIGH SPEED SCREW

$

$

Not available

Poulan 535034101

DRIVE WHEEL

$

$

Not available

17

Poulan 530034099

Idle Mixture Screw

$

$

Not available

18

Poulan 530003768

Diaphragm Gasket

$

$

Not available

19

Poulan 530003769

Diaphragm

$

$

Not available

20

Poulan 003770

Diaphragm Cover (Dana part number)

$

$

Not available

21

Poulan 530003717

Diaphragm Cover Screw & Lockwasher (4)

$

$

Not available

22

Poulan 530034102

Throttle Shaft & Lever

$

$

Not available

23

Poulan 530034103

Throttle Shaft Return Spring

$

$

Not available

24

Poulan 530034108

Idle Mixture Screw Spring (Yellow)

$

$

Not available

25

Poulan 530003416

Throttle Shutter

$

$

Not available

26

Poulan 530003784

Shutter Screw & Lockwasher

$

$

Not available

27

Poulan 530019082

Gasket

$

$

Not available

28

Poulan 530003771

Fuel Pump Diaphragm

$

$

Not available

29

Poulan 530003772

Fuel Pump Gasket

$3.99

$

In Stock, only 2 left!

0

30

Poulan 530003773

Fuel Pump Cover

$

$

Not available

31

Poulan 530003774

Fuel Pump Cover Ret. Screw & Lockwasher (4)

$

$

Not available

32

Poulan 530034024

Gov. Valve Gasket - (5200 only)

$

$

Not available

33

Poulan 530034112

Governor Valve Ass'y - (5200 only)

$

$

Not available

Poulan 530034022

Gasket Set

$

$

Not available

Poulan 530034097

Repair Parts Kit (Inc. 1,9,10,11,12,14,15, 19,23,24,26,28 & Gasket Set)

$

$

Not available

Poulan 530034093

Diaphragm & Gasket Set

$

$

Not available
