420 (UT-35016) - Homelite Snow Thrower Housing and Chute Parts Diagram

Snow Thrower

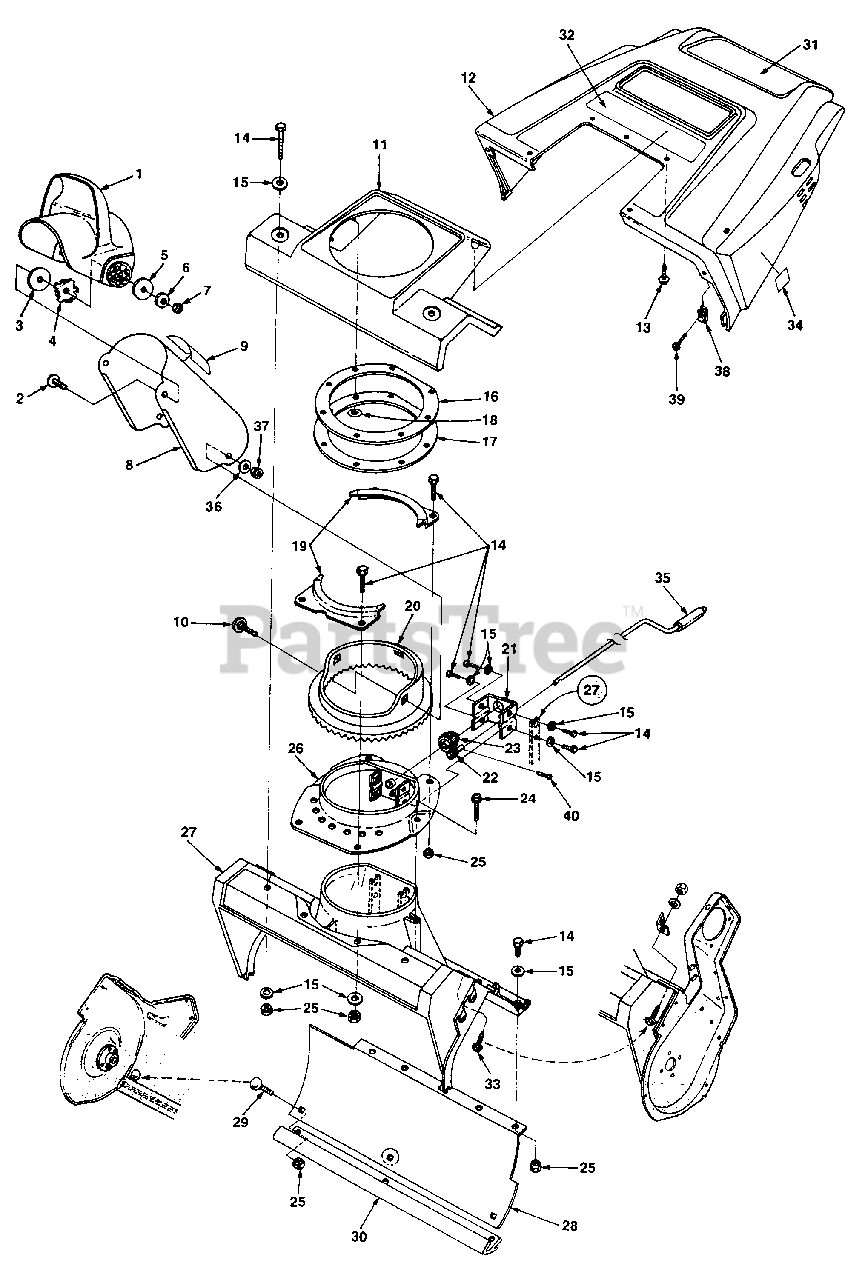

Housing and Chute Parts Diagram

  • Title

1

Homelite JA991555

DEFLECTOR

$

$

Currently unavailable

2

Homelite JA440082

BOLT- Carr. 5/16-18 x 1

$

$

Currently unavailable

3

Homelite JA991626

WASHER-Flat rubber

$

$

Currently unavailable

4

Homelite JA991556

WASHER- Octagon

$

$

Currently unavailable

5

Homelite JA455061

WASHER-Flat

$

$

Currently unavailable

6

Homelite JA991627

WASHER-Belleville

$

$

Currently unavailable

7

Homelite JA445775

NUT-Flange 5/16-18
(Superseded to UP06674)

$

$

Not available

8

Homelite JA991715

CHUTE

Note: Includes #9

$

$

Currently unavailable

9

Homelite JA991648

DECAL-Warning

$

$

Currently unavailable

10

Homelite JA440076

BOLT-Square neck 5/16-18 x 5/8

$

$

Currently unavailable

11

Homelite JA991565

COWLING-Transition

$

$

Currently unavailable

12

Homelite JA991808

COWLING-Upper

Note: Incl. #34, #35 & #37

$

$

Currently unavailable

13

Homelite 82409

SCREW- Thd. forming #10 x 5/8

$

$

Not available

14

Homelite JA400108

SCREW- Hex 1/4-20 x 3/4
(Superseded to 80052)

$

$

Not available

15

Homelite JA453023

WASHER- Plain 1/4
(Superseded to 678013001)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite JA991566

GASKET-Chute

$

$

Currently unavailable

17

Homelite JA991692

RETAINER-Gasket

$

$

Currently unavailable

18

Homelite JA445524

NUT-Push on

$

$

Currently unavailable

19

Homelite JA991694

RETAINER

$

$

Currently unavailable

20

Homelite JA991551

BASE-Chute

$

$

Currently unavailable

21

Homelite JA991695

BRACKET-Gear

$

$

Not available

22

Homelite JA991811

DRIVE-Gear

$

$

Currently unavailable

23

Homelite JA991559

GEAR-Idler

$

$

Currently unavailable

24

Homelite JA991629

SCREW-Plastite

$

$

Currently unavailable

25

Homelite JA445768

NUT-Flange 1/4-20

$

$

Not available

26

Homelite JA991693

BASE-Chute

$

$

Currently unavailable

27

Homelite JA991549

HOUSING-Auger

$

$

Currently unavailable

28

Homelite JA991609

SCOOP

$

$

Currently unavailable

29

Homelite JA441606

BOLT- 1/4 x 3/4

$

$

Not available

30

Homelite JA991601

SCRAPER

$

$

Not available

31

Homelite JA991675

DECAL-Console

$

$

Currently unavailable

32

Homelite JA991681

DECAL-420

$

$

Currently unavailable

Homelite JA991682

DECAL-420E

$

$

Currently unavailable

33

Homelite JA440038

BOLT-Carr. 1/4-20 x 1/2

$

$

Not available

34

Homelite JA339467

DECAL
(Superseded to JA992354)

$

$

Not available

35

Homelite JA991604

SHAFT & HANDLE

$

$

Currently unavailable

36

Homelite JA446134

WASHER-Lock 5/16
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

37

Homelite JA443106

NUT-Hex 5/16-18
(Superseded to 81018)

$

$

Not available

38

Homelite JA445277

NUT-Speed

$4.99

$

Usually ships in 3-7 days

0

39

Homelite JA409718

SCREW- 1O x 1 1/2

$2.49

$

Usually ships in 3-7 days

0

40

Homelite JA460028

PIN- Cotter 1/8 dia.

$

$

Currently unavailable
