420 - Husqvarna Automower Robotic Lawn Mower (Original) WHEELS & TIRES Parts Diagram

Automower Robotic Lawn Mower

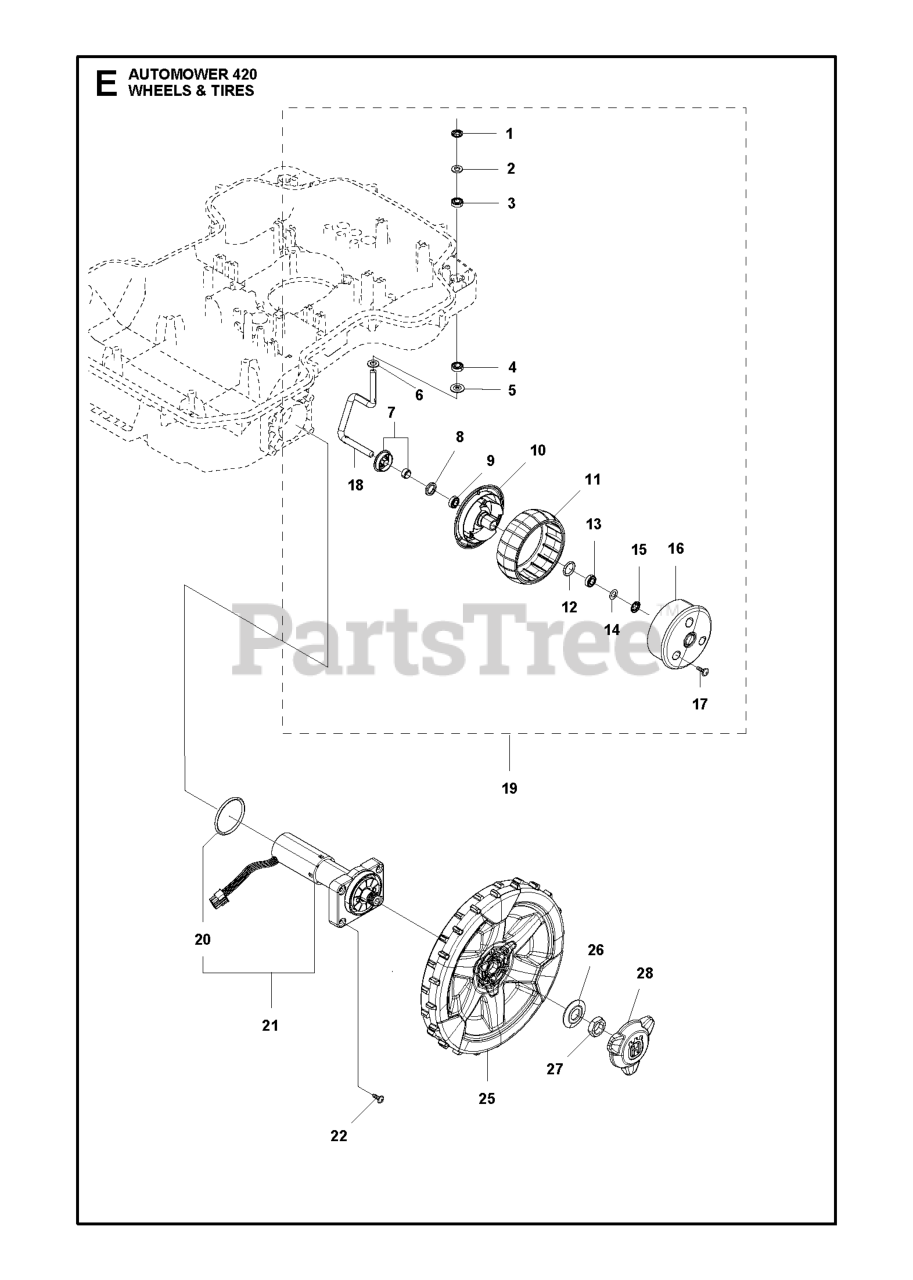

WHEELS & TIRES Parts Diagram

  • Title

1

Husqvarna 576019302

LOCKWASHER PUSH-ON TYPE P 8 BV

Note: Lock Washer

$4.99

$

In Stock, Qty 9

0

2

Husqvarna 580764601

WASHER DIN 988 13X8X0.5

Note: Washer

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 580605101

BALL BEARING SINGLE ROW S688

Note: Ball Bearing

$7.99

$

In Stock, only 2 left!

0

3

Husqvarna 597795601

NEEDS DESCRIPTION

Note: Tube 50 pcs

$

$

Currently unavailable

4

Husqvarna 597795601

NEEDS DESCRIPTION

Note: Tube 50 pcs

$

$

Currently unavailable

4

Husqvarna 580605101

BALL BEARING SINGLE ROW S688

Note: Ball Bearing

$7.99

$

In Stock, only 2 left!

0

5

Husqvarna 535087803

WASHER FRONT WHEEL CENTER HOLE

Note: Washer

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 580764601

WASHER DIN 988 13X8X0.5

Note: Washer

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 581621501

SHIELD KIT

Note: Sheild KIT

$7.99

$

In Stock, only 3 left!

0

8

Husqvarna 580487101

SEALING 12X18X3

Note: Sealing

$5.99

$

In Stock, only 3 left!

0

9

Husqvarna 580605101

BALL BEARING SINGLE ROW S688

Note: Ball Bearing

$7.99

$

In Stock, only 2 left!

0

9

Husqvarna 597795601

NEEDS DESCRIPTION

Note: Tube 50 pcs

$

$

Currently unavailable

10

Husqvarna 579457101

WHEEL FRONT WHEEL INSIDE

Note: Wheel Inside

$5.99

$

In Stock, only 1 left!

0

11

Husqvarna 574449801

WHEEL RUBBER TYRE

Note: Tire

$9.49

$

Usually ships in 3-10 days

0

12

Husqvarna 580445101

O-RING 2,62X15,54

Note: O-ring

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 580605101

BALL BEARING SINGLE ROW S688

Note: Ball Bearing

$7.99

$

In Stock, only 2 left!

0

13

Husqvarna 597795601

NEEDS DESCRIPTION

Note: Tube 50 pcs

$

$

Currently unavailable

14

Husqvarna 580764601

WASHER DIN 988 13X8X0.5

Note: Washer

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 576019302

LOCKWASHER PUSH-ON TYPE P 8 BV

Note: Lock Washer

$4.99

$

In Stock, Qty 9

0

16

Husqvarna 579457201

WHEEL FRONT WHEEL OUTSIDE

Note: Wheel Outside

$6.99

$

Usually ships in 3-10 days

0

17

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 17

0

18

Husqvarna 580336101

SPINDLE SPINDLE FRONT WHEEL RI
(Superseded to 580336102)

Note: Spindle

$11.99

$

Usually ships in 3-10 days

0

19

Husqvarna 581621401

WHEEL KIT FRONT

Note: Front Wheel KIT

$

$

Not available

20

Husqvarna 580443902

O-RING LIGHT GREY

Note: O-ring

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 581621306

NEEDS DESCRIPTION

Note: Wheel Motor ASSY

$

$

Not available

22

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 575543314

SCREW 14MM

Note: For 2016-02 models

$4.99

$

In Stock, Qty 17

0

25

Husqvarna 582280201

WHEEL ASSY D249 HVA LIGHT GREY

Note: Rear Wheel

$34.99

$

Usually ships in 3-10 days

0

26

Husqvarna 586210601

WASHER WASHER REAR WHEEL 16X40

Note: Spring Washer

$6.99

$

Usually ships in 3-10 days

0

27

Husqvarna 731432401

HEXAGON THIN NUT

Note: Thin Nut

$7.99

$

Usually ships in 3-10 days

0

28

Husqvarna 579505502

HUB CAP REAR WHEEL NO CENTER P

Note: Hub Cap

$5.99

$

Usually ships in 3-10 days

0
